Module Communications Network

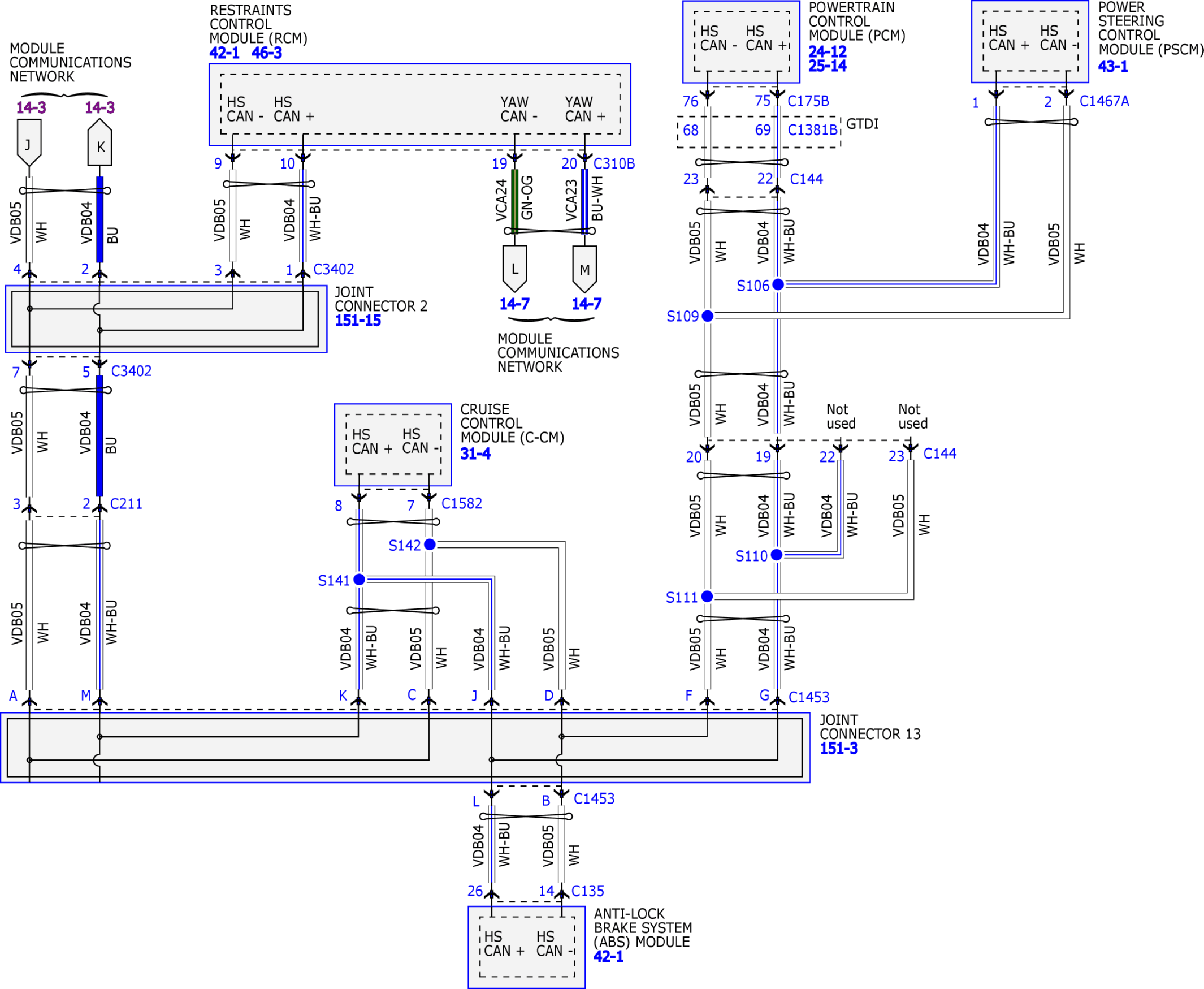

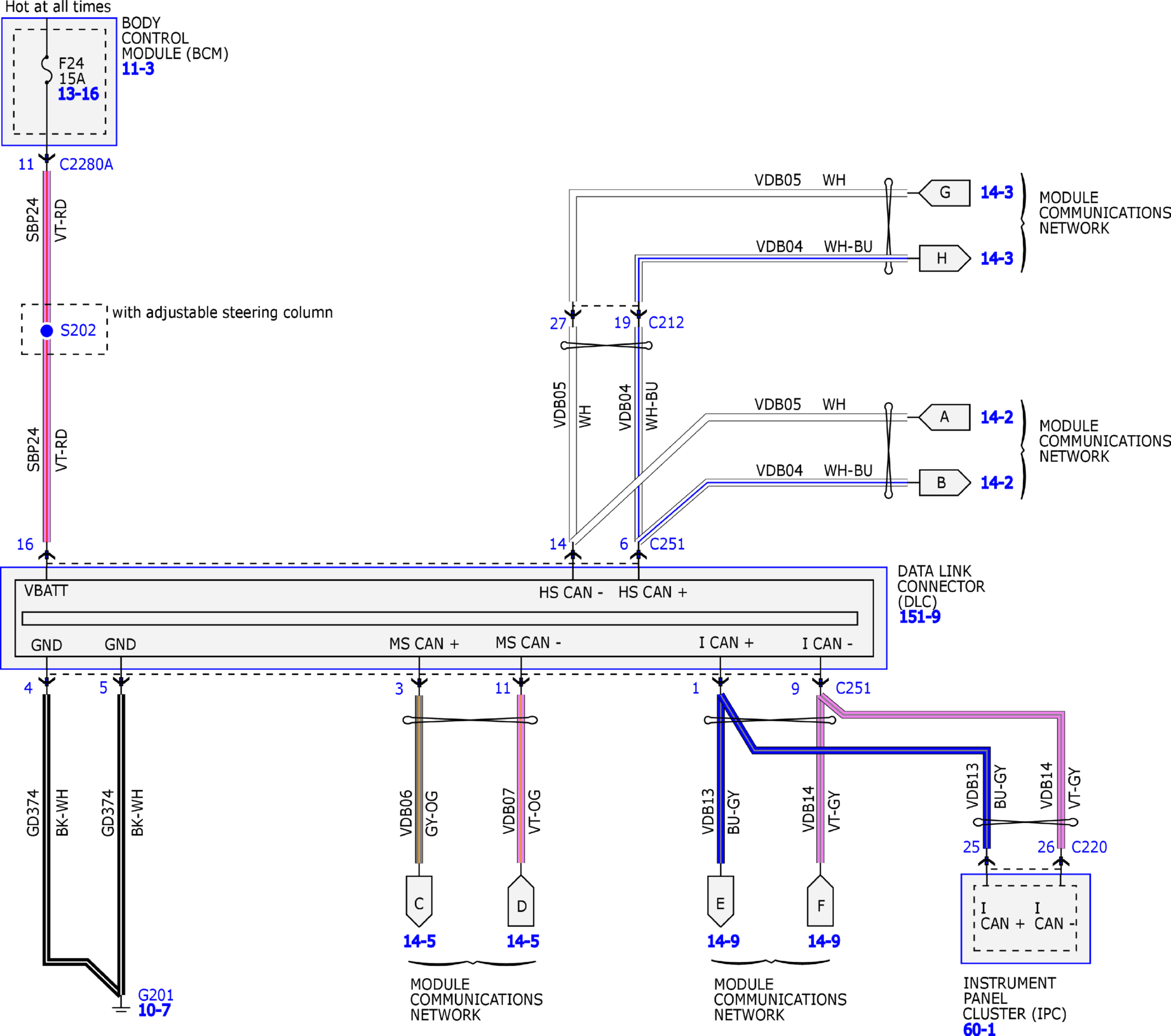

Fig 1: Module Communication Network System Wiring Diagram (1 Of 10)

Courtesy of FORD MOTOR COMPANY

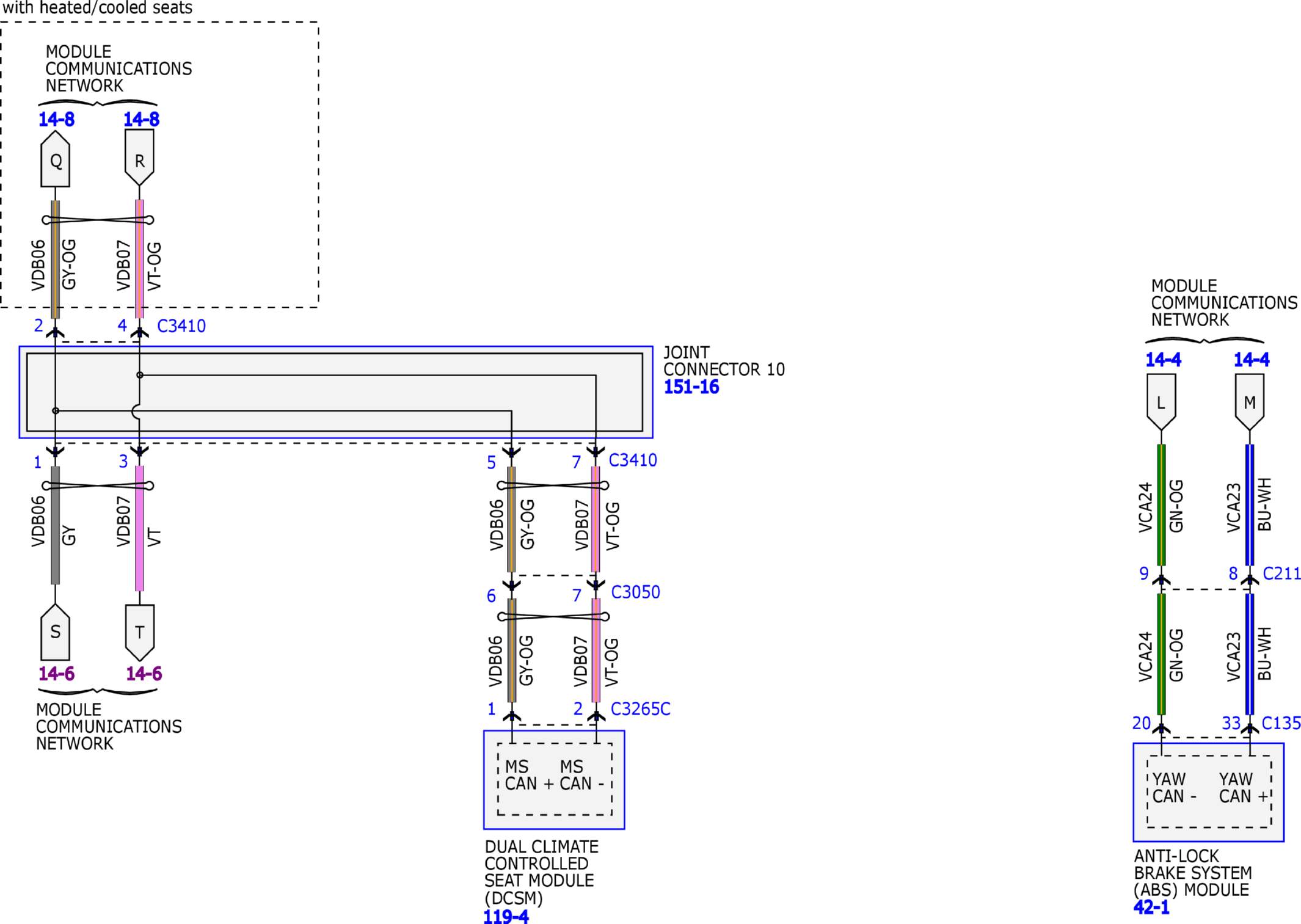

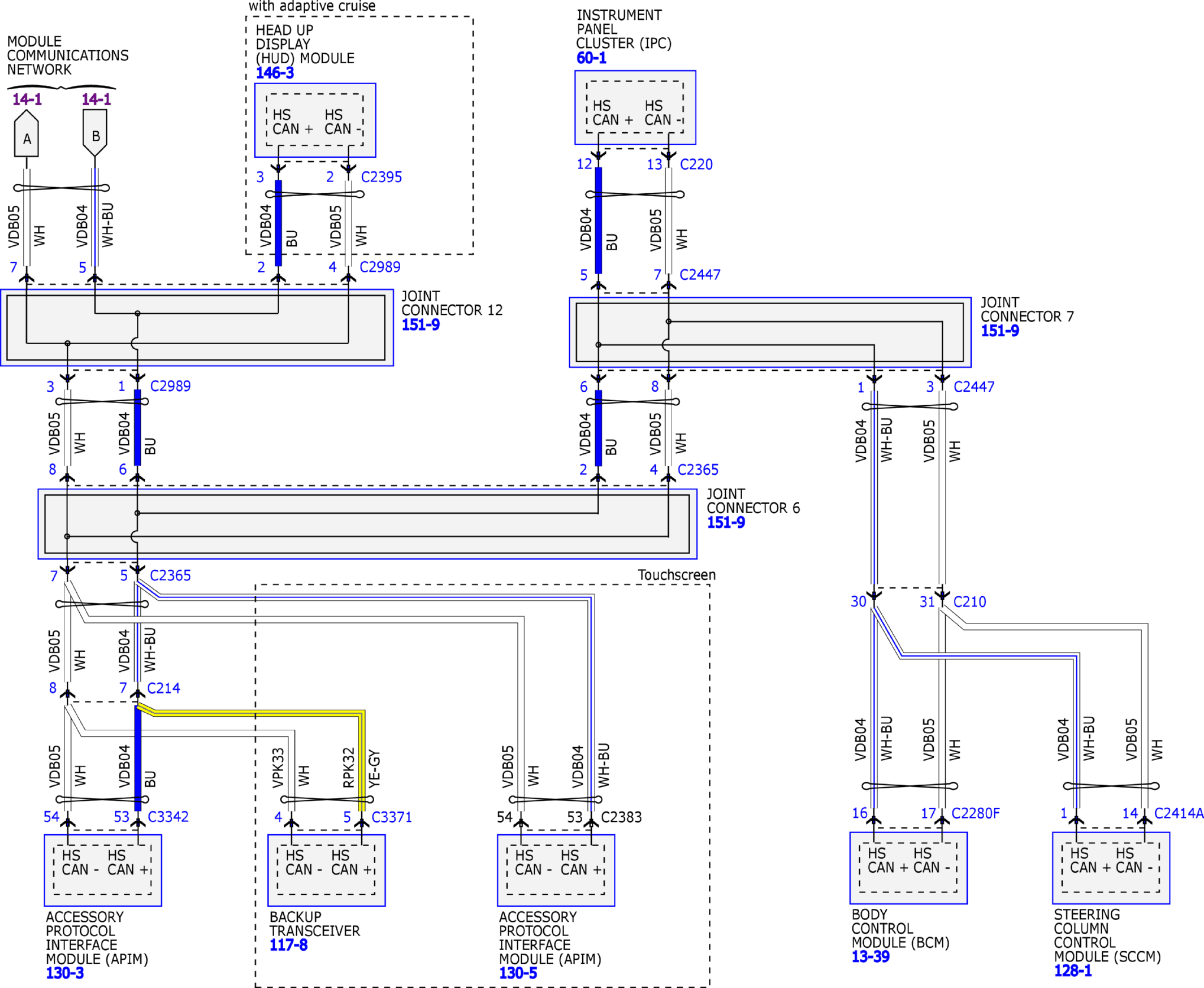

Fig 2: Module Communication Network System Wiring Diagram (2 Of 10)

Courtesy of FORD MOTOR COMPANY

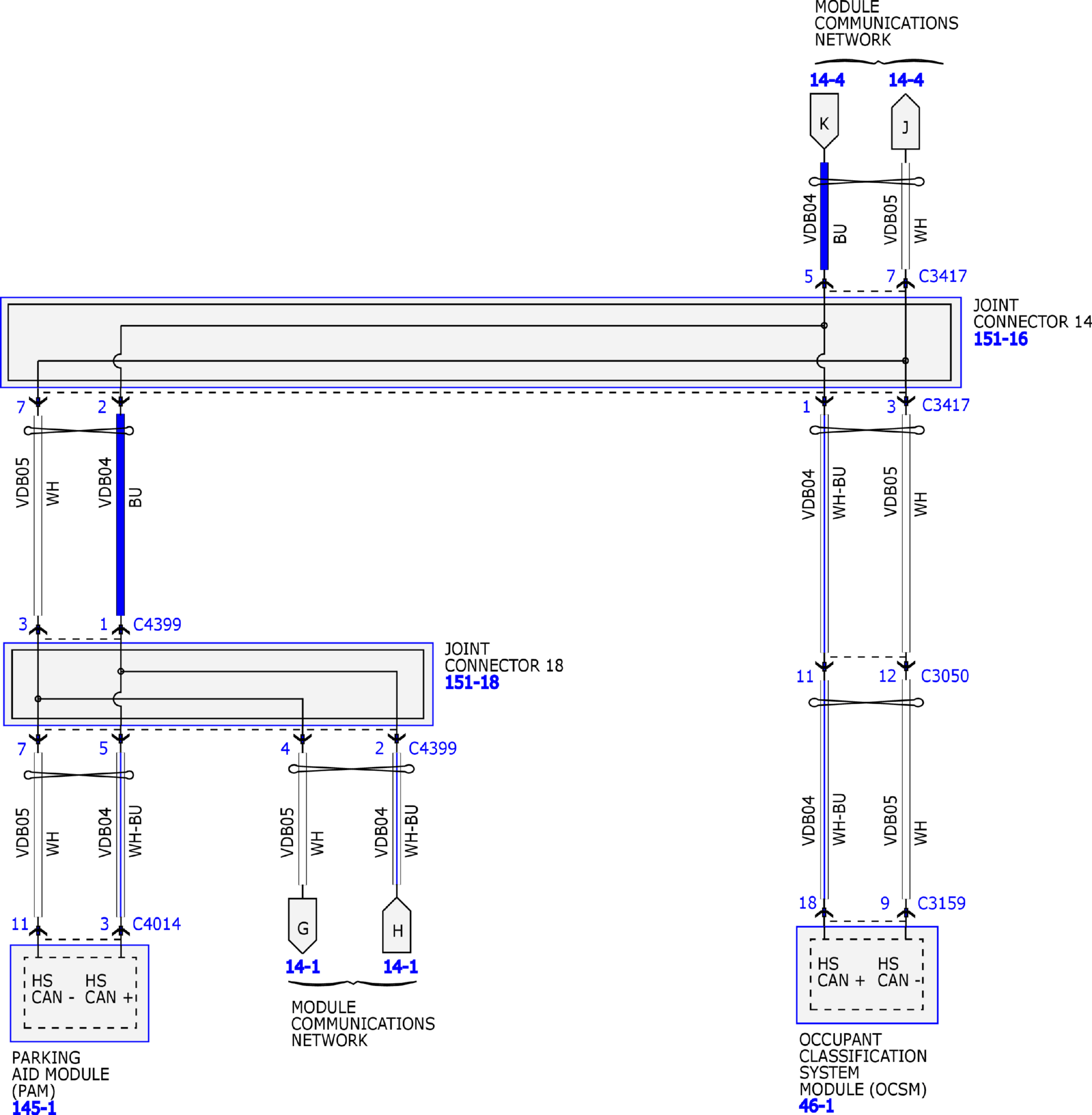

Fig 3: Module Communication Network System Wiring Diagram (3 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 4: Module Communication Network System Wiring Diagram (4 Of 10)

Courtesy of FORD MOTOR COMPANY

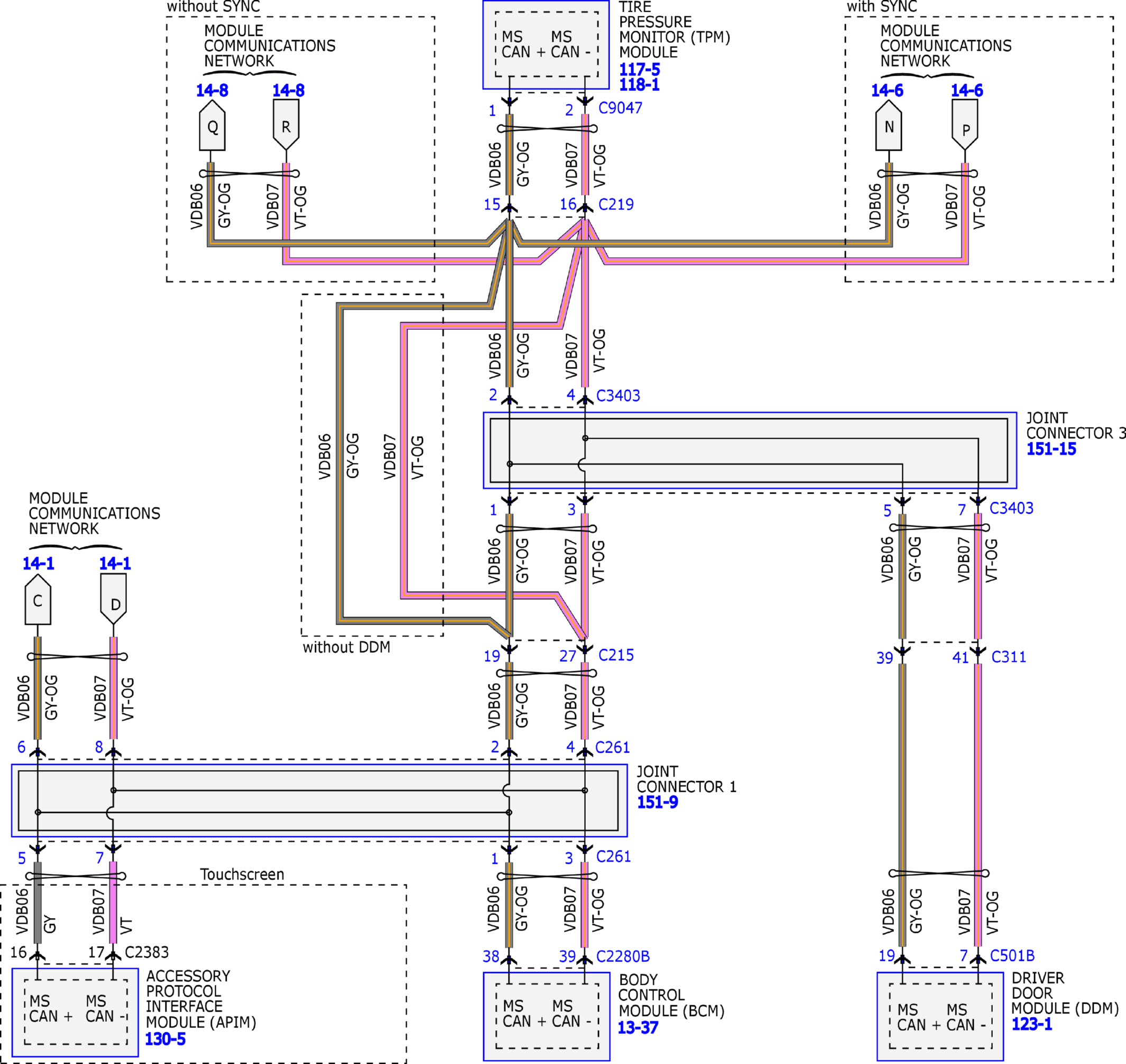

Fig 5: Module Communication Network System Wiring Diagram (5 Of 10)

Courtesy of FORD MOTOR COMPANY

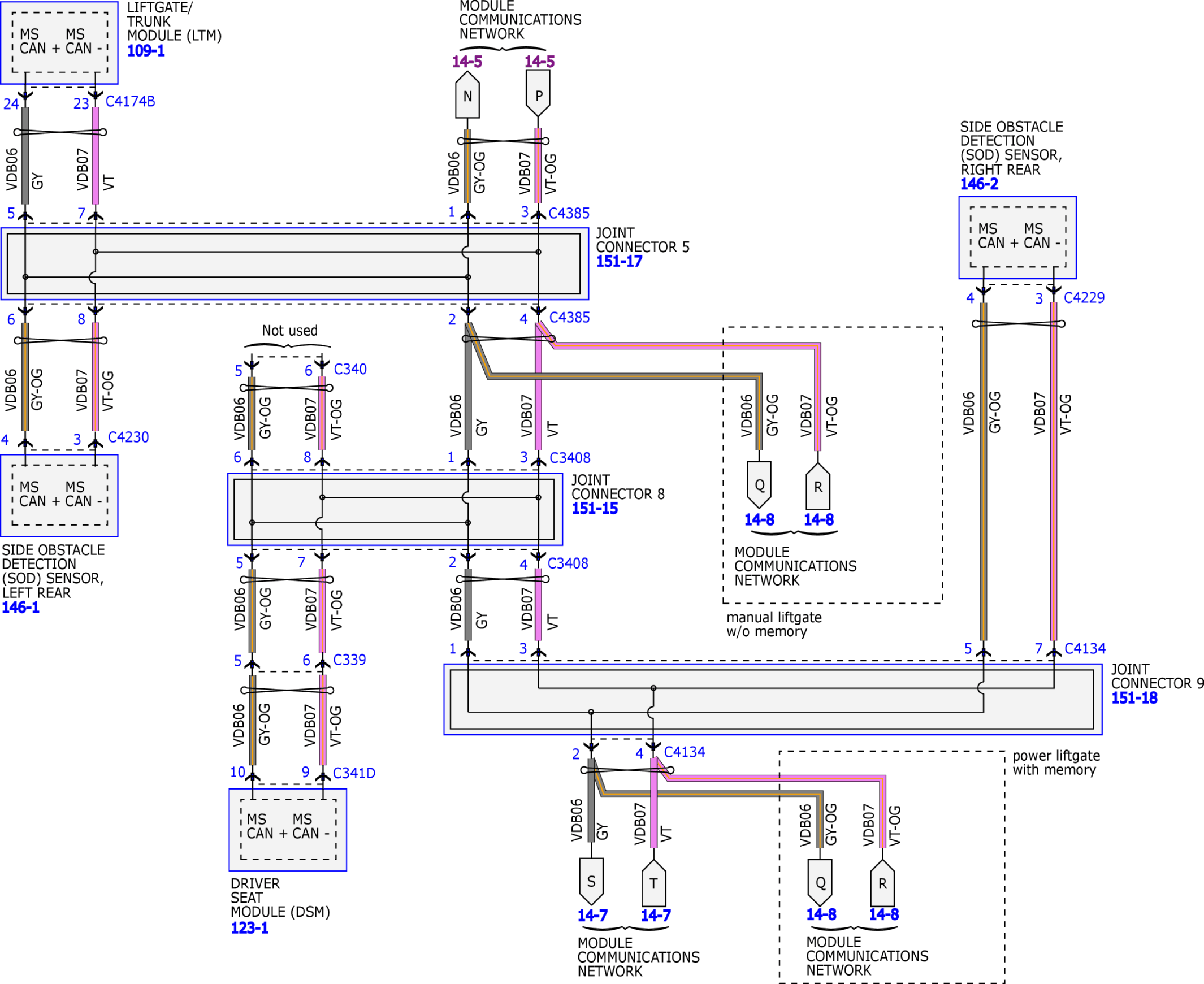

Fig 6: Module Communication Network System Wiring Diagram (6 Of 10)

Courtesy of FORD MOTOR COMPANY

Fig 7: Module Communication Network System Wiring Diagram (7 Of 10)

Courtesy of FORD MOTOR COMPANY

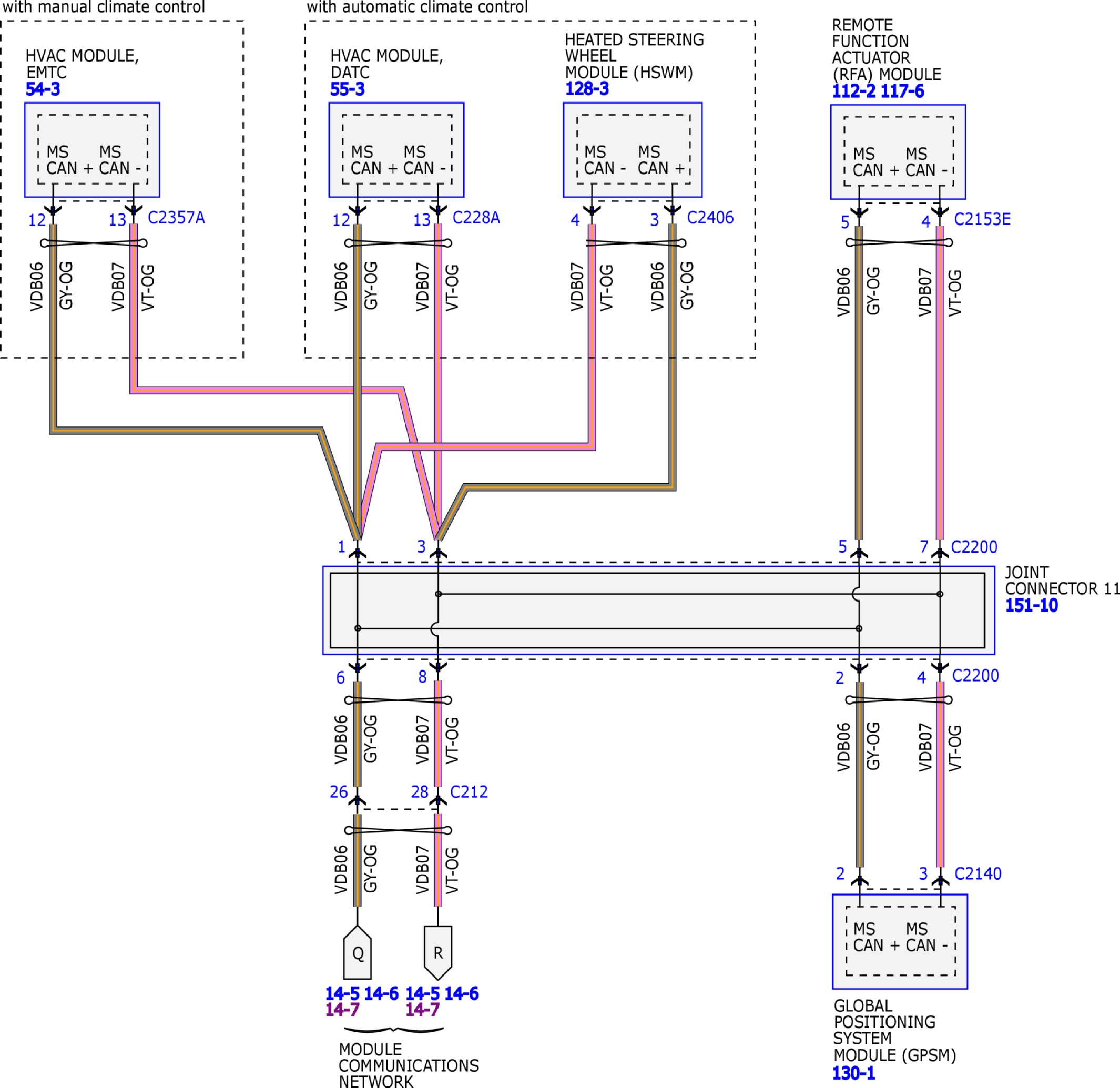

Fig 8: Module Communication Network System Wiring Diagram (8 Of 10)

Courtesy of FORD MOTOR COMPANY

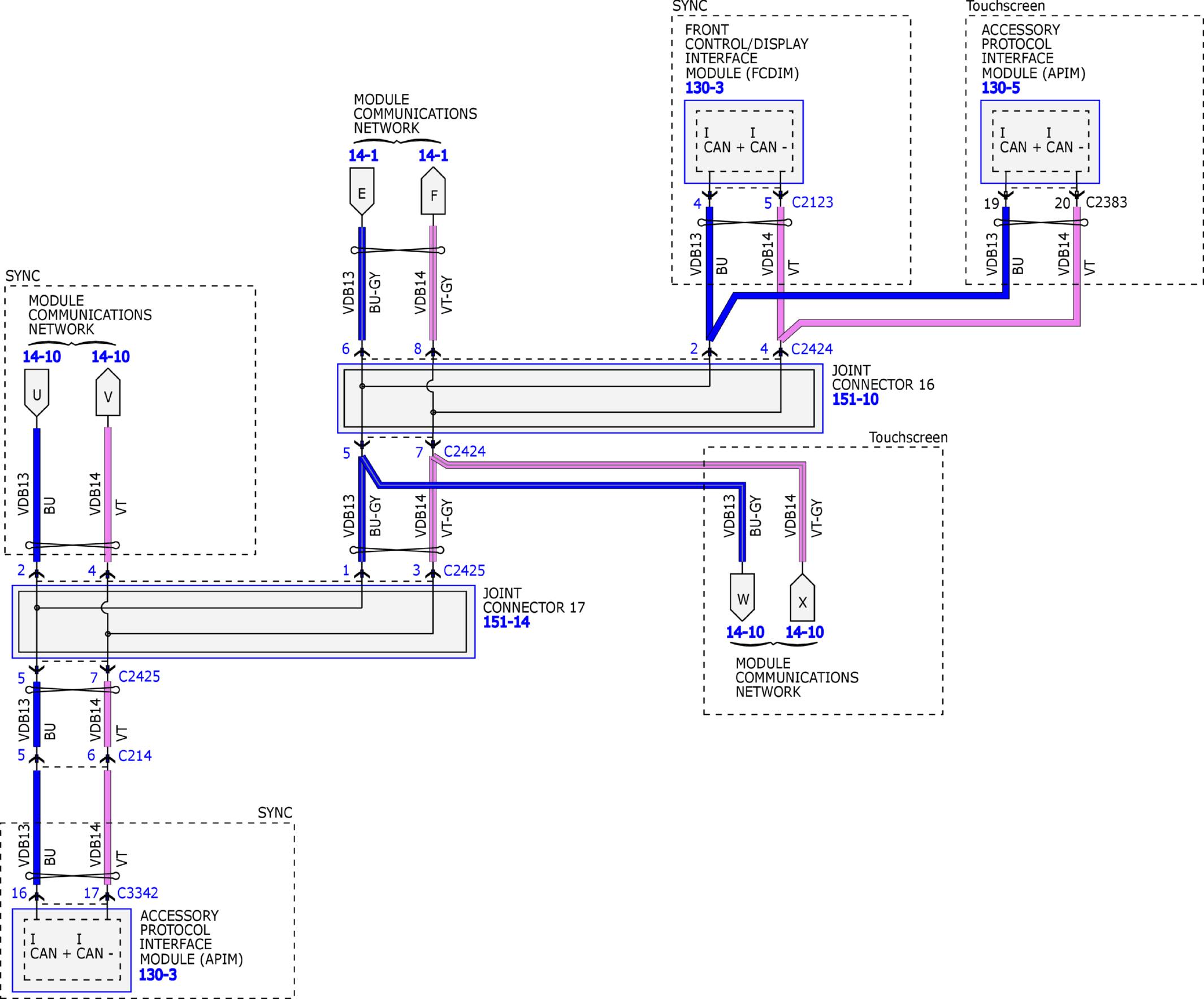

Fig 9: Module Communication Network System Wiring Diagram (9 Of 10)

Courtesy of FORD MOTOR COMPANY

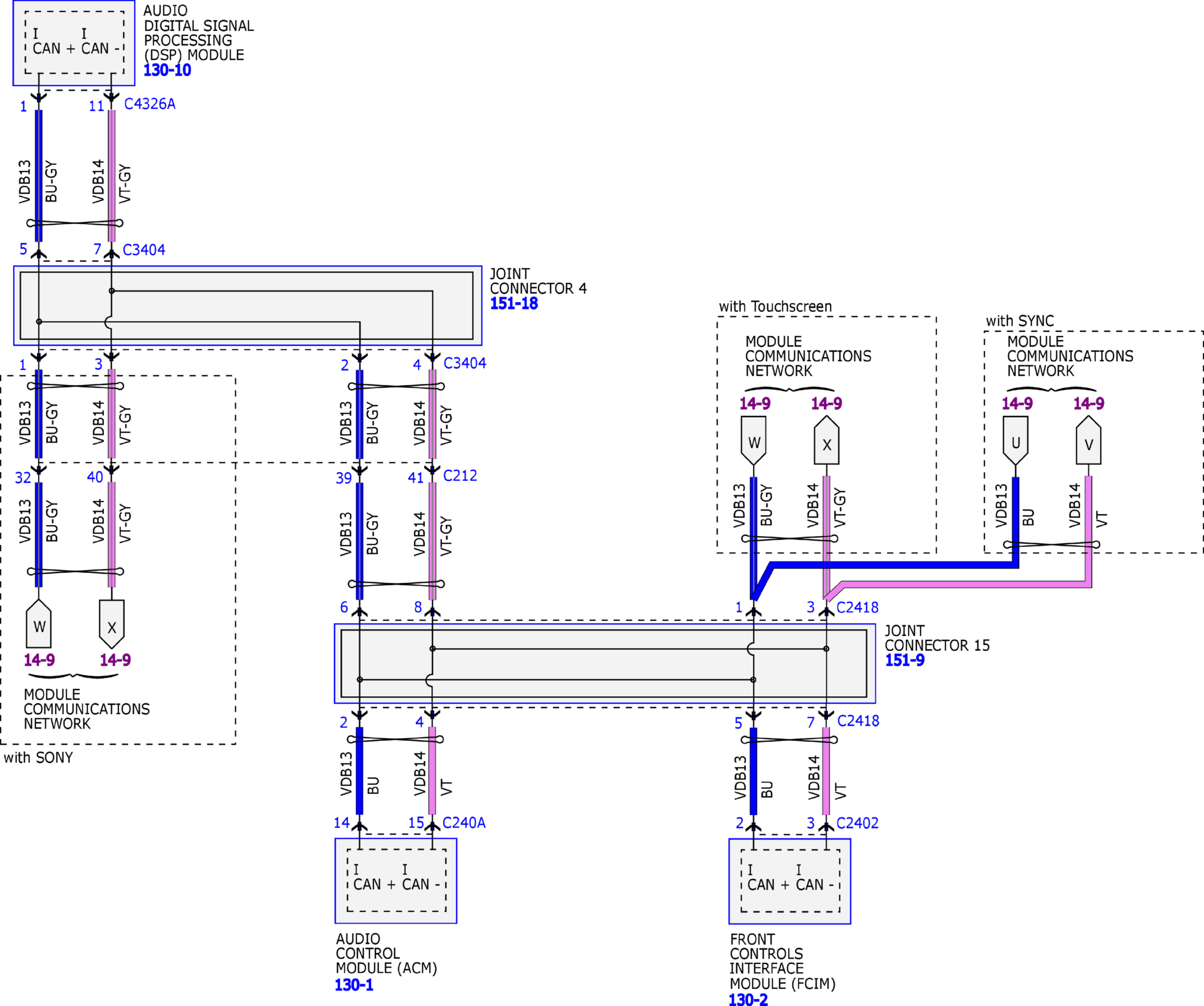

Fig 10: Module Communication Network System Wiring Diagram (10 Of 10)

Courtesy of FORD MOTOR COMPANY
