Transfer Case Control Module (TCCM): Removal
- 1.

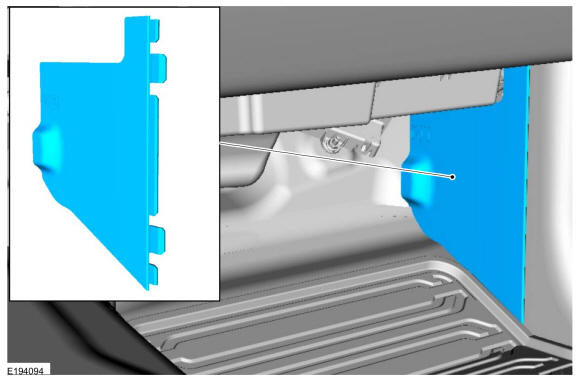

Remove the CJB cover.
 Courtesy of FORD MOTOR COMPANY
|
- 2.

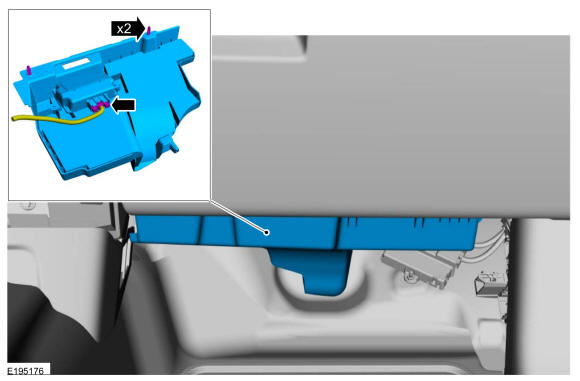

Remove and disconnect the lower access panel.
 Courtesy of FORD MOTOR COMPANY
|
- 3.

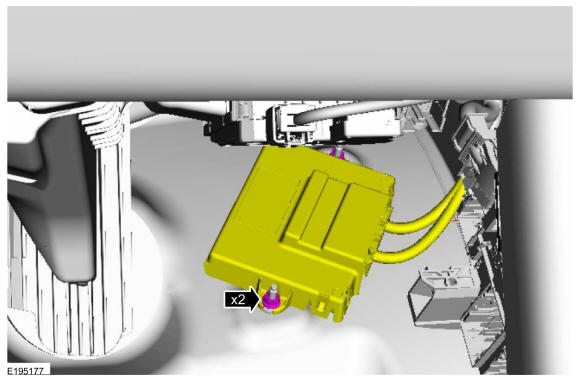

NOTE:
The TCCM has slotted mounting holes. It is not necessary to remove the LHTCCM nut when removing the TCCM.
Loosen the LHTCCM nut and remove the RHTCCM nut.
Torque: 62 lb.in (7 Nm)
 Courtesy of FORD MOTOR COMPANY
|
- 4.

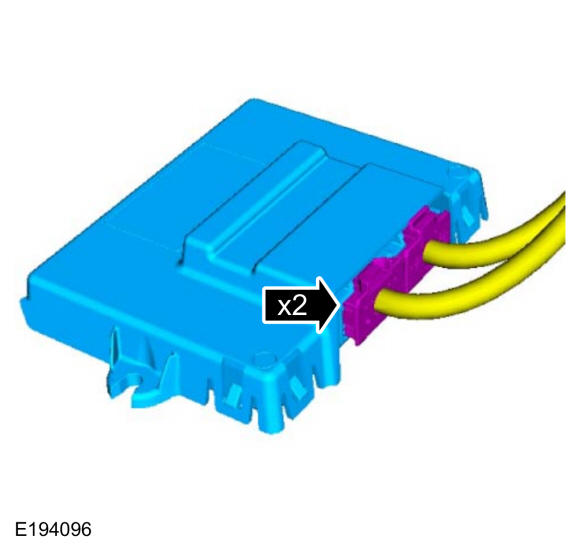

Disconnect the electrical connectors and remove the TCCM.
 Courtesy of FORD MOTOR COMPANY
|
