Selector Lever Cable: Installation

• 1.

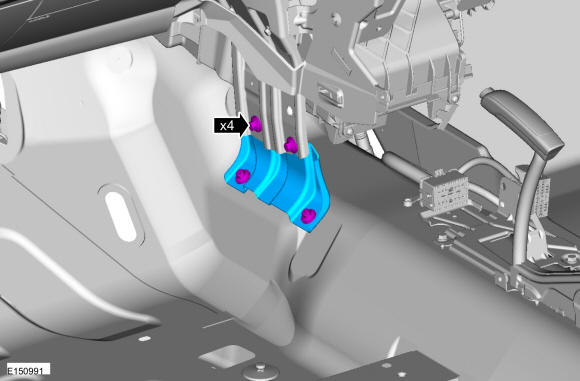

  Position the selector lever cable to the engine compartment through the floor and install the selector lever cable to the passenger compartment. Install the nuts.

  Torque:

  80 lb.in (9 Nm)

Courtesy of FORD MOTOR COMPANY

• 2.

  Install the LH side console housing support bracket.

  Torque:

  18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

• 3.

  Connect the selector lever cable to the selector lever assembly.

Courtesy of FORD MOTOR COMPANY

• 4.

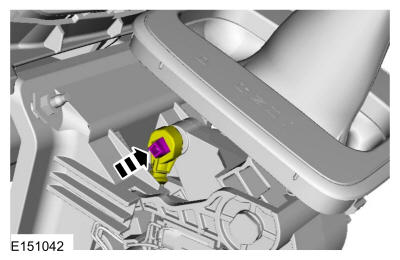

  Install the selector lever cable retainer.

  Torque:

  62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

• 5.

  Install the floor console. REFER to: Floor Console

• 6.

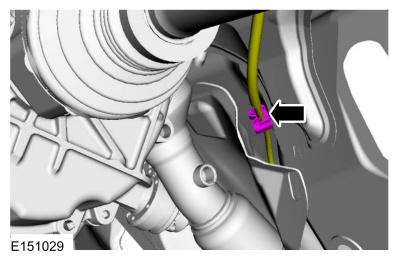

  Connect the selector lever cable retainer.

Courtesy of FORD MOTOR COMPANY

AWD vehicles

• 7.

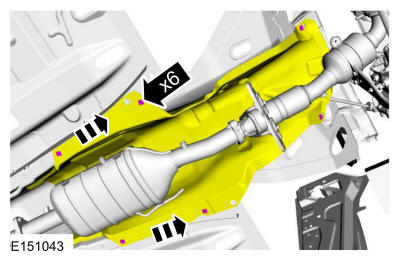

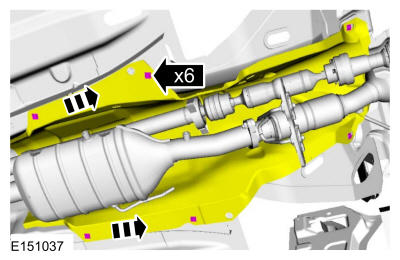

  Position the front floor exhaust system heat shield and install the nuts.

Courtesy of FORD MOTOR COMPANY

• 8.

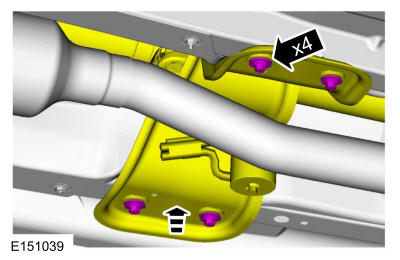

  Position the exhaust pipe mounting bracket and install the bolts.

  Torque:

  18 lb.ft (25 Nm)

Courtesy of FORD MOTOR COMPANY

FWD vehicles

• 9.

  Position the front floor exhaust system heat shield and install the nuts.

Courtesy of FORD MOTOR COMPANY

All vehicles

• 10.

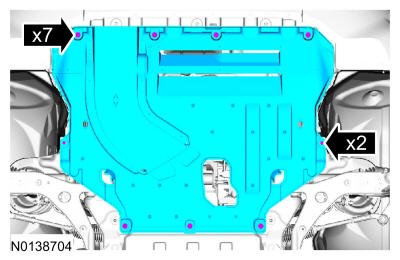

  Install the engine undershield and the retainers.

Courtesy of FORD MOTOR COMPANY

• 11.

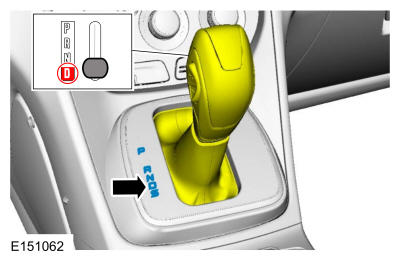

  Position the selector lever in D.

Courtesy of FORD MOTOR COMPANY

• 12.

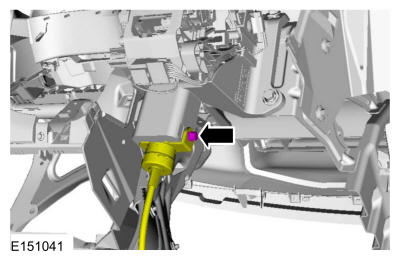

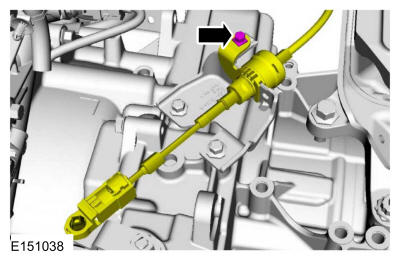

  Install the selector lever cable bracket bolt.

  Torque:

  62 lb.in (7 Nm)

Courtesy of FORD MOTOR COMPANY

• 13.

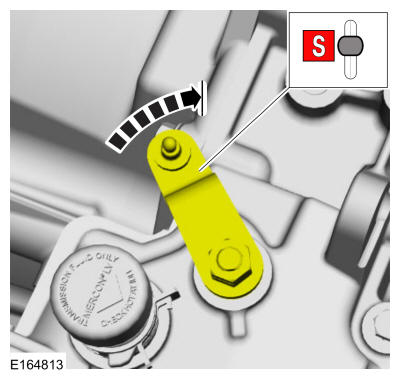

  Rotate the manual lever clockwise until it stops.

Courtesy of FORD MOTOR COMPANY

• 14.

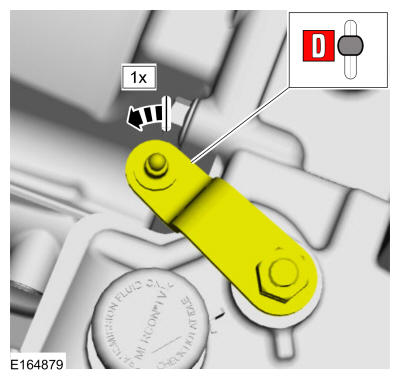

  Rotate the manual control lever counterclockwise 1 detent into D.

Courtesy of FORD MOTOR COMPANY

• 15.

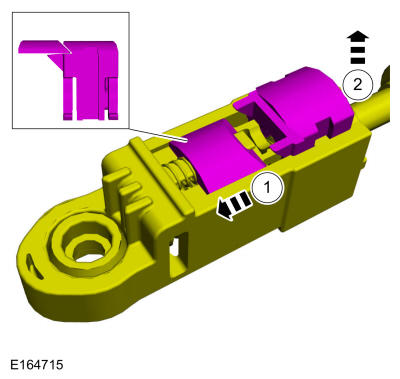

  Unlock the adjuster.

  • 1.

    Slide the spring-loaded tab forward.

  • 2.

    Lift up the adjuster lock.

Courtesy of FORD MOTOR COMPANY

• 16.

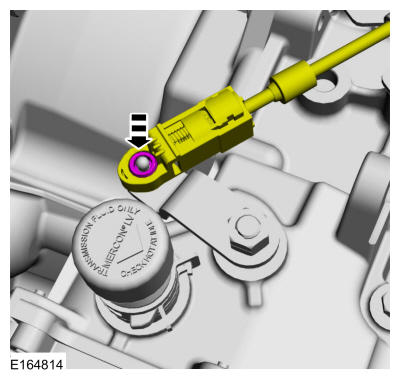

  Connect the selector lever cable to the manual control lever.

Courtesy of FORD MOTOR COMPANY

• 17.

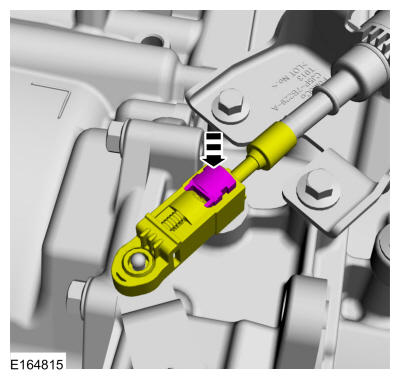

  Slide the adjuster tab in place to lock the selector lever cable.

Courtesy of FORD MOTOR COMPANY

AWD vehicles

• 18.

  Install the battery tray. REFER to: Battery Tray

FWD vehicles

• 19.

  Install the air cleaner. REFER to: Air Cleaner - 1.6L EcoBoost REFER to: Air Cleaner - 2.0L EcoBoost REFER to: Air Cleaner - 2.5L Duratec

All vehicles

• 20.

  Verify that the engine starts in P and N only and that the reverse lamps illuminate in R.
