Automatic Torque Coupling Configuration Bar Code Label

WARNING: This page is about a different variant/trim than selected.

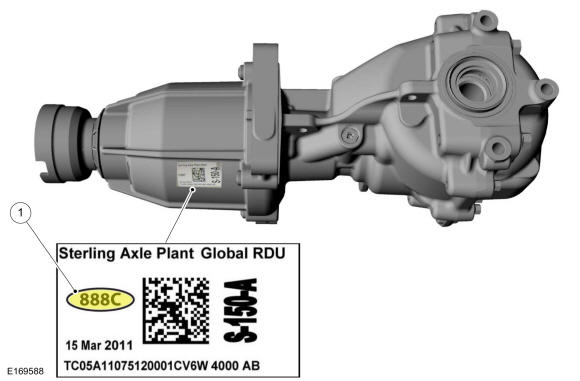

GFD50472Courtesy of FORD MOTOR COMPANY
Item Description
1 Active Torque Coupling (ATC) solenoid bar code label
