Window Control Switch - With Door Modules

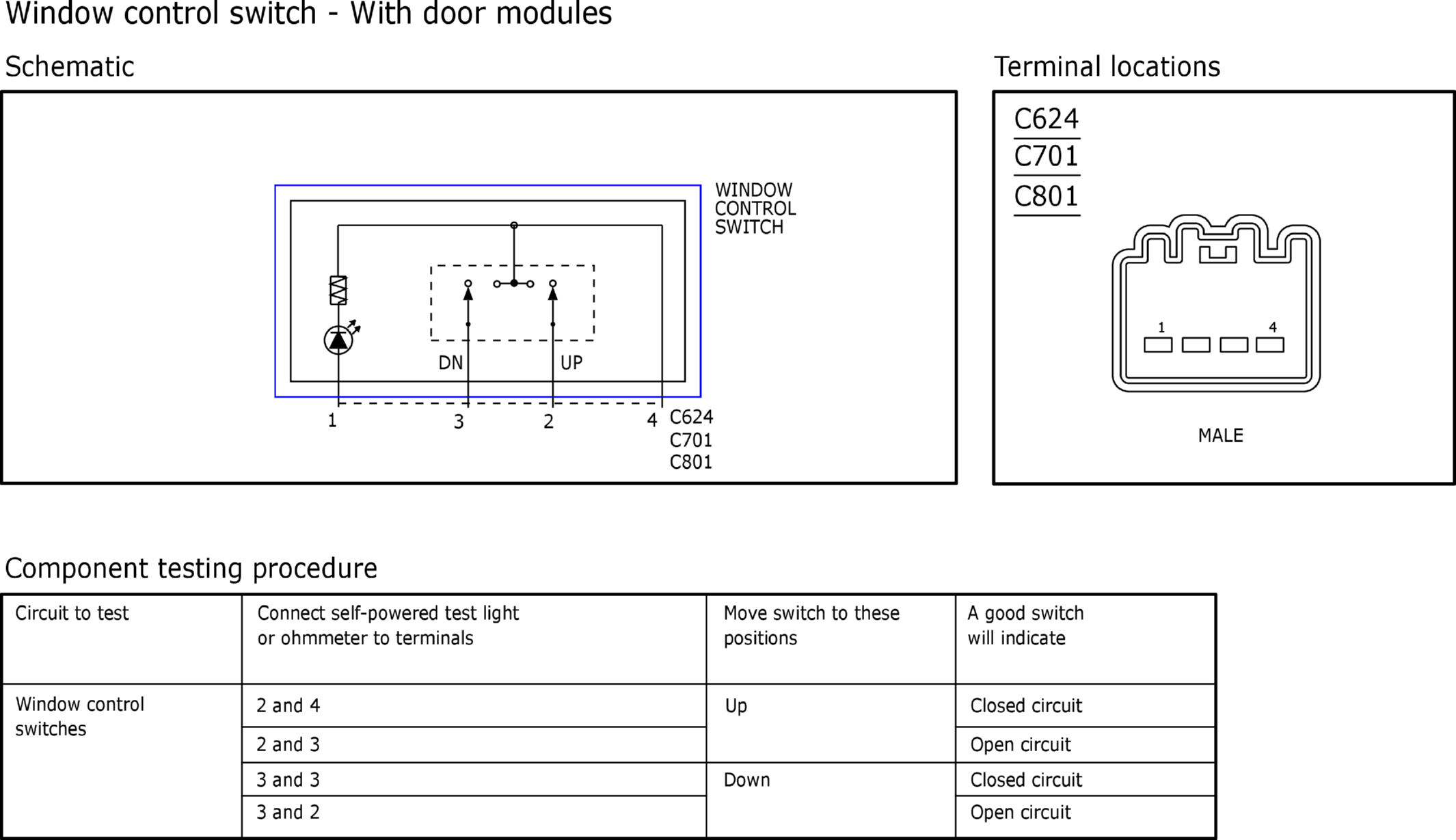

Fig 1: Window Control Switch - With Door Modules
GFDW48245Courtesy of FORD MOTOR COMPANY
