Brake Shift Interlock Actuator Manual Override

Activation

• 1.

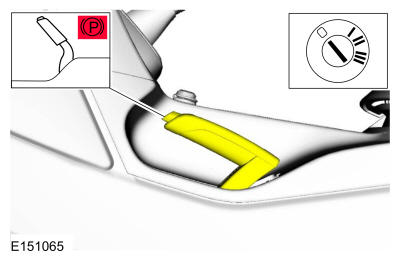

  NOTE: This vehicle is equipped with a brake shift interlock feature that prevents the selector lever from being moved out of P when the ignition is in the ON position unless the brake pedal is applied.

  If the selector lever cannot be moved out of the P position when the ignition is in the ON position and the brake pedal is applied: Before beginning this procedure check for BSIA DTCs. If BSIA DTCs are present, Refer to: External Controls .

Courtesy of FORD MOTOR COMPANY

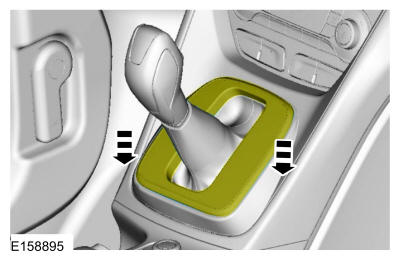

• 2.



Courtesy of FORD MOTOR COMPANY

• 3.



  • 2.

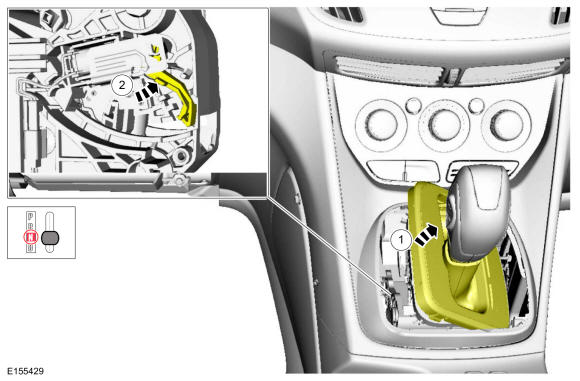

    Rotate the tab located on the BSIA lever counterclockwise, apply the brake, press the button on the selector lever.

Courtesy of FORD MOTOR COMPANY

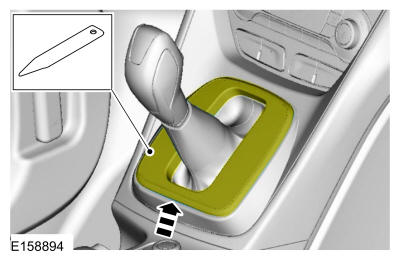

• 4.

  Start the vehicle.

Courtesy of FORD MOTOR COMPANY
