Exterior Rear View Mirror Switch

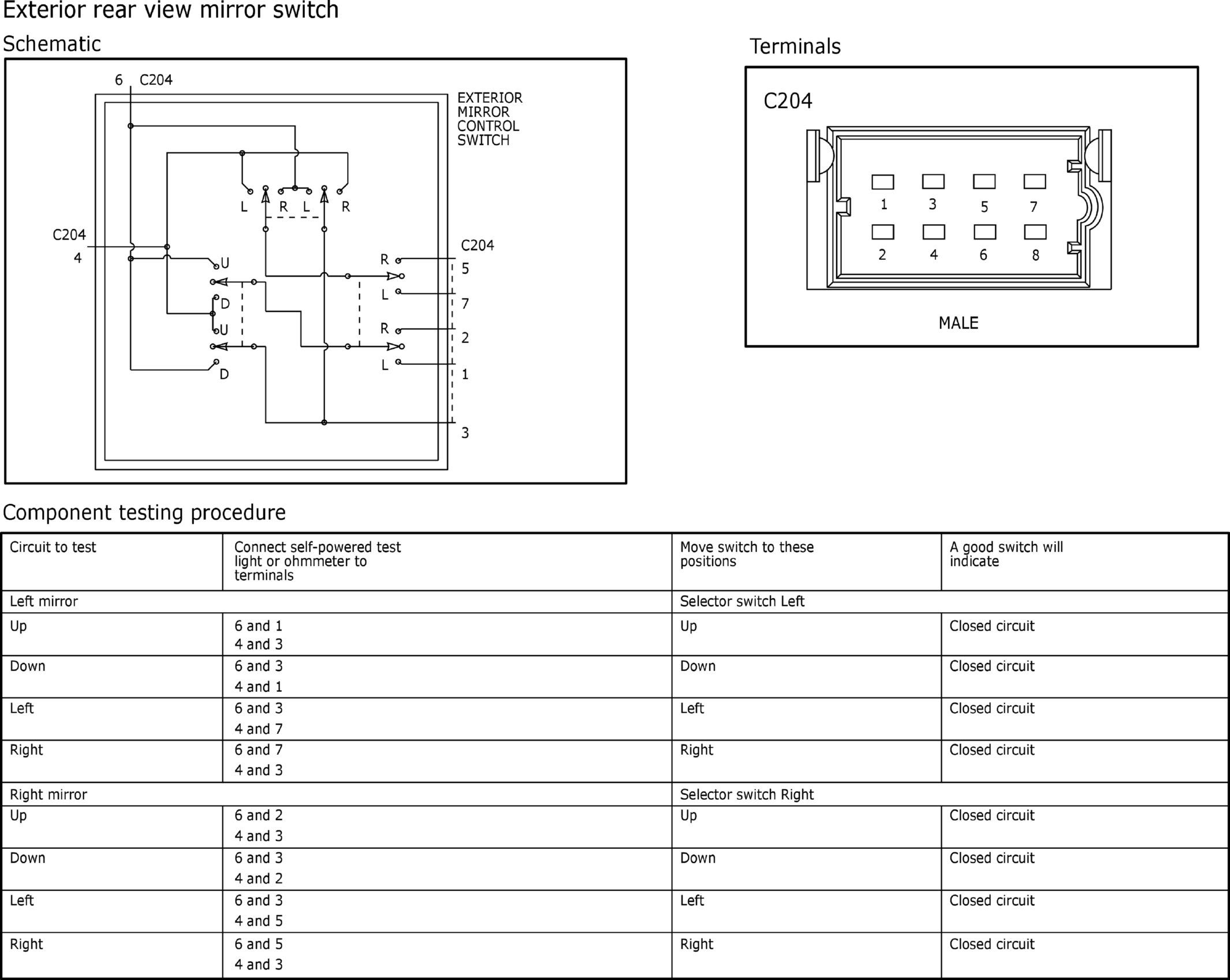

Fig 1: Exterior Rear View Mirror Switch
Courtesy of FORD MOTOR COMPANY
