Third Row Single Seat Frame: Removal

WARNING: This page is about a different car, the 2016 Ford Transit-350 HD, 2016 Ford Transit-350, 2016 Ford Transit-250, and 2016 Ford Transit-150. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Removal steps in this procedure may contain installation details.

1.

Remove the third row single seat cover and foam as an assembly. Refer to: Third Row Single Seat Cushion Cover .

2.

Remove the third row single seat backrest. Refer to: Third Row Single Seat Backrest - Vehicles With: Rear Seat Recliner . Refer to: Third Row Single Seat Backrest - Vehicles Without: Rear Seat Recliner .

3.

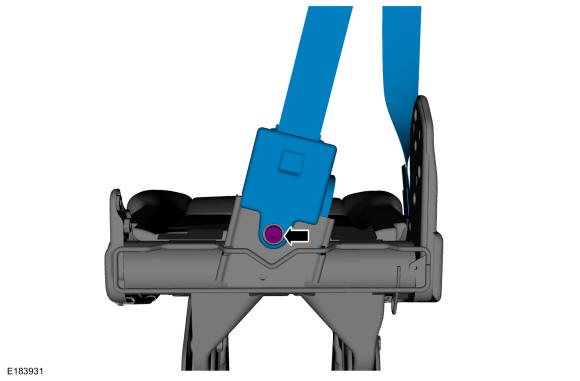

Remove the bolt and the safety belt retractor.
Torque: 30 lb.ft (40 Nm)

GFD146920

Courtesy of FORD MOTOR COMPANY

4.

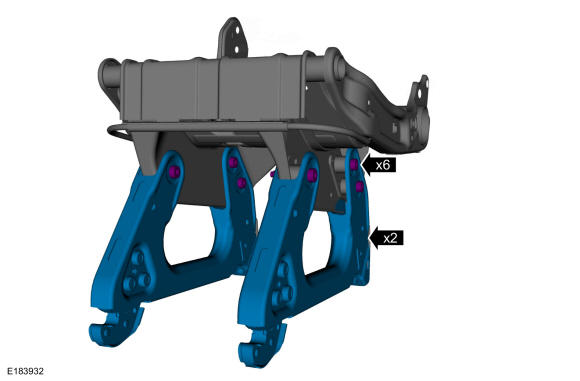

Remove the bolts and the seat frame brackets.
Torque: 47 lb.ft (64 Nm)

GFD146921

Courtesy of FORD MOTOR COMPANY
