Driver Coor Window Control Switch - Without Door Modules 2 Way
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Driver Coor Window Control Switch - Without Door Modules 2 Way

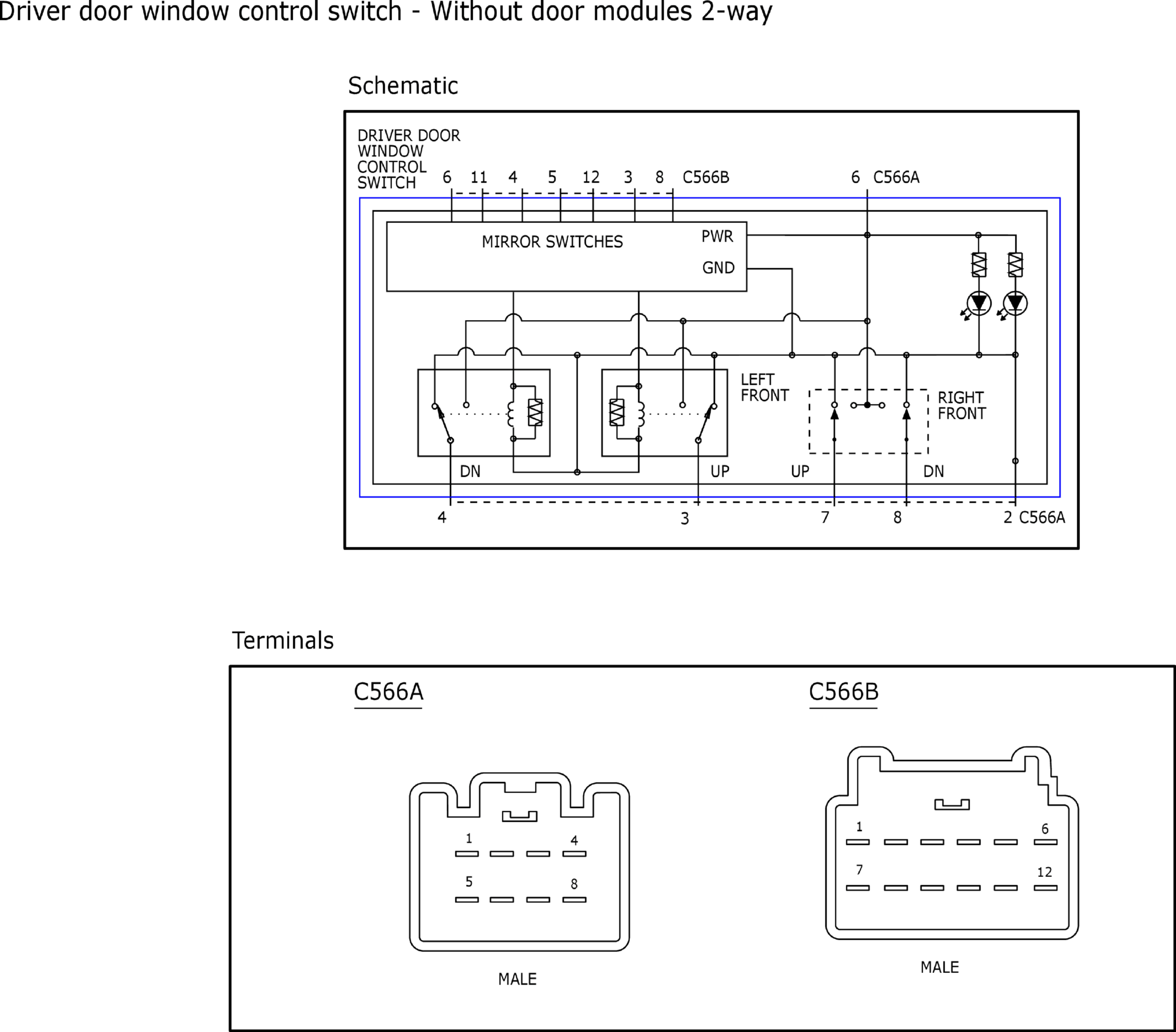

Fig 1: Driver Coor Window Control Switch - Without Door Modules 2 Way (1 Of 2)
Courtesy of FORD MOTOR COMPANY
Fig 2: Driver Coor Window Control Switch - Without Door Modules 2 Way (2 Of 2)
Courtesy of FORD MOTOR COMPANY
