Transmission Controls System

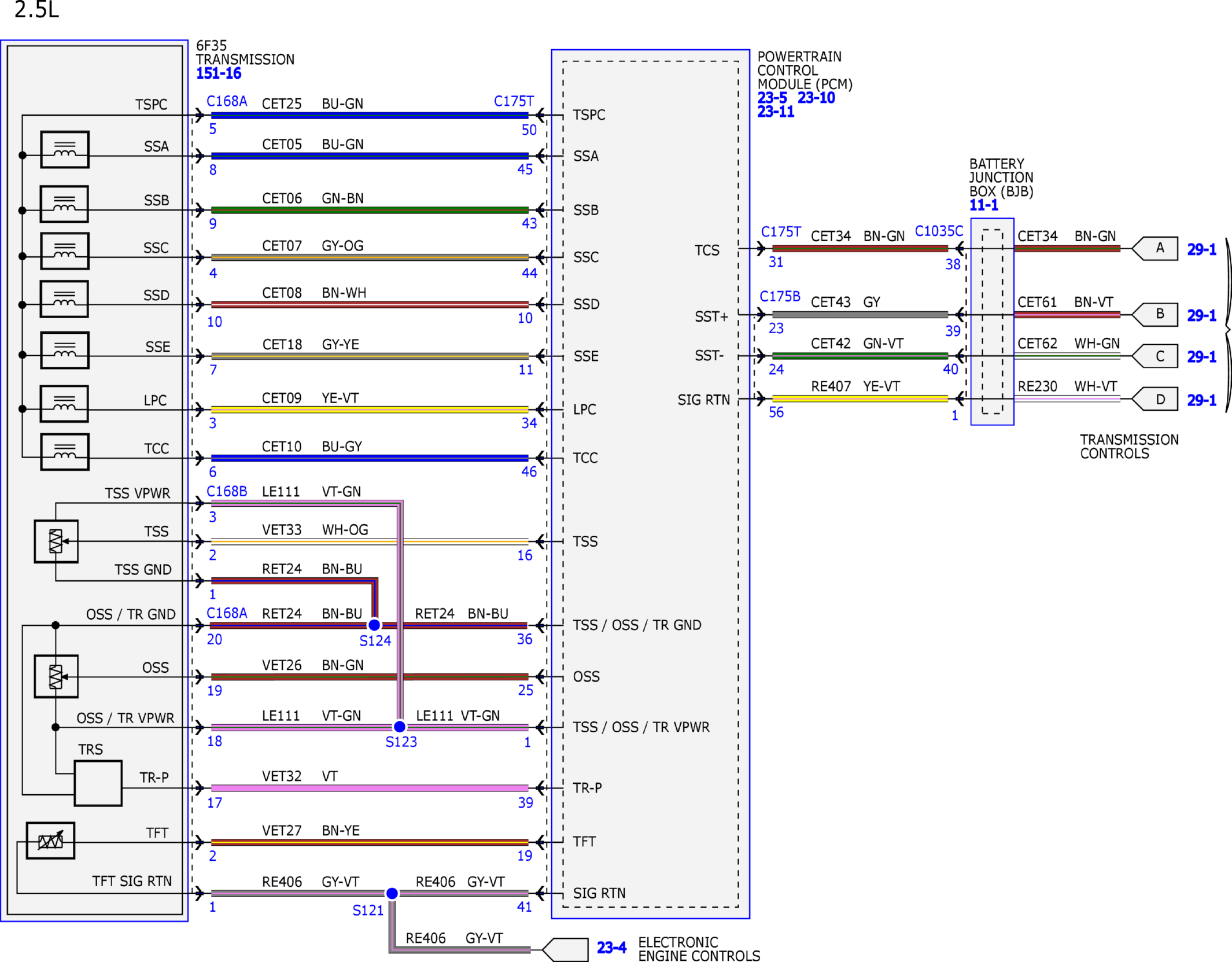

Fig 1: Transmission Controls System Wiring Diagrams (1 Of 3)
Courtesy of FORD MOTOR COMPANY

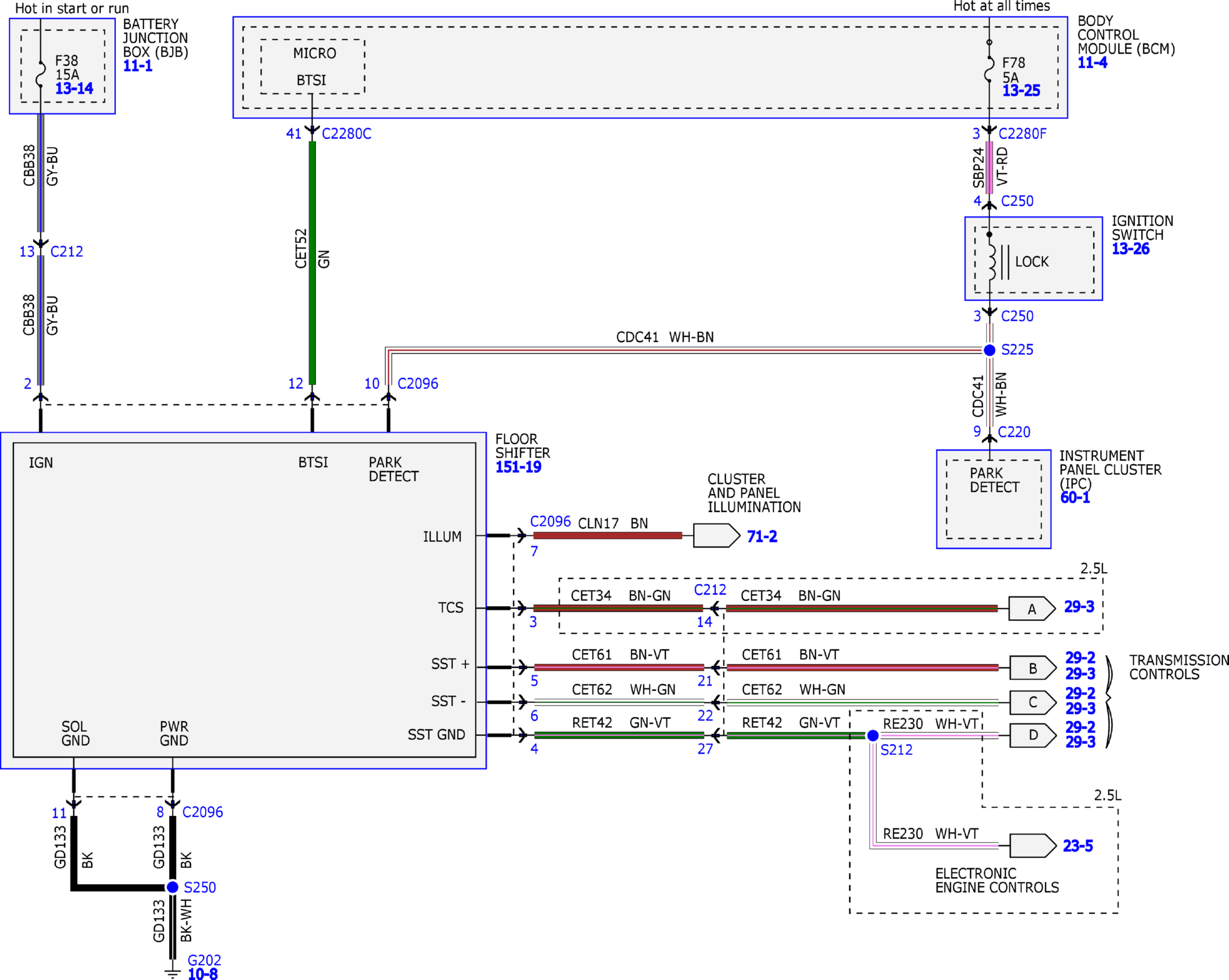

Fig 2: Transmission Controls System Wiring Diagrams (2 Of 3)
Courtesy of FORD MOTOR COMPANY

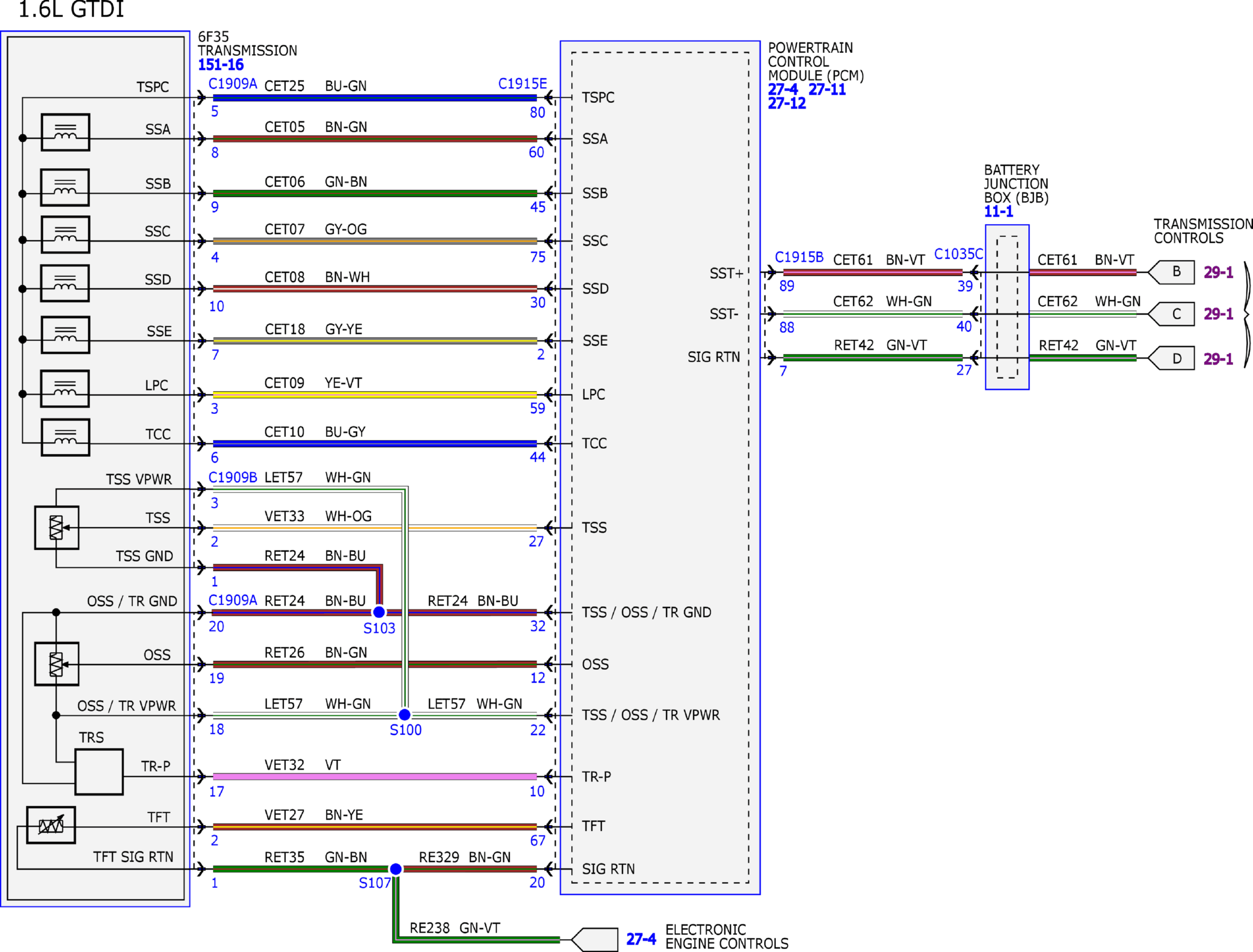

Fig 3: Transmission Controls System Wiring Diagrams (3 Of 3)
Courtesy of FORD MOTOR COMPANY
