Driver Seat Track: Installation

  1. 1.

    To install, reverse the removal procedure.

  1. 2.

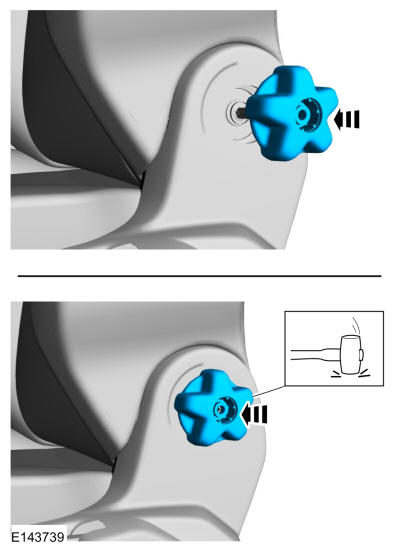

    Using rubber mallet, install the recliner handle knob.

    Use the General Equipment: Rubber Mallet

GFD47074Courtesy of FORD MOTOR COMPANY

  1. 3.

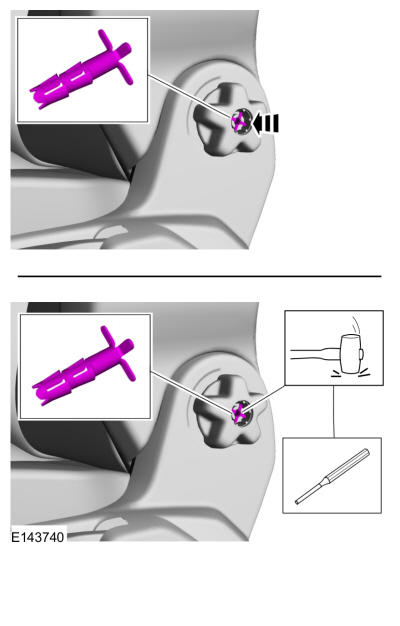

    Using rubber mallet, install the retaining clip.

    Use the General Equipment: Punch.

    Use the General Equipment: Rubber Mallet

GFD47075Courtesy of FORD MOTOR COMPANY

  1. 4.

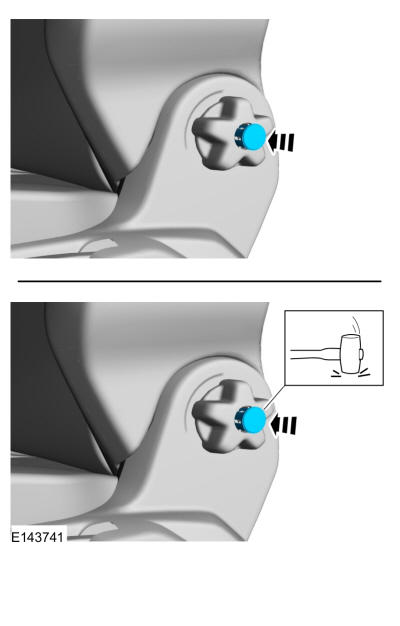

    Using rubber mallet, install the lumbar handle knob cap.

    Use the General Equipment: Rubber Mallet

GFD47076Courtesy of FORD MOTOR COMPANY
