Audio System/Navigation System

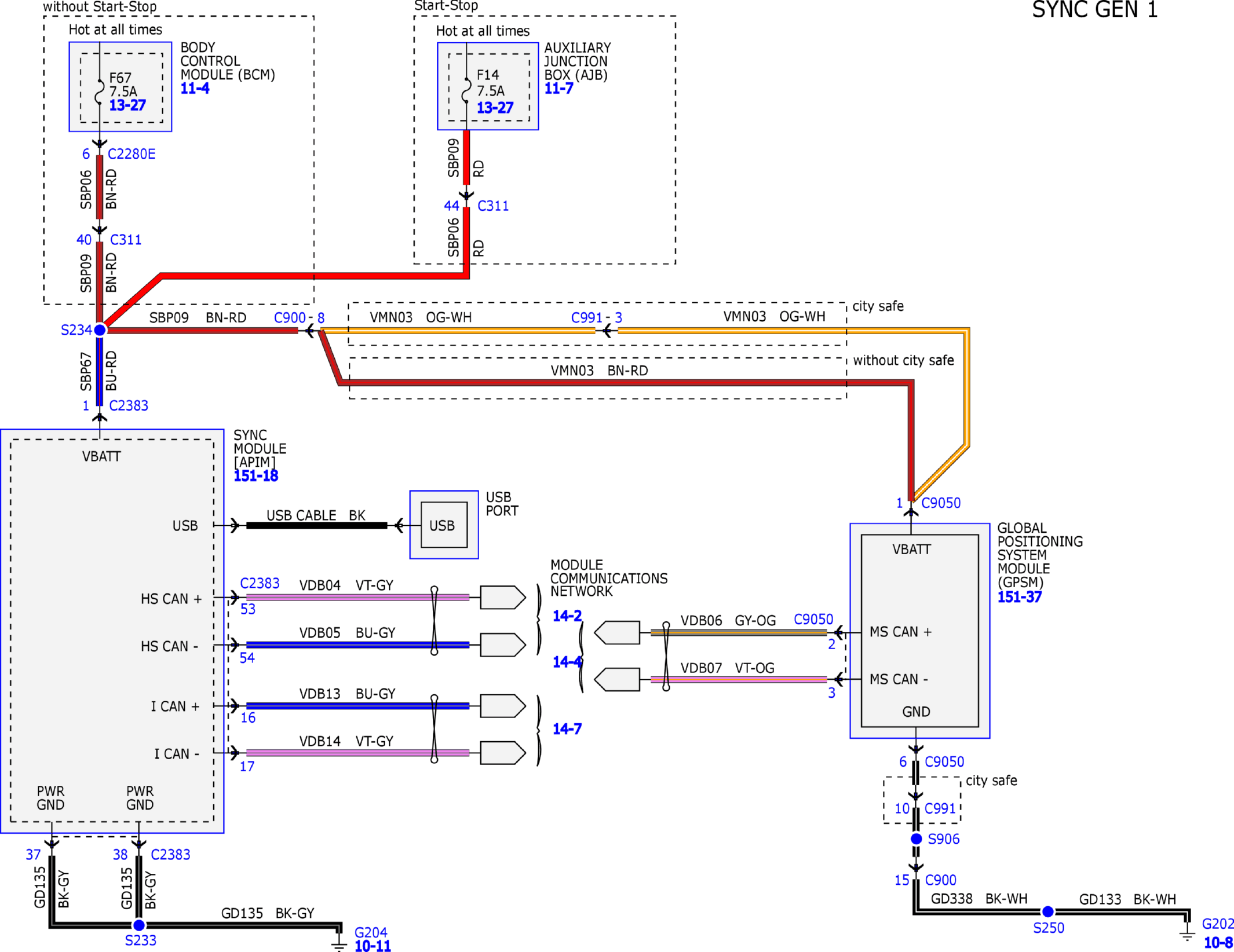

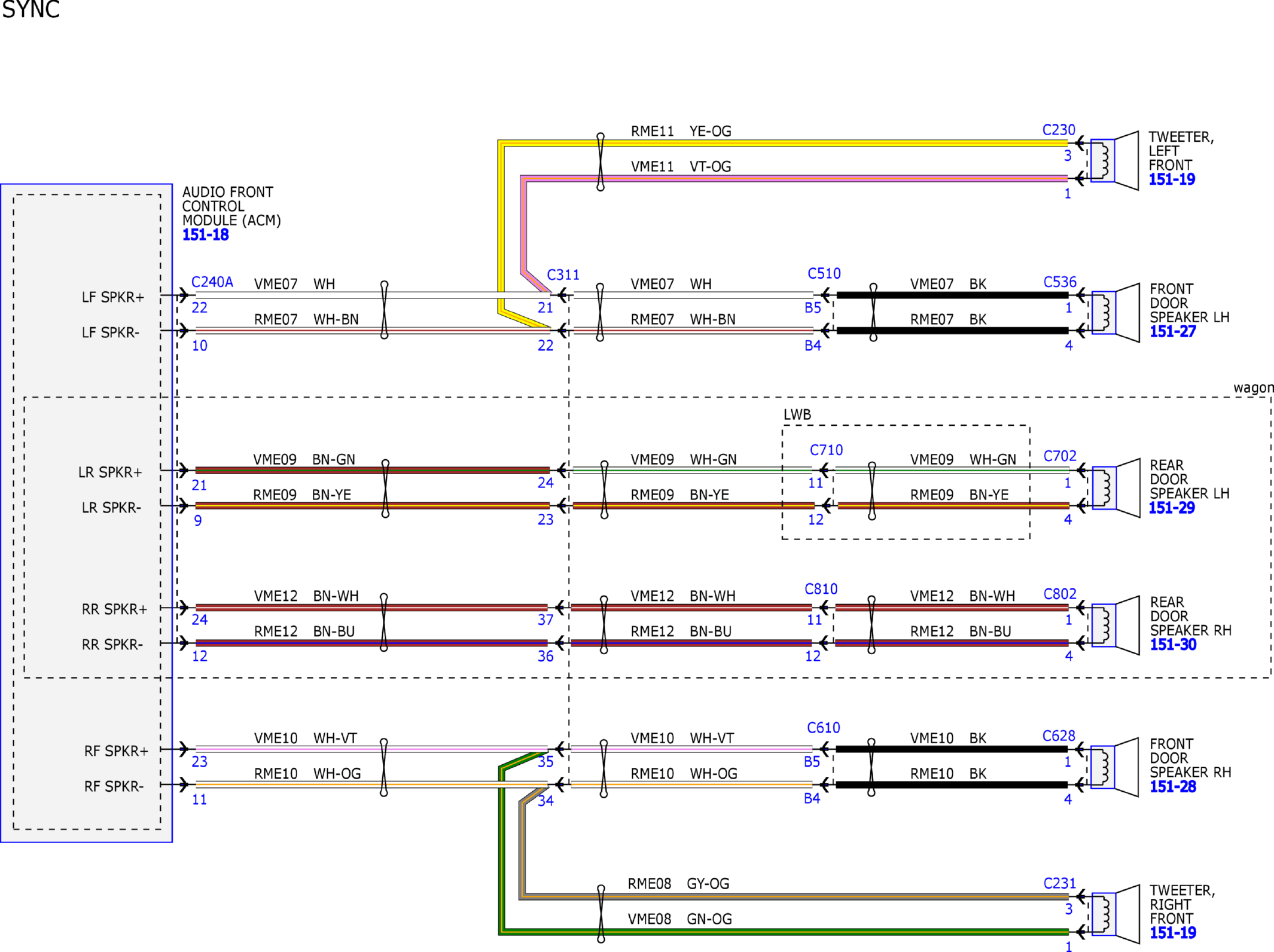

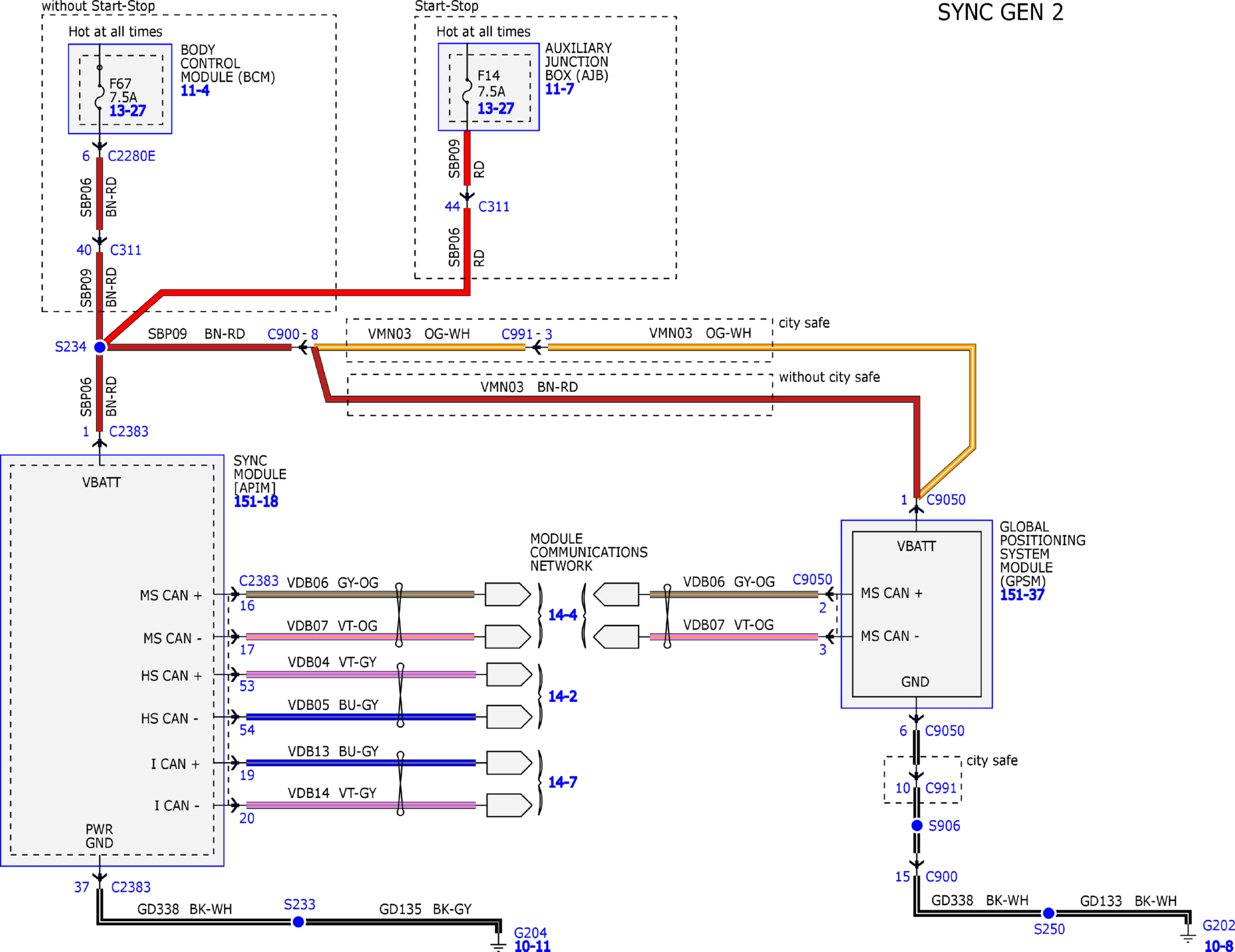

Fig 1: Audio System/Navigation System Wiring Diagrams (1 Of 17)
Courtesy of FORD MOTOR COMPANY

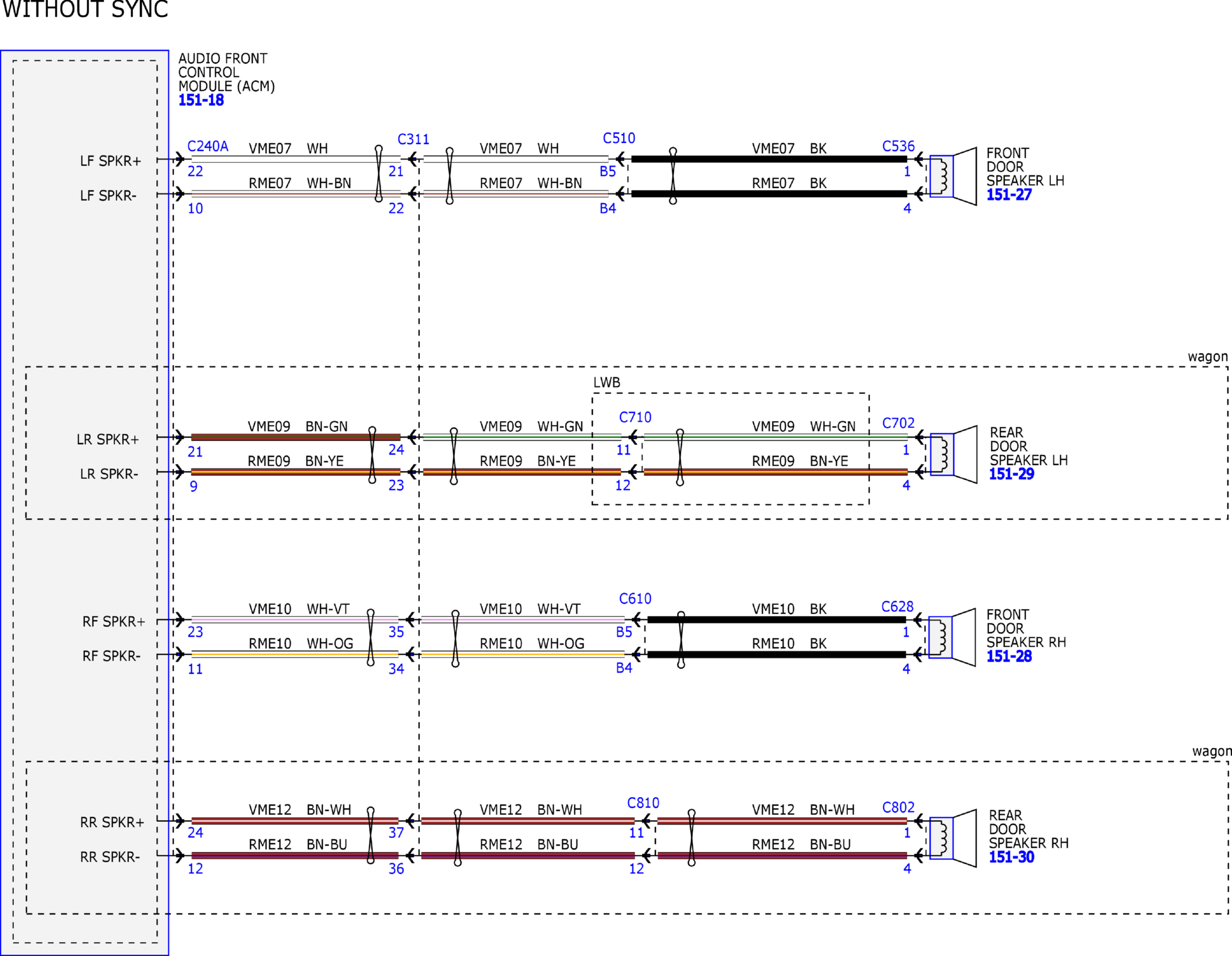

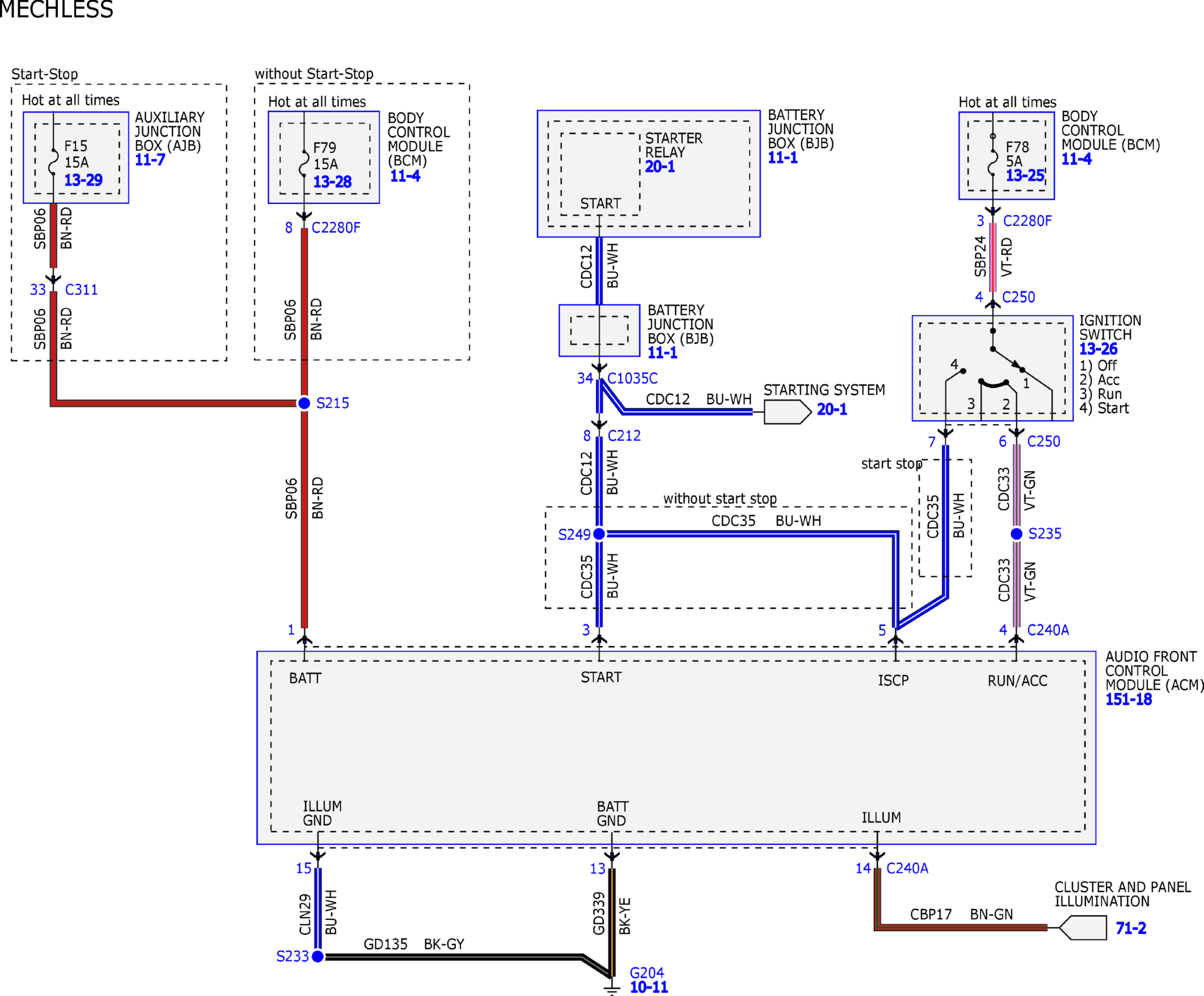

Fig 2: Audio System/Navigation System Wiring Diagrams (2 Of 17)
Courtesy of FORD MOTOR COMPANY

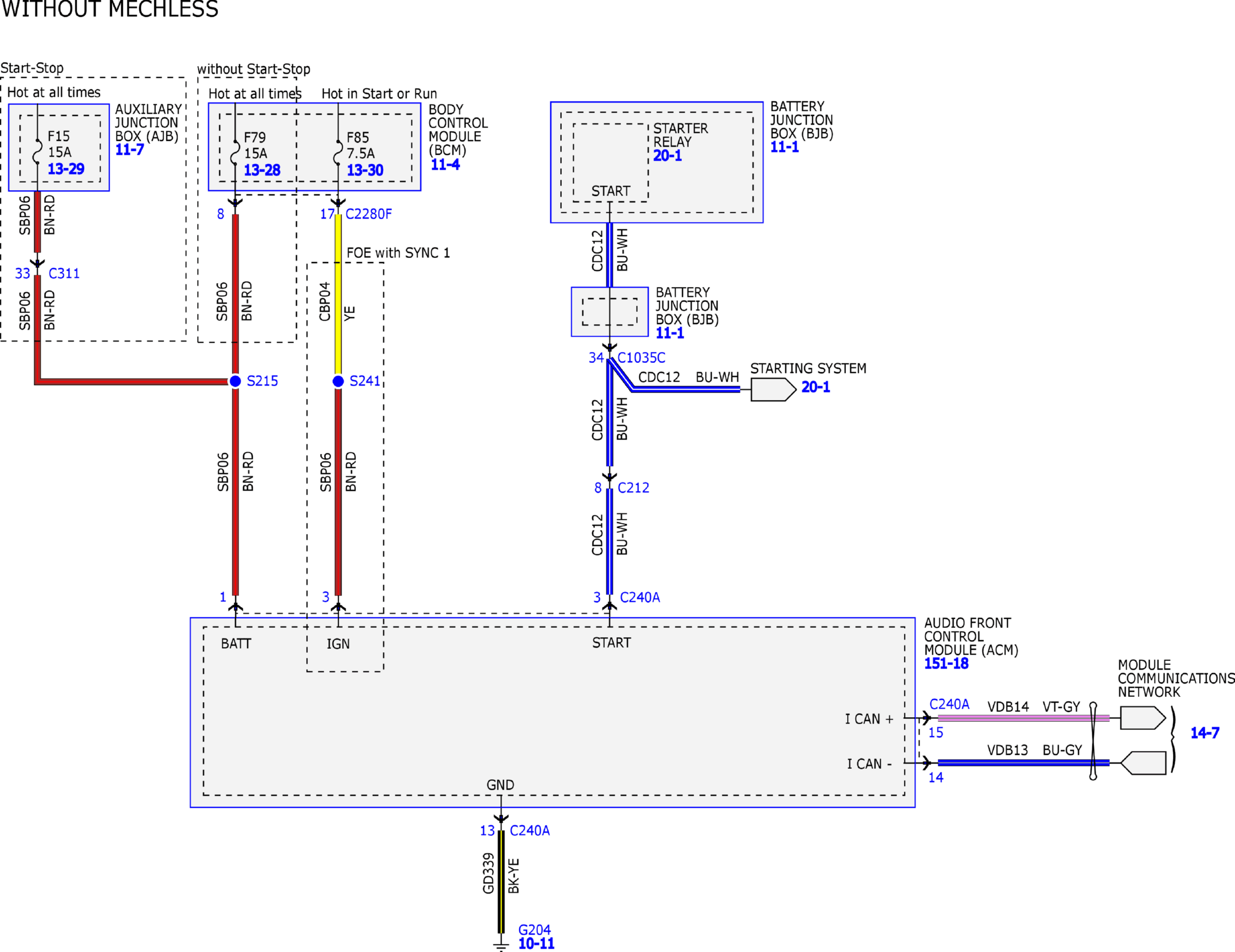

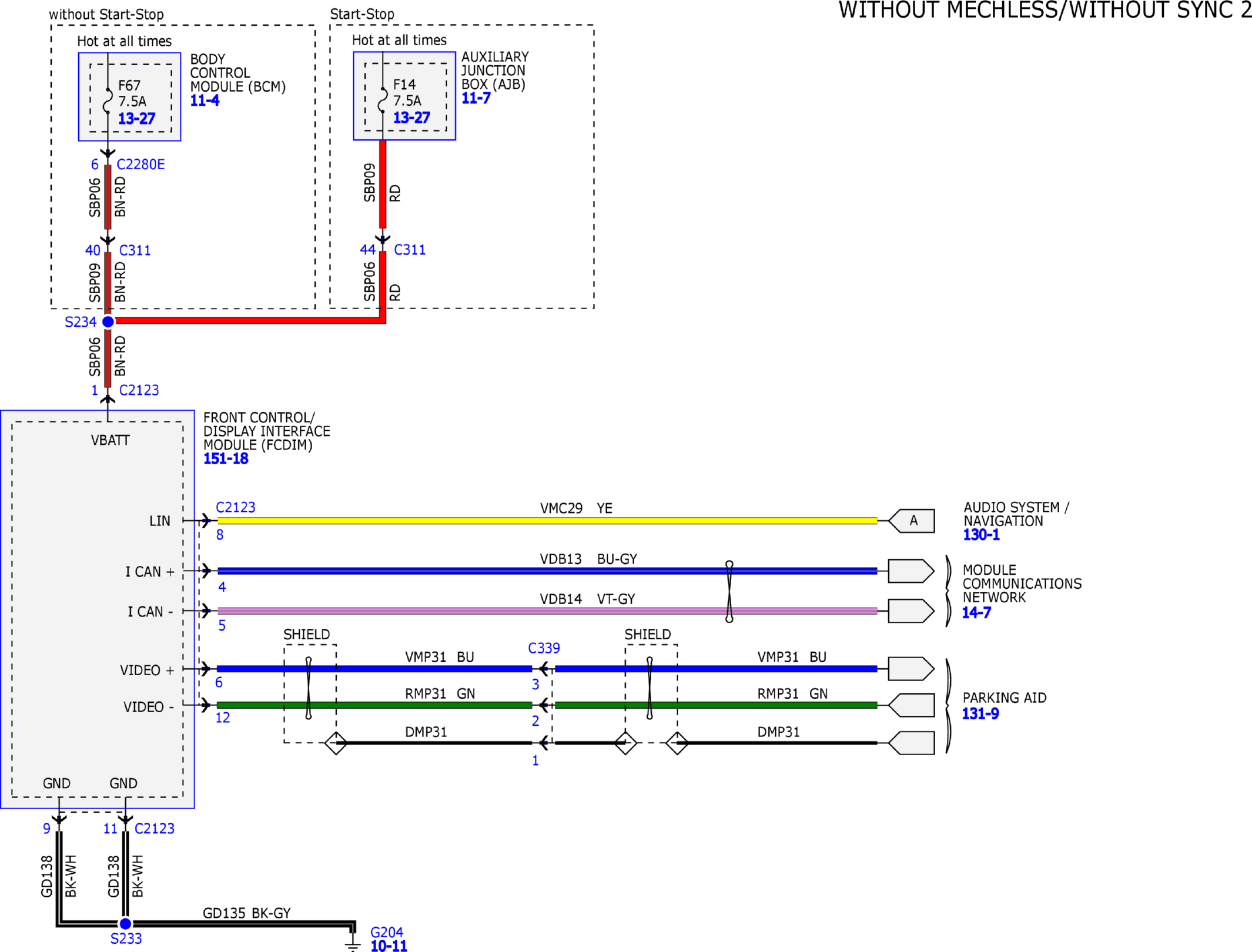

Fig 3: Audio System/Navigation System Wiring Diagrams (3 Of 17)
Courtesy of FORD MOTOR COMPANY

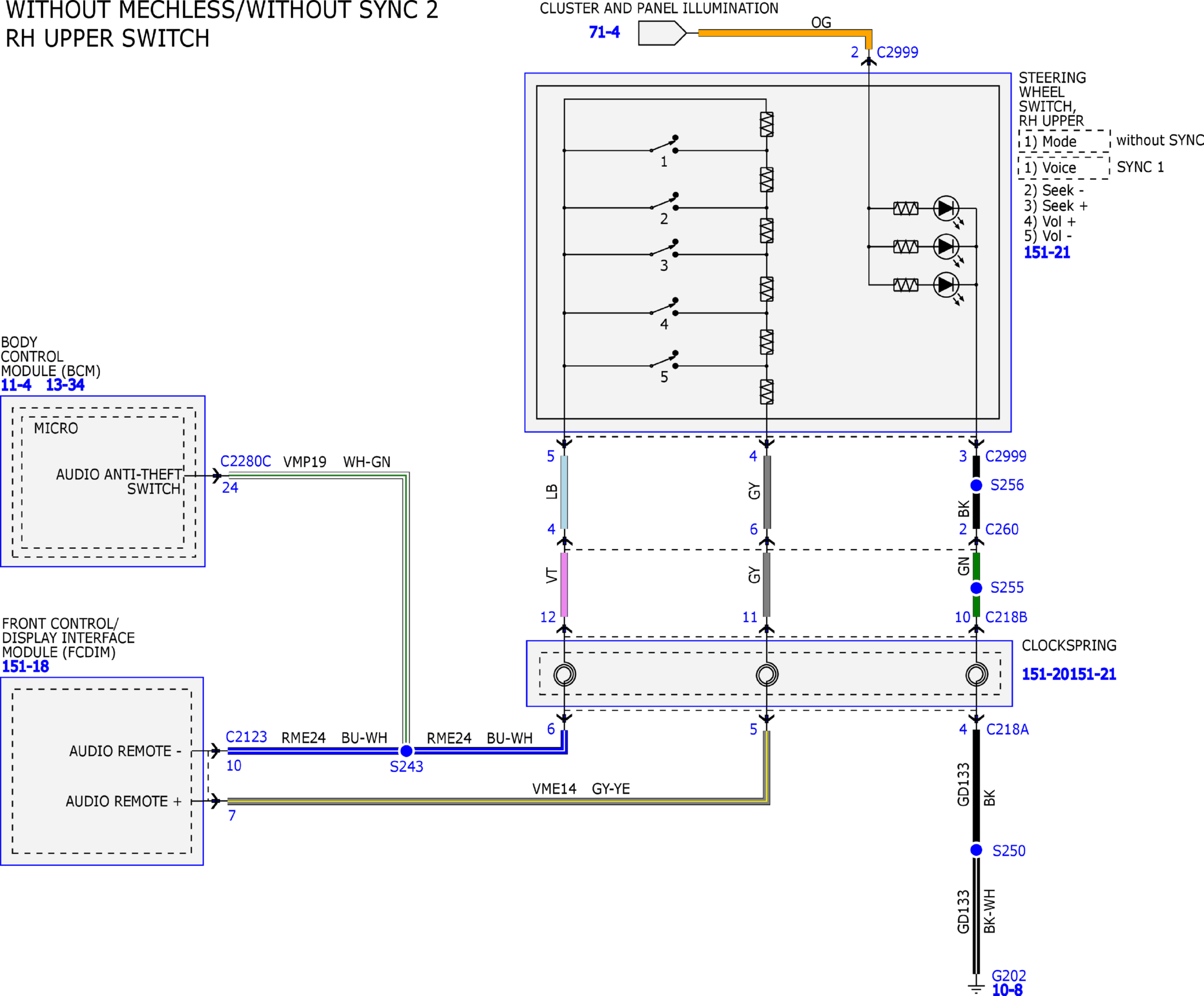

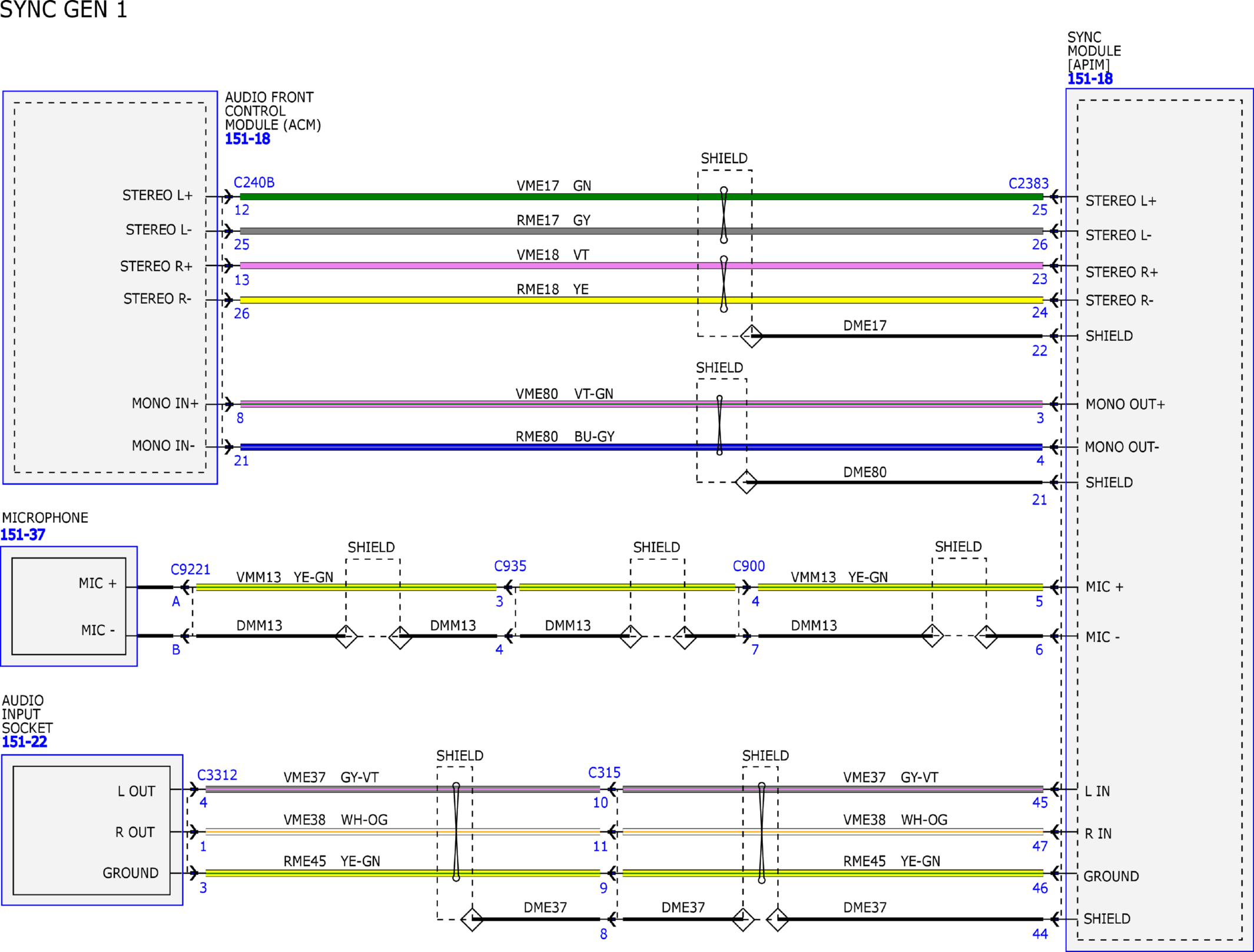

Fig 4: Audio System/Navigation System Wiring Diagrams (4 Of 17)
Courtesy of FORD MOTOR COMPANY

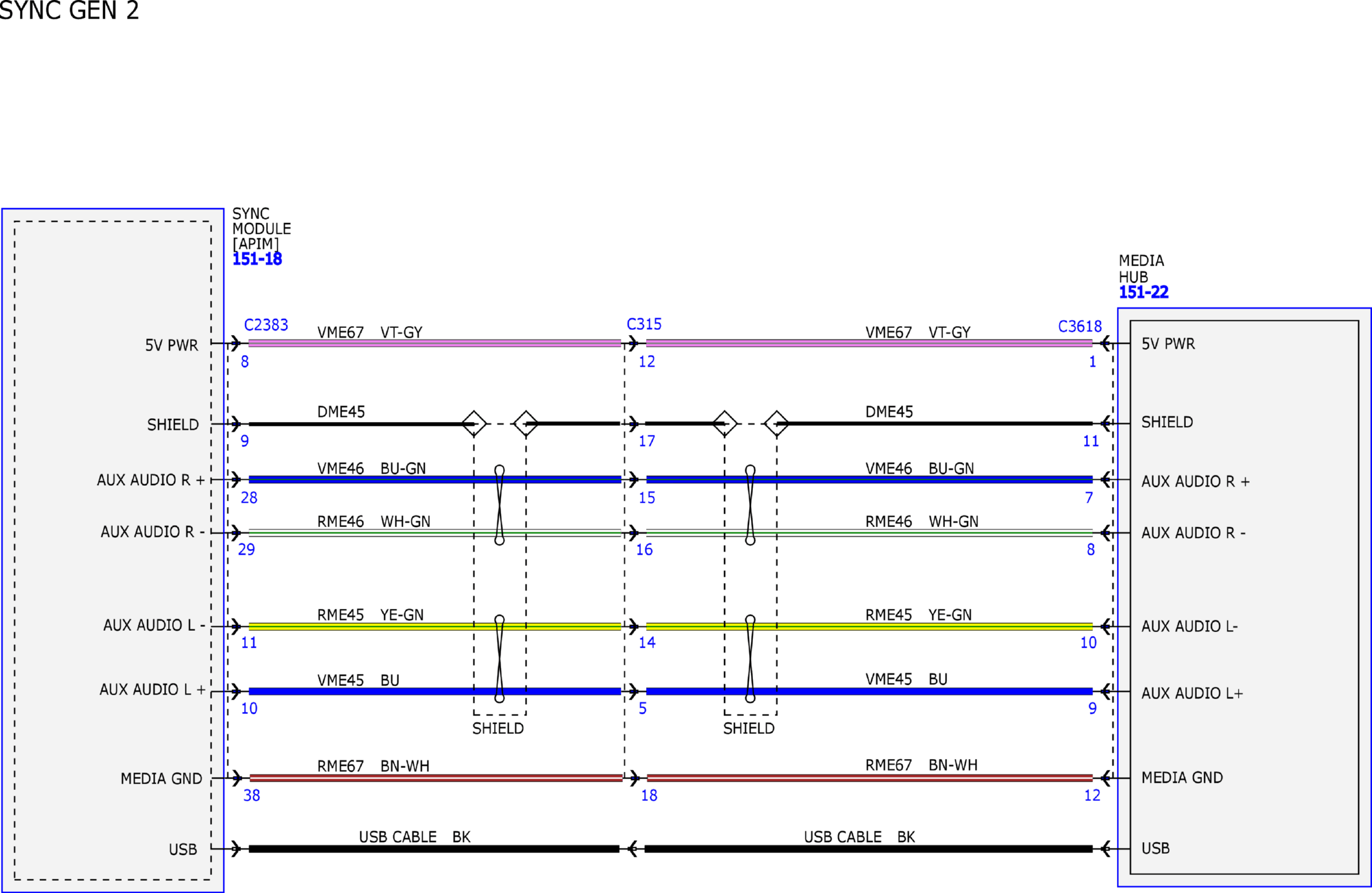

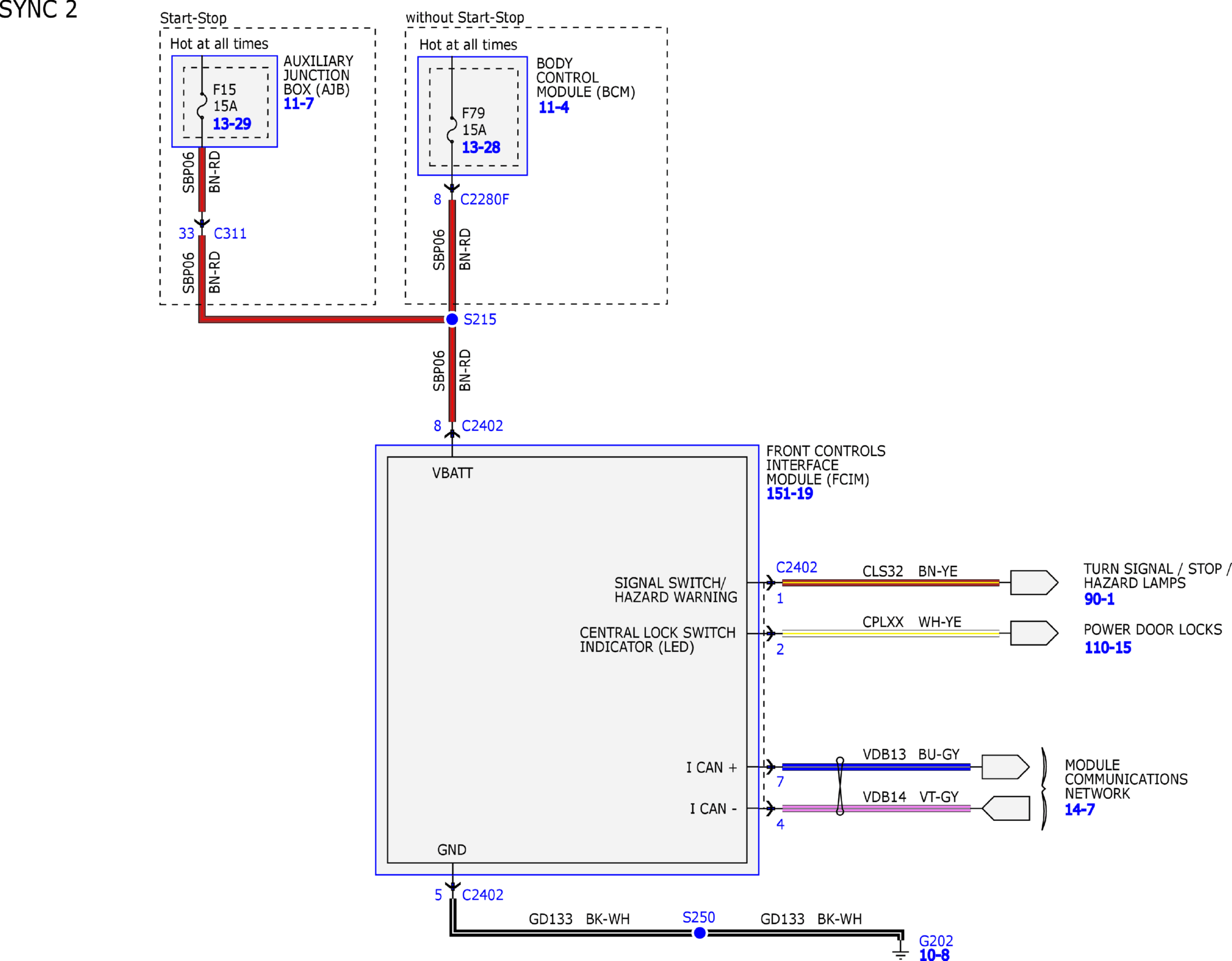

Fig 5: Audio System/Navigation System Wiring Diagrams (5 Of 17)
Courtesy of FORD MOTOR COMPANY

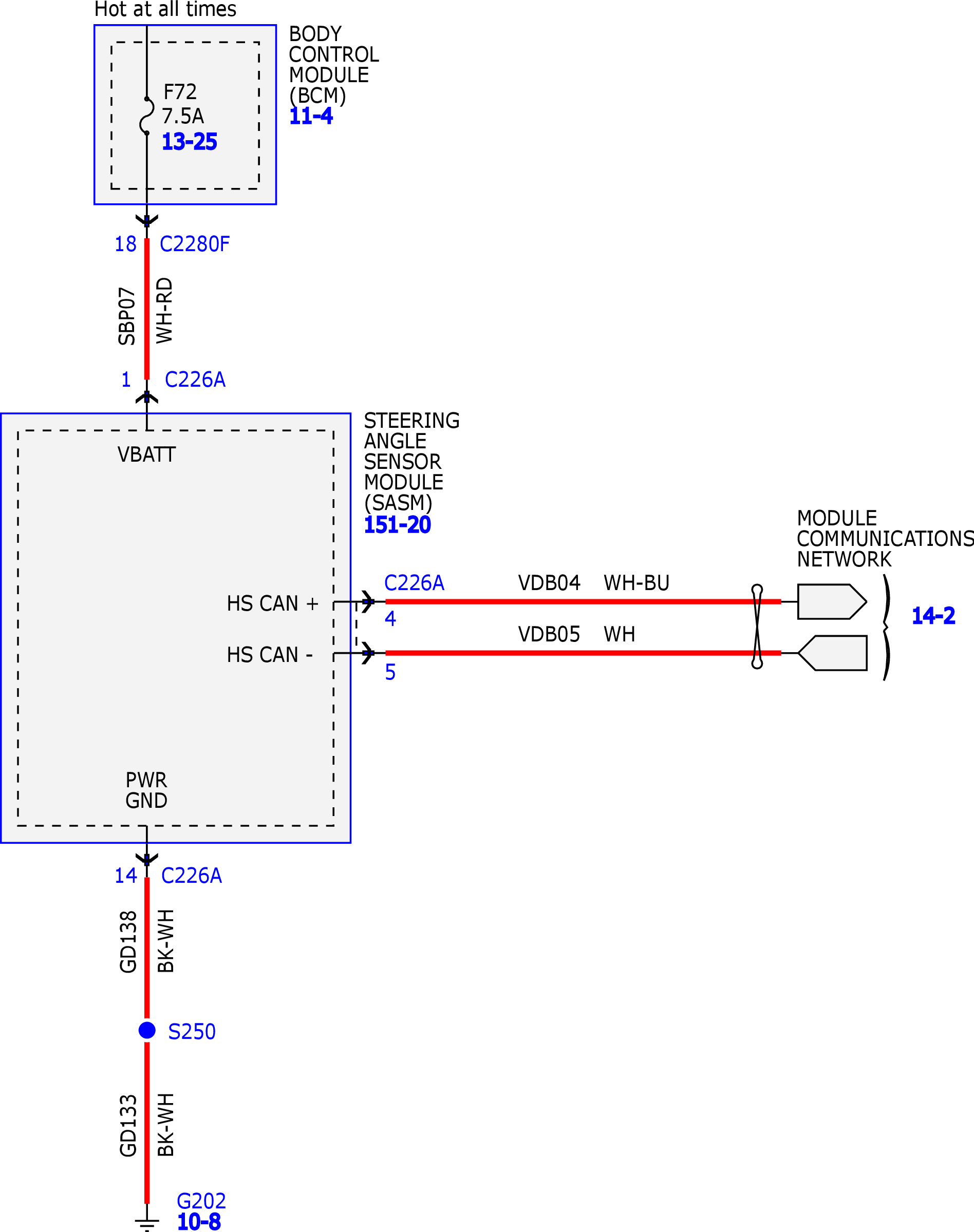

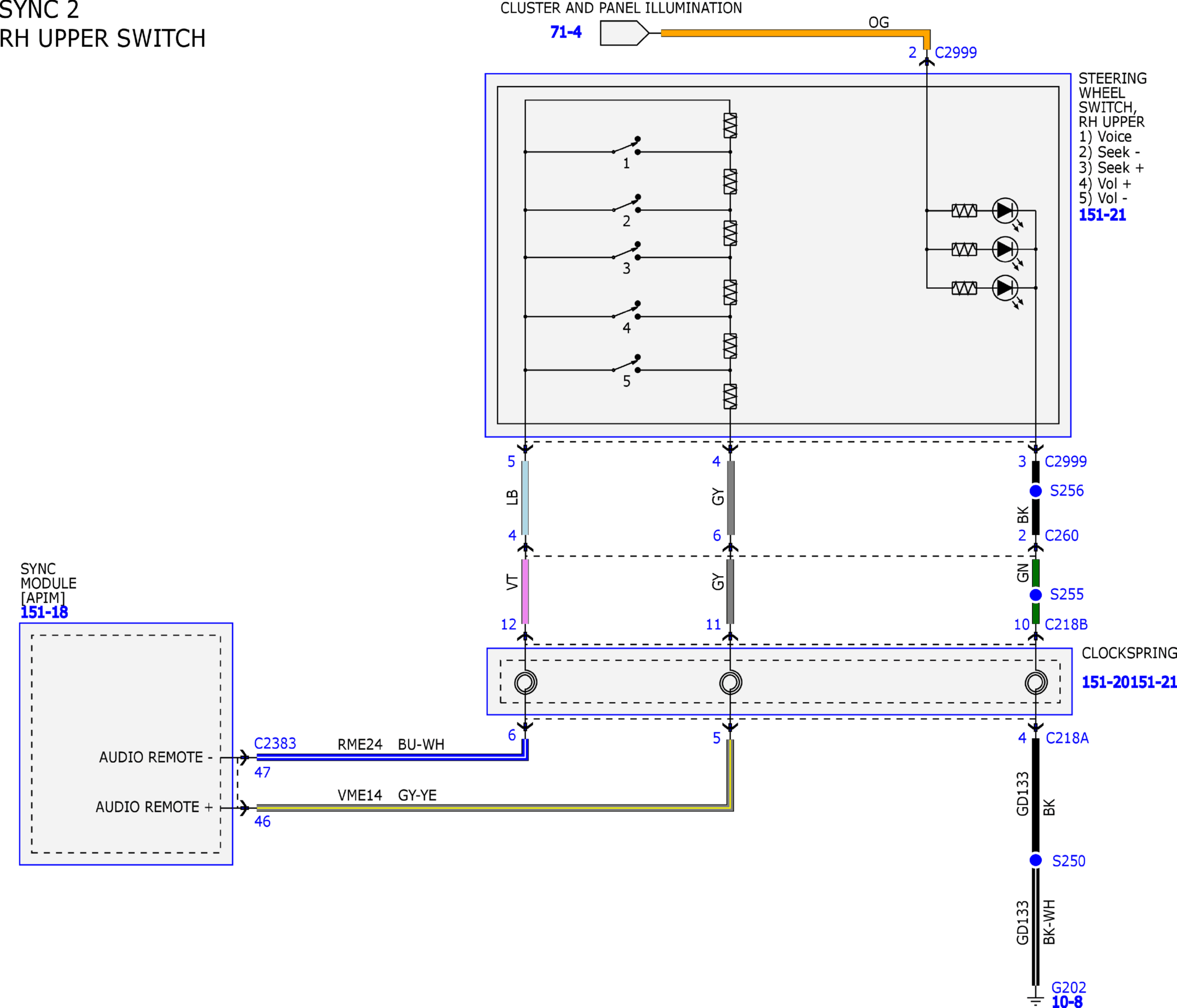

Fig 6: Audio System/Navigation System Wiring Diagrams (6 Of 17)
Courtesy of FORD MOTOR COMPANY

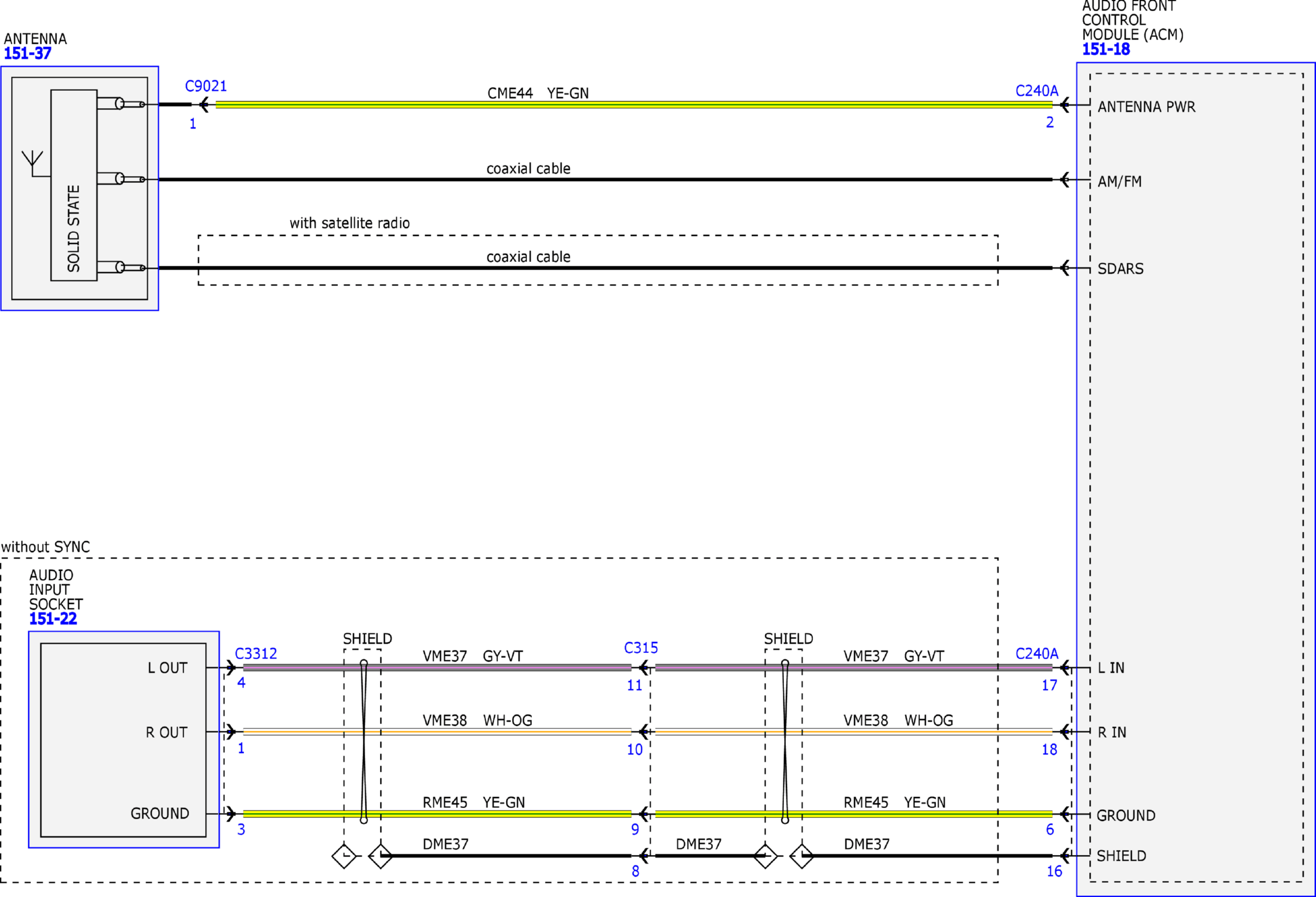

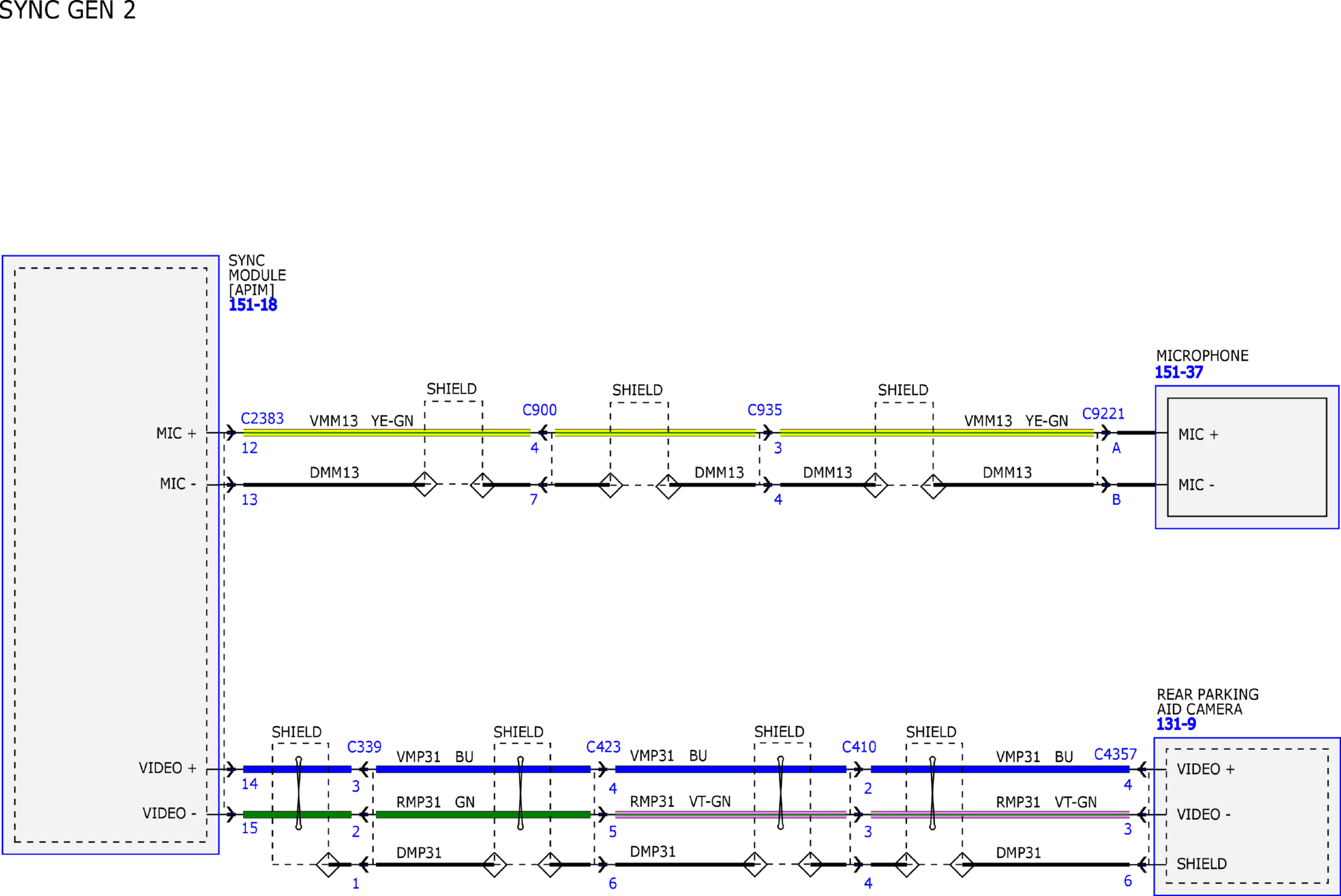

Fig 7: Audio System/Navigation System Wiring Diagrams (7 Of 17)
Courtesy of FORD MOTOR COMPANY

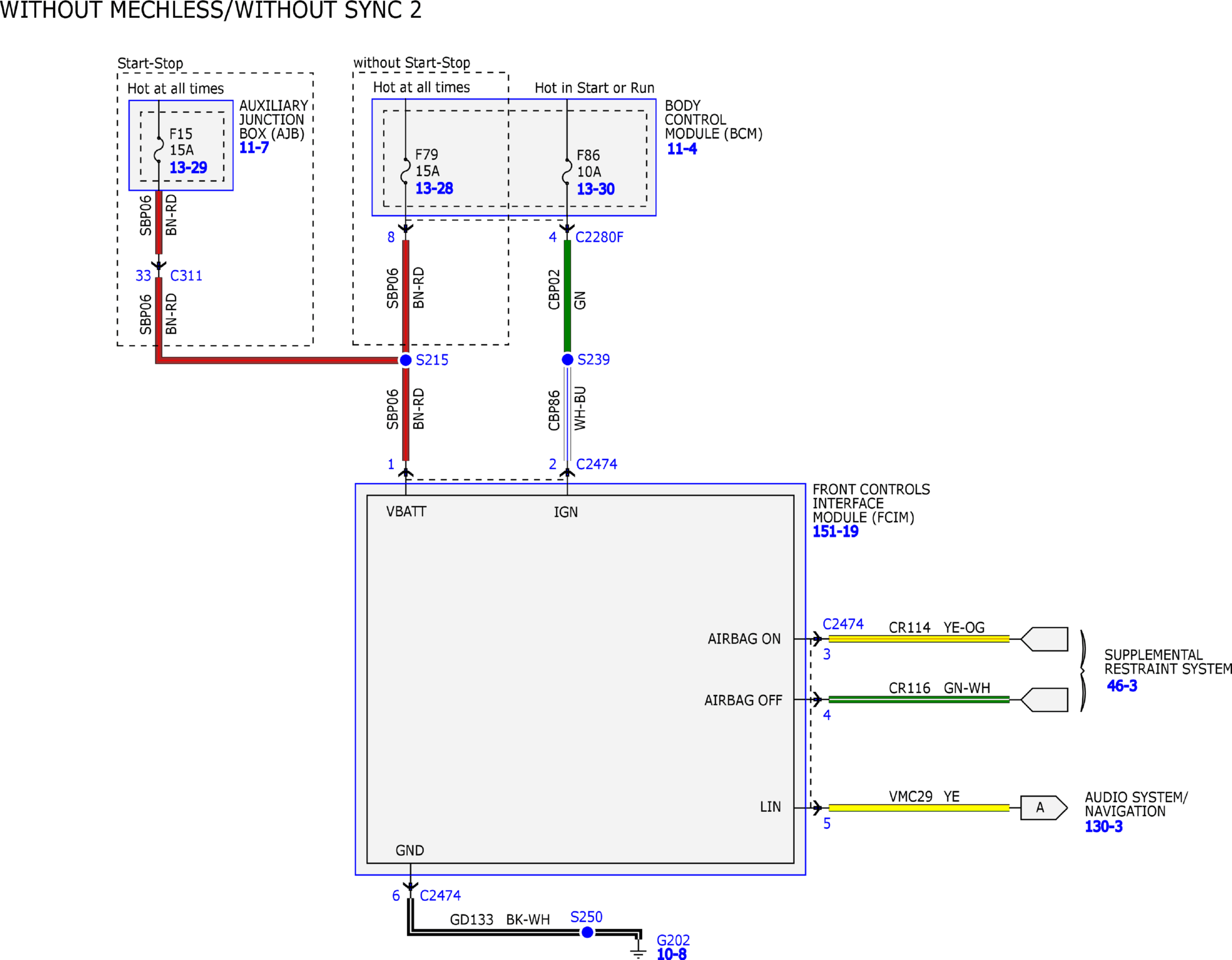

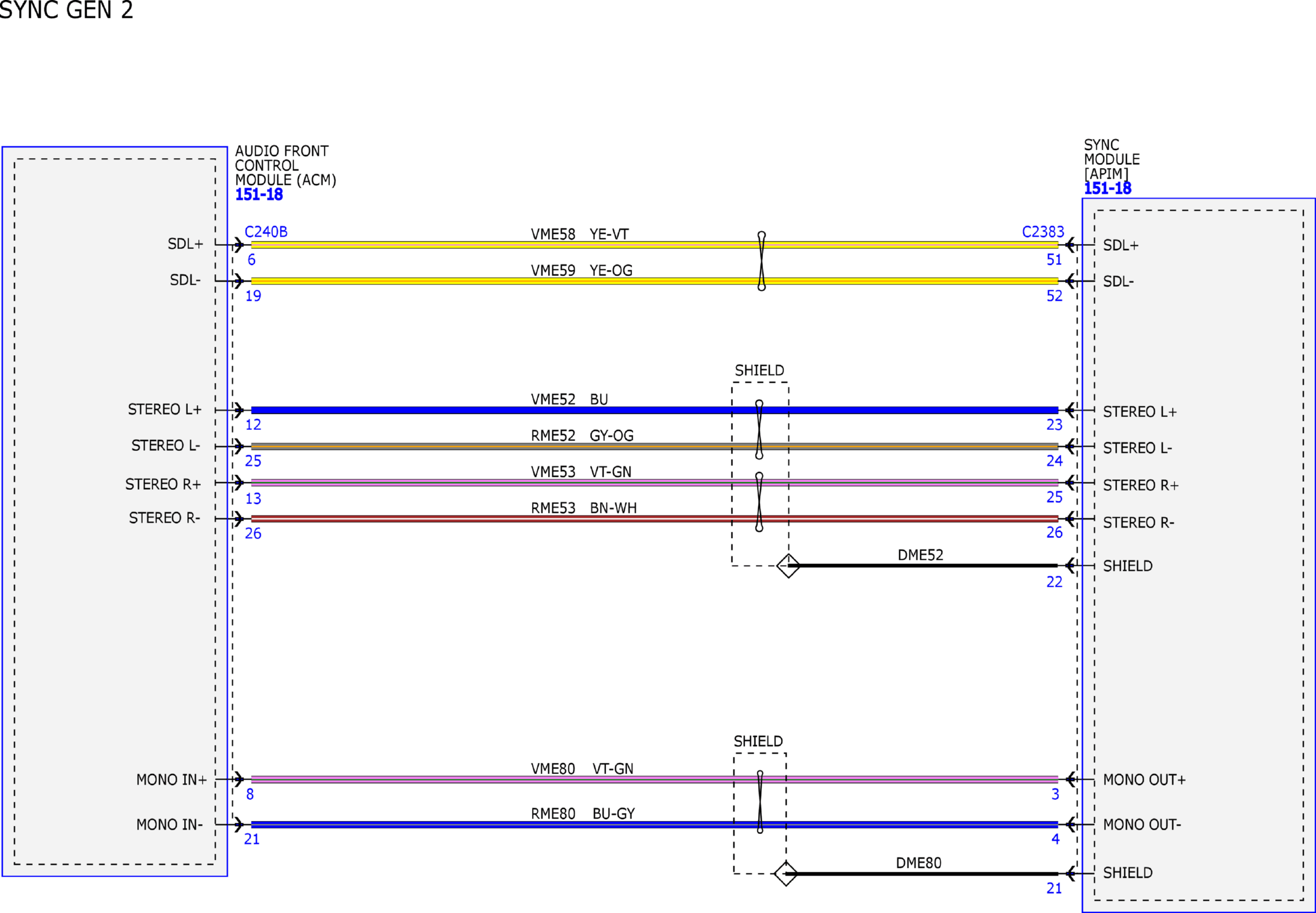

Fig 8: Audio System/Navigation System Wiring Diagrams (8 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 9: Audio System/Navigation System Wiring Diagrams (9 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 10: Audio System/Navigation System Wiring Diagrams (10 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 11: Audio System/Navigation System Wiring Diagrams (11 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 12: Audio System/Navigation System Wiring Diagrams (12 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 13: Audio System/Navigation System Wiring Diagrams (13 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 14: Audio System/Navigation System Wiring Diagrams (14 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 15: Audio System/Navigation System Wiring Diagrams (15 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 16: Audio System/Navigation System Wiring Diagrams (16 Of 17)
Courtesy of FORD MOTOR COMPANY
Fig 17: Audio System/Navigation System Wiring Diagrams (17 Of 17)
Courtesy of FORD MOTOR COMPANY
