Window Control Switch - With Door Modules

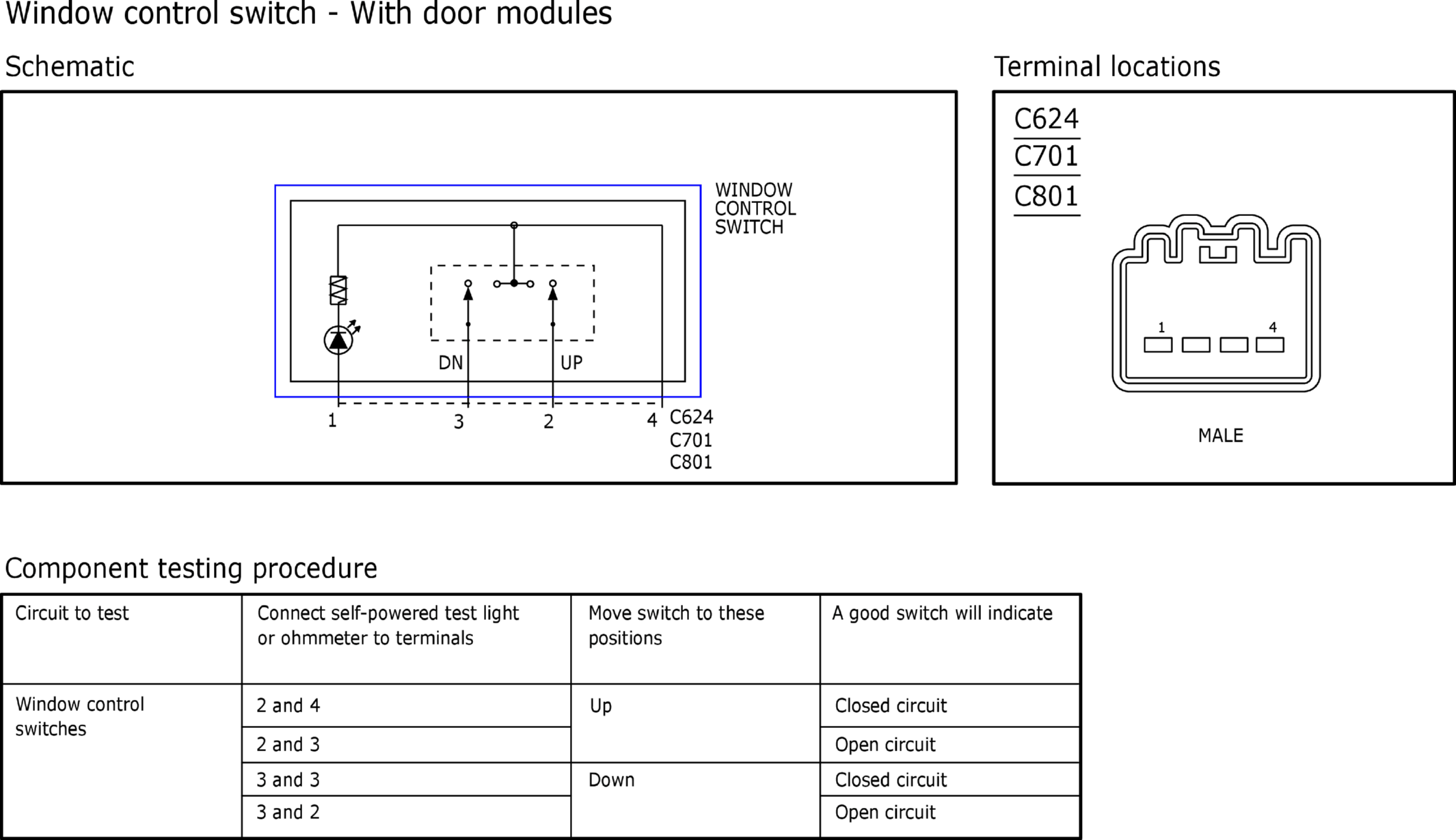

Fig 1: Window Control Switch - With Door Modules
GFDW17269Courtesy of FORD MOTOR COMPANY
