Removal And Installation

WARNING: This page is about a different car, the 2016 Ford Special Service Police Sedan and 2016 Ford Police Interceptor Sedan. However, it is still accessible from the selected car via links, so may be relevant.

Seats without Active Motion ® massage

1.

Pry the bezel up from the cushion side shield, disconnect the electrical connector, release the tabs and remove the memory SET switch.

Courtesy of FORD MOTOR COMPANY

Seats with Active Motion ® massage

2.

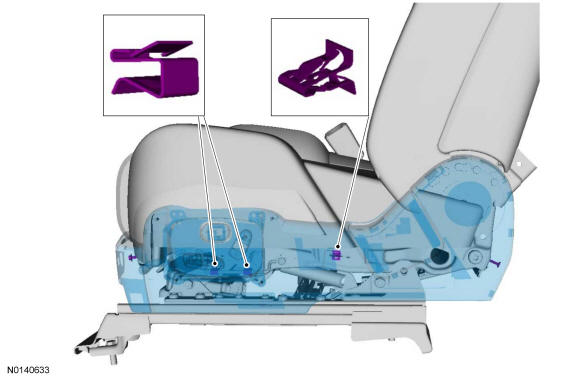

At the rear of the seat, detach the carpet flap toe-kick retainers from under the seat.

Courtesy of FORD MOTOR COMPANY

3.

From the front of the seat, detach the wire harness retainer and disconnect the seat control switch electrical connectors.

Courtesy of FORD MOTOR COMPANY

4.

Remove the cushion side shield from the cushion.
1. 1.

  Remove the screw from the front of the cushion side shield.
1. 2.

  Remove the scrivet from the rear of the cushion side shield.
1. 3.

  Detach the cushion side shield retainers from the cushion.

Courtesy of FORD MOTOR COMPANY

5.

Detach the clips and remove the memory SET switch.

All seats

6.

To install, reverse the removal procedure.
