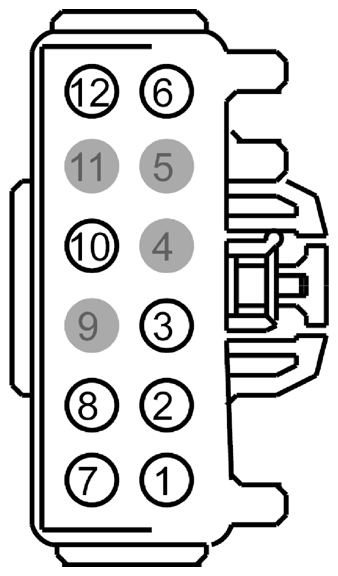

Trailer Module Connector End View (C4379C)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CAT09 (GN) | 20 | RIGHT TURN LAMP | |
| 2 | CAT23 (GY-YE) | 20 | VPWR | |
| 3 | CAT10 (RD) | 20 | LEFT STOP LAMP | |
| 4 | * | * | Not Used | |
| 5 | * | * | Not Used | |
| 6 | CAT03 (GY-BN) | 20 | REVERSE LAMP | |
| 7 | CAT10 (RD) | 20 | RIGHT STOP LAMP | |
| 8 | CAT07 (GY-OG) | 20 | FOG LAMPS | |
| 9 | * | * | Not Used | |
| 10 | CAT06 (YE) | 20 | LEFT TURN LAMP | |
| 11 | * | * | Not Used | |
| 12 | CAT11 (BN) | 20 | PARK LAMPS |
