Trailer Module Connector End View (C4379B)

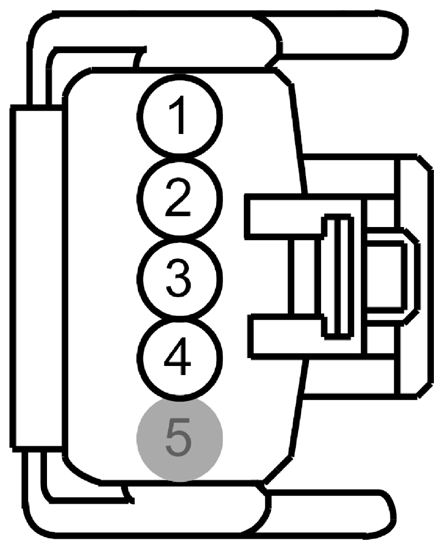

Fig 1: Identifying Trailer Module Connector (C4379B)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
VDB06 (GY-OG)
22
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH
2
VDB07 (VT-OG)
22
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW
3
CLS44 (VT-BN)
20
CTRL MOD. - STOP
4
GD351 (BK-GN)
20
GROUND - PILLAR D RIGHT
5
*
*
Not Used
