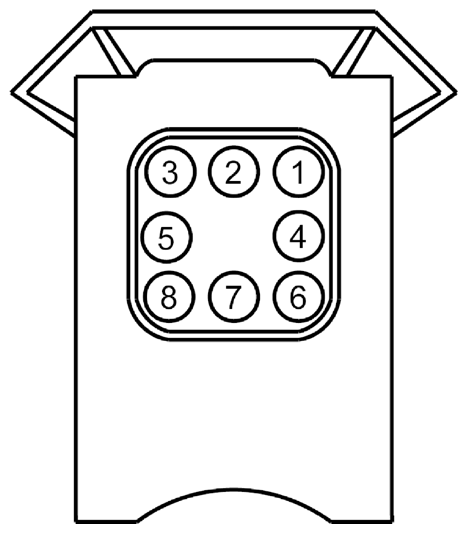

Glow Plug Module Connector End View (C1273)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CE245 (VT-WH) | 12 | CTRL MOD. - GLOW PLUG 3 OR ELECTRONIC COLD START | |
| 2 | CE243 (GY-VT) | 12 | CTRL MOD. - GLOW PLUG 1 OR ELECTRONIC COLD START | |
| 3 | CE609 (WH-OG) | 20 | RELAY - GLOW PLUGS | |
| 4 | CBB04 (BK-VT) | 6 | FUSE - 4 OR CIRCUIT BREAKER | |
| 5 | CE513 (BK-GY) | 4 | CONTROLLER - GLOW PLUG | |
| 6 | CE246 (YE-BU) | 12 | CTRL MOD. - GLOW PLUG 4 OR ELECTRONIC COLD START | |
| 7 | CE244 (BU-BN) | 12 | CTRL MOD. - GLOW PLUG 2 OR ELECTRONIC COLD START | |
| 8 | CBB02 (GN) | 20 | FUSE - 2 OR CIRCUIT BREAKER |
