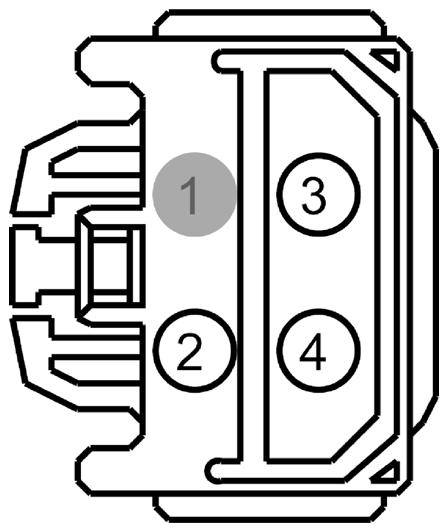

Blower Motor Control Module Connector End View (C297A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | GD339 (BK-YE) | 4 | GROUND | |
| 3 | VH101 (WH-VT) | 20 | CTRL MOD. - CLIMATE # BLOWER MOTOR CONTROL | |
| 4 | CBP18 (GY-OG) | 4 | FUSE - 18 OR CIRCUIT BREAKER |
| Available Pigtail Kits | |
|---|---|

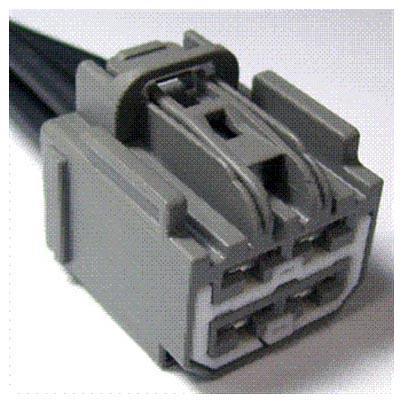

| Pigtail Kit Part Number WPT-1177 | Service Part Number: AU2Z-14S411-BHA Gauge: 10 Pin material: Tin Cavities: 4 Vehicle Uses
|
