Multifunction Switch, Wiper/Washer Portion - Front: Schematic

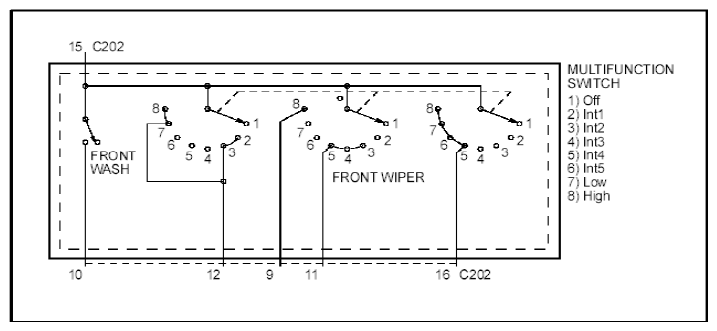

Fig 1: Multifunction Switch, Wiper/Washer Portion Schematic (Front)
G09283299Courtesy of FORD MOTOR CO.
