Rear Window Defrost Grid Connector End View (C402B)

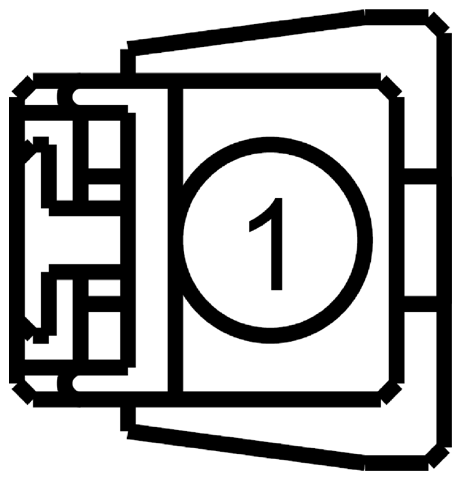

Fig 1: Identifying Rear Window Defrost Grid Connector (C402B)
G09283553Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 GD109 (BK) 12 GROUND - COMBINED REAR LAMP LEFT
Available Pigtail Kits

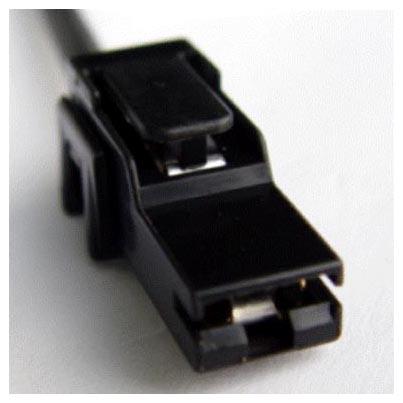

Pigtail Kit Part Number WPT-371
G09283554
 Service Part Number: 3U2Z-14S411-KBA
Gauge: 10
Pin material: Tin
Cavities: 1
Vehicle Uses
  • Cigar Lighter
  • Horn
  • Lamp - CHMSL (Center High Mount Stop Lamp)
  • Module - Isolater Antenna
  • Module - Radio Power Antenna
  • Relay - Starter Motor
  • Switch - Park Brake
  • Terminal - Rear Window Defroster Grid

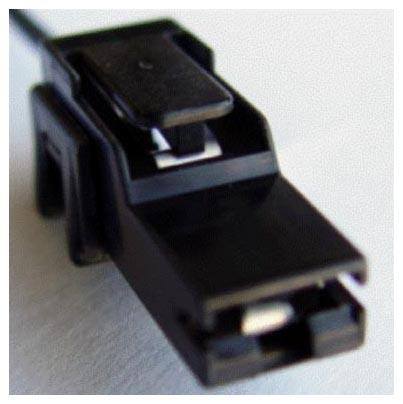

Pigtail Kit Part Number WPT-434
G09283555
 Service Part Number: 3U2Z-14S411-MFA
Gauge: 16 18
Pin material: Tin
Cavities: 1
Vehicle Uses
  • Lamp - Map
