Power Liftgate Open/Close Switch, Front Connector End View (C2269)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
Power Liftgate Open/Close Switch, Front Connector End View (C2269)

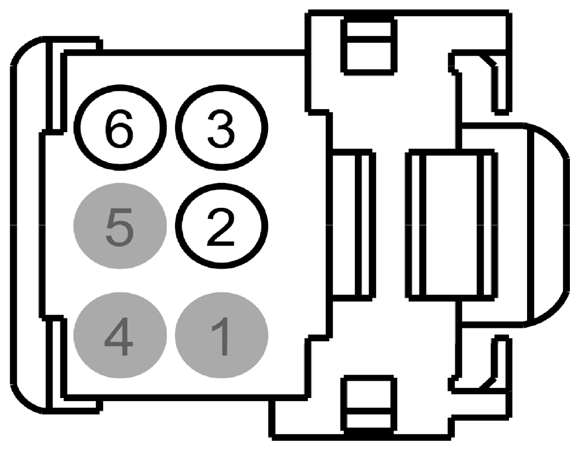

Fig 1: Identifying Power Liftgate Open/Close Switch, Front Connector (C2269)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
*
*
Not Used
2
GD375 (BK-BU)
22
GROUND - TUNNEL # 2ND POINT (BC3T)
3
VLN04 (VT-GY)
20
CTRL MOD. - IP/SWITCH ILLUMINATION
4
*
*
Not Used
5
*
*
Not Used
6
CPR63 (GY)
26
SWITCH - POWER LIFTGATE # OPEN/CLOSE
