Fiesta ST
>>
Repair and Diagnosis
>>
Quick Lookups
>>
Wiring Diagrams
>>
OEM Connector End Views
>>
CLOCKSPRING Connector End View (C218A)
July 1:
So it begins
. Don't worry, this is not in the correct legal jurisdiction!
CLOCKSPRING Connector End View (C218A)

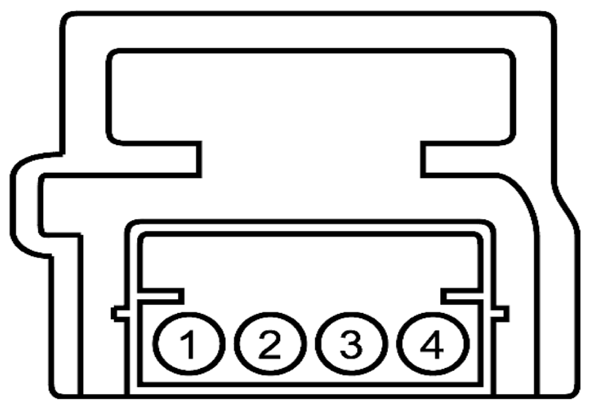

Fig 1: Identifying Clockspring Connector (C218A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
RR101 (YE-GN)
20
CTRL MOD. - AIR BAG DRIVER 1 -
2
CR101 (VT-BN)
20
CTRL MOD. - AIR BAG DRIVER 1 +
3
RR102 (WH)
20
CTRL MOD. - AIR BAG DRIVER 2 -
4
CR102 (BU)
20
CTRL MOD. - AIR BAG DRIVER 2 +
