Removal and Installation

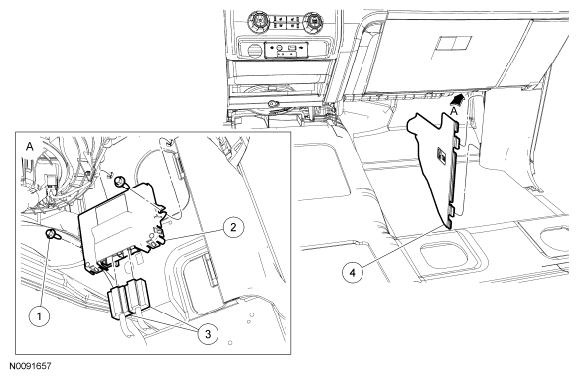

| Item | Part Number | Description |
|---|---|---|
| 1 | W706287 | Screw (2 required) |
| 2 | 7E453 | Transfer Case Control Module (TCCM) |
| 3 | - | TCCM electrical connectors (part of 12A581) |
| 4 | 023A98 | Central Junction Box (CJB) cover |
- Remove the Central Junction Box (CJB) cover to gain access to the Transfer Case Control Module (TCCM).NOTE: The TCCM has slotted mounting holes. It is not necessary to remove the LH TCCM screw when removing the TCCM .
- Loosen the LH TCCM
screw and remove the RH TCCM
screw.
- To install, tighten to 7 Nm (62 lb-in).
- Disconnect the 2 electrical connectors.
- Remove the TCCM .
- To install, reverse the removal procedure.
