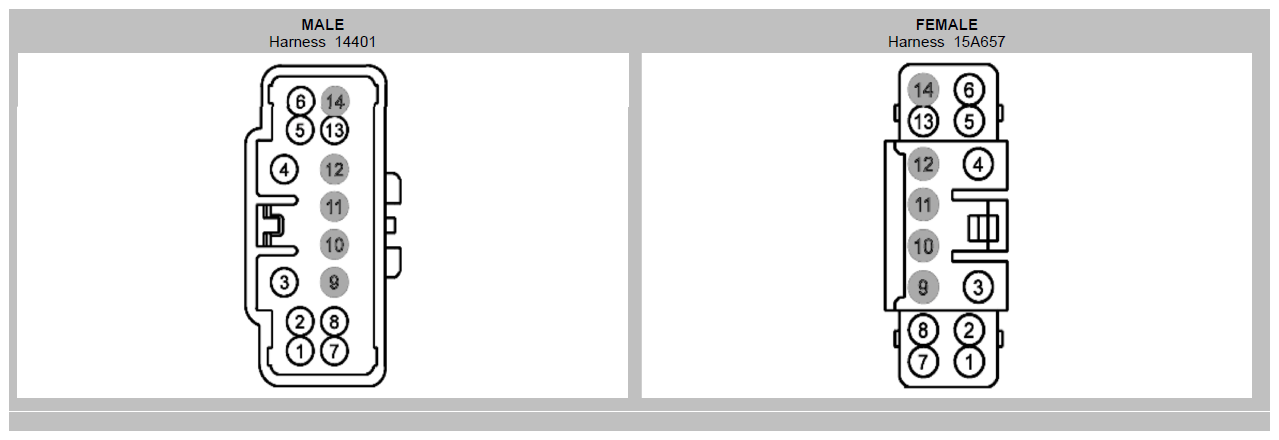

Inline Connector End View (C248)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
CPR22 (WH-BN) |
22 |
|
| 2 |
CPR90 (BU-OG) |
22 |
15A657 |
| 2 |
CPR90 (BU-OG) |
26 |
14401 |
| 3 |
CBP80 (OG-BK) |
14 |
15A657 |
| 3 |
CBP80 (OG-BK) |
14 |
14401 |
| 4 |
GD138 (BK-WH) |
14 |
14401 |
| 4 |
GD138 (BK-WH) |
14 |
15A657 |
| 5 |
VMC05 (VT-OG) |
26 |
early production |
| 6 |
CPR40 (YE-OG) |
22 |
|
| 7 |
CPR31 (VT-BN) |
22 |
|
| 8 |
CPR85 (GN-WH) |
22 |
15A657 |
| 8 |
CPR85 (GN-WH) |
26 |
14401 |
| 9 |
* |
* |
|
| 10 |
* |
* |
|
| 11 |
* |
* |
|
| 12 |
* |
* |
|
| 13 |
CPR86 (GY-BN) |
22 |
15A657 |
| 13 |
CPR86 (GY-BN) |
26 |
14401 |
