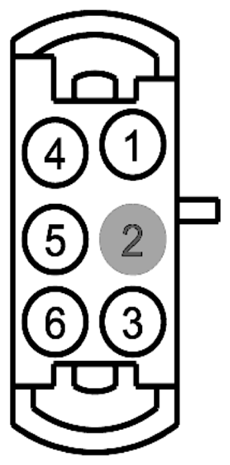

In-Vehicle Temperature Sensor Connector End View (C233)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBP85 (YE) | 22 | FUSE - 85 OR CIRCUIT BREAKER | |
| 2 | * | * | Not Used | |
| 3 | GD133 (BK) | 22 | GROUND - COWL SIDE/PILLAR A LEFT (OBSOLETE) | |
| 3 | RH103 (GY) | 22 | CTRL MOD. - CLIMATE # I.T.S. ASPIRATOR MOTOR - | |
| 4 | VH414 (GN-BU) | 22 | SENSOR - INCAR TEMP. | |
| 5 | VH413 (WH-BU) | 22 | SENSOR - HUMIDITY | |
| 6 | RH105 (GN) | 22 | CTRL MOD. - CLIMATE # SENSOR RETURN 2 |

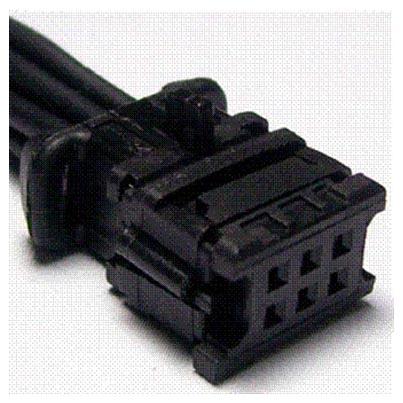

| Available Pigtail Kits | |
|---|---|
| Pigtail Kit Part Number WPT-1334 | Service Part Number: DU2Z-14S411-FA Gauge: 18 Pin material: Tin (greased) Cavities: 6 Vehicle Uses
|
