Generator Connector End View (C102B)

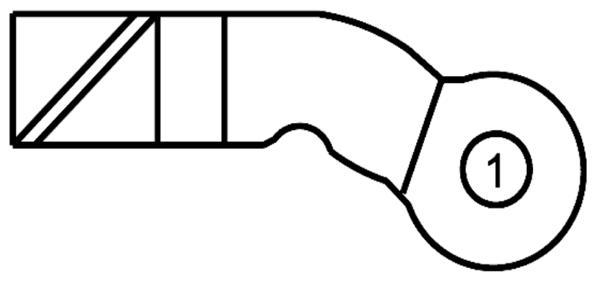

Fig 1: Identifying Generator Connector (C102B)
G09223403Courtesy of FORD MOTOR CO.
Pin Circuit Gauge Circuit Function Qualifier
1 SBF01 (RD) 10 FUSE OR CIRCUIT BREAKER
