Engine Coolant Level Sensor Connector End View (C1061)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | CBB40 (YE-GN) | 20 | FUSE OR CIRCUIT BREAKER | |
| 2 | VDB04 (WH-BU) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH | |
| 3 | VDB05 (WH) | 20 | CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW | |
| 4 | 57 (bk) | 18 | GROUND |
| Available Pigtail Kits | |
|---|---|

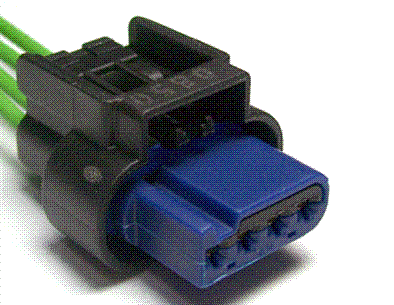

| Pigtail Kit Part Number WPT-1309 | Service Part Number: CU2Z-14S411-AYA Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
| Pigtail Kit Part Number WPT-1773 | Service Part Number: CU2Z-14S411-AYB Gauge: 18 Pin material: Silver Cavities: 4 Vehicle Uses
|
