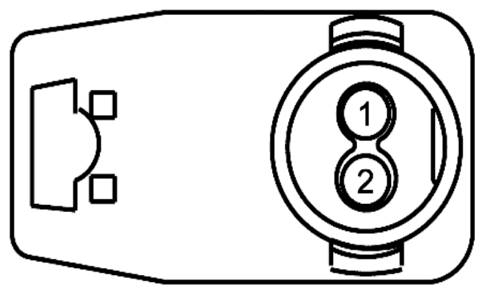

Driver Air Bag Module Connector End View (C216B)

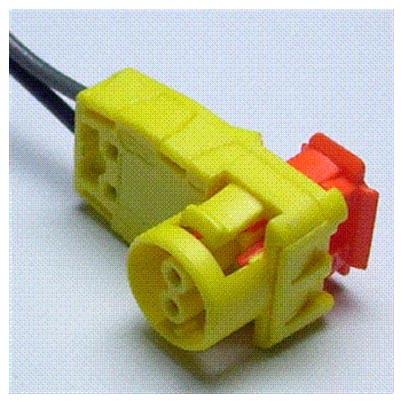

Fig 1: Identifying Driver Air Bag Module Connector (C216B)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (YE)	*	CTRL MOD. - AIR BAG DRIVER 2 SIGNAL
2	* (BU)	*	CTRL MOD. - AIR BAG DRIVER 2 RETURN

Available Pigtail Kits
Pigtail Kit Part Number WPT-1227	Service Part Number: BU2Z-14S411-BKA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Sensor - Side Impact Squib - Airbag (Driver) Squib - Airbag (Passenger)
