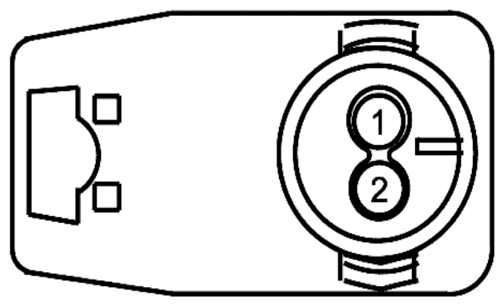

Driver Air Bag Module Connector End View (C216A)

Fig 1: Identifying Driver Air Bag Module Connector (C216A)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Circuit Function	Qualifier
1	* (VT)	*	CTRL MOD. - AIR BAG DRIVER 1 SIGNAL
2	* (GN)	*	CTRL MOD. - AIR BAG DRIVER 1 RETURN

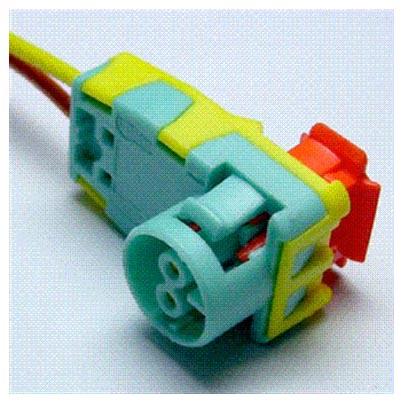

Available Pigtail Kits
Pigtail Kit Part Number WPT-1226	Service Part Number: BU2Z-14S411-BJA Gauge: 20 Pin material: FCI - Airbag Cavities: 2 Vehicle Uses Squib - Airbag (Passenger)
