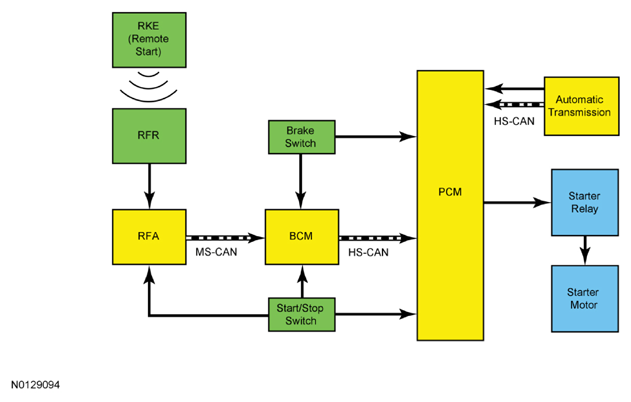

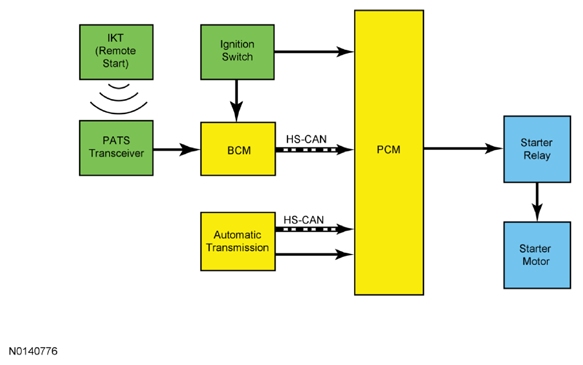

System Diagram

WARNING: This page is about a different car, the 2013 Ford Escape. However, it is still accessible from the selected car via links, so may be relevant.
G08613845


G08613846
