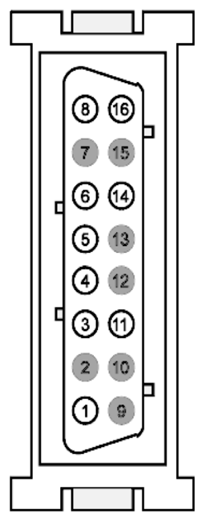

| 1 |
VDB13 (BU-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS HIGH |
|
| 2 |
* |
* |
Not Used |
|
| 3 |
VDB06 (GY-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED HIGH |
|
| 4 |
GD138 (BK-WH) |
22 |
GROUND - COWL SIDE/PILLAR A RIGHT (6L2T) |
|
| 5 |
GD133 (BK) |
18 |
GROUND - COWL SIDE/PILLAR A LEFT (6L2T) |
|
| 6 |
VDB04 (WH-BU) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED HIGH |
|
| 7 |
* |
* |
Not Used |
|
| 8 |
VDB14 (VT-GY) |
22 |
CTRL MOD. - MULTIMEDIA CAN BUS LOW |
|
| 9 |
* |
* |
Not Used |
|
| 10 |
* |
* |
Not Used |
|
| 11 |
VDB07 (VT-OG) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS MEDIUM SPEED LOW |
|
| 12 |
* |
* |
Not Used |
|
| 13 |
* |
* |
Not Used |
|
| 14 |
VDB05 (WH) |
22 |
CONNECTOR - DIAGNOSTIC # CAN BUS HIGH SPEED LOW |
|
| 15 |
* |
* |
Not Used |
|
| 16 |
SBP26 (YE-RD) |
20 |
FUSE OR CIRCUIT BREAKER |
|
