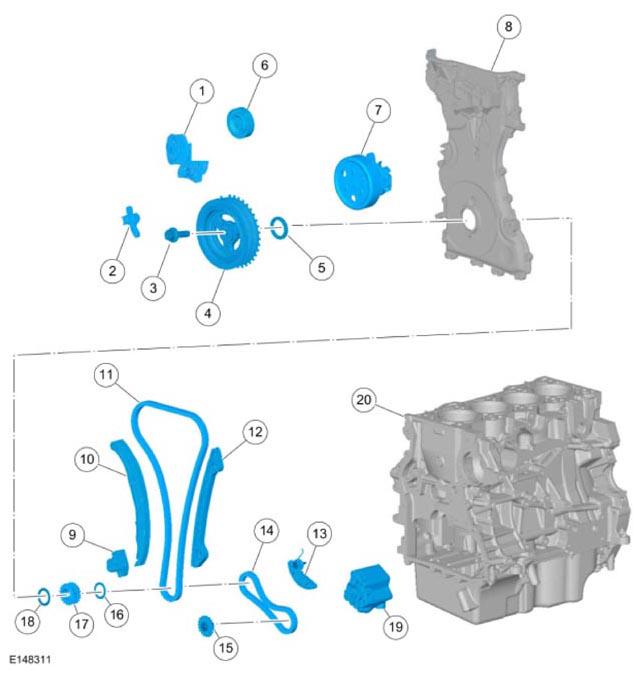

| 1 |
6B209 |
Accessory drive belt tensioner |
| 2 |
6C315 |
Crankshaft Position (CKP) sensor |
| 3 |
6K340 |
Crankshaft pulley bolt |
| 4 |
6316 |
Crankshaft pulley |
| 5 |
6700 |
Crankshaft front seal |
| 6 |
6C348 |
Idler pulley |
| 7 |
8501 |
Coolant pump and pulley |
| 8 |
6019 |
Engine front cover |
| 9 |
6K254 |
Timing chain tensioner |
| 10 |
6K255 |
Timing chain tensioner arm |
| 11 |
6268 |
Timing chain |
| 12 |
6K297 |
Timing chain guide |
| 13 |
6C271 |
Oil pump chain tensioner |
| 14 |
6A895 |
Oil pump chain |
| 15 |
6652 |
Oil pump drive gear |
| 16 |
6378 |
Diamond washer |
| 17 |
6306 |
Crankshaft sprocket |
| 18 |
6378 |
Diamond washer |
| 19 |
6600 |
Oil pump |
| 20 |
6010 |
Cylinder block |
