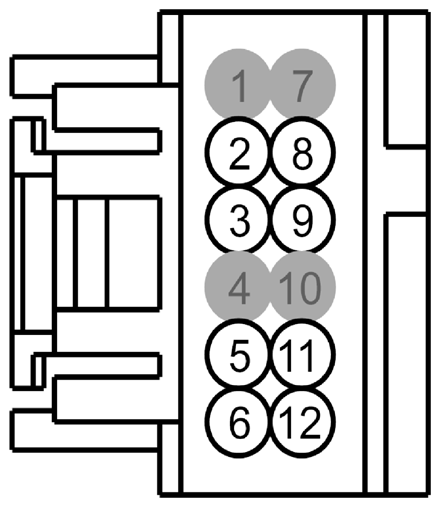

CLOCKSPRING Connector End View (C218A)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | * | * | Not Used | |
| 2 | RHS73 (BN-BU) | 20 | CTRL MOD. - HEATER STEERING WHEEL # SENSOR | with heated steering wheel |
| 3 | VHS73 (GN-BN) | 20 | SENSOR - HEATER STEERING WHEEL | with heated steering wheel |
| 4 | * | * | Not Used | |
| 5 | CR102 (BU) | 20 | CTRL MOD. - AIR BAG DRIVER 2 | |
| 6 | CR101 (VT-BN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 | |
| 7 | * | * | Not Used | |
| 8 | GD115 (BK-GY) | 20 | GROUND - CROSS CAR BEAM # 2ND POINT | |
| 9 | VLN04 (VT-GY) | 20 | CTRL MOD. - IP/SWITCH ILLUMINATION | |
| 10 | * | * | Not Used | |
| 11 | RR102 (WH) | 20 | CTRL MOD. - AIR BAG DRIVER 2 | |
| 12 | RR101 (YE-GN) | 20 | CTRL MOD. - AIR BAG DRIVER 1 |
| Available Pigtail Kits | |
|---|---|

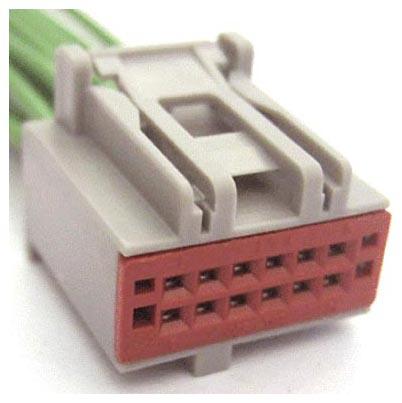

| Pigtail Kit Part Number WPT-949 | Service Part Number: 3U2Z-14S411-BMAB Gauge: 18 Pin material: Silver Cavities: 12 Vehicle Uses
|

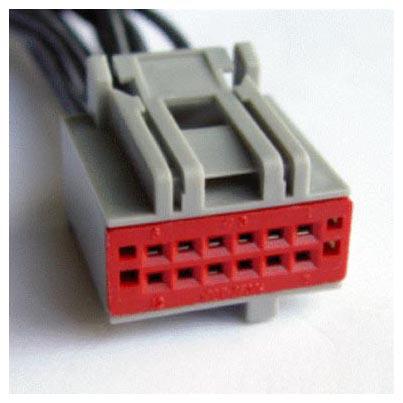

| Pigtail Kit Part Number WPT-760 | Service Part Number: 3U2Z-14S411-BMAA Gauge: 18 Pin material: Tin Cavities: 12 Vehicle Uses
|
