Transmission Range (TR) Sensor: Notes

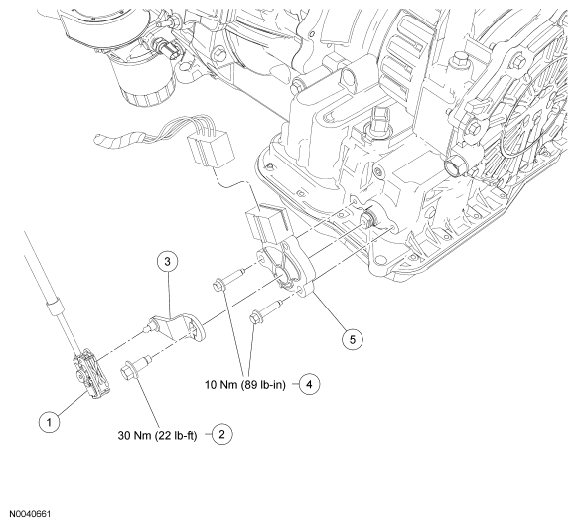

Fig 1: Transmission Range (TR) Sensor Related Replacement Components With Torque Specifications
G06292833Courtesy of FORD MOTOR CO.
Item Part Number Description
1 7E395 Selector lever cable
2 W500221-S437 Manual control lever bolt
3 7A256 Manual control lever
4 W500215-S439 Transmission Range (TR) sensor bolts
5 7A247 TR sensor
