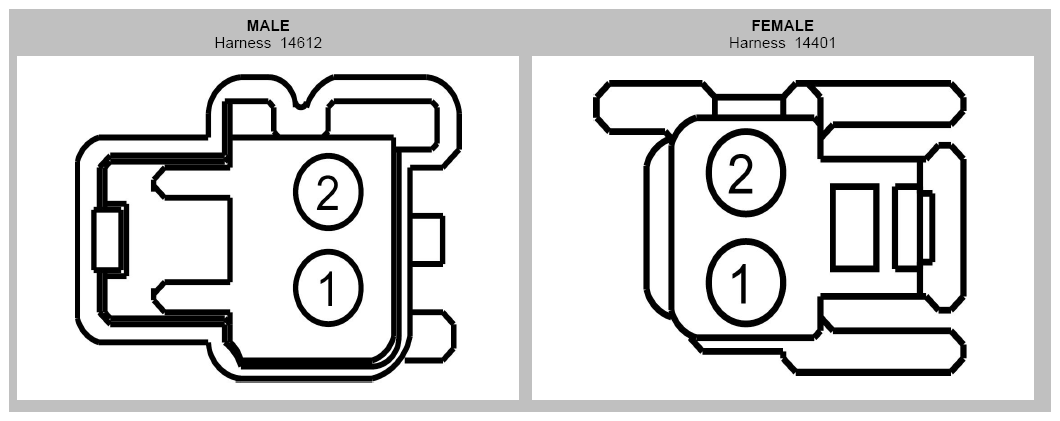

Inline Connector End View (C327)

Fig 1: Identifying Inline Connector (C327)

Courtesy of FORD MOTOR CO.

Pin	Circuit	Gauge	Qualifier
1	30-DA1 (RD)	14	14612
1	30S-FA73 (RD-BU)	14	14401
2	31-FA1 (BK)	14	14612
2	31-FA73 (BK)	14	14401

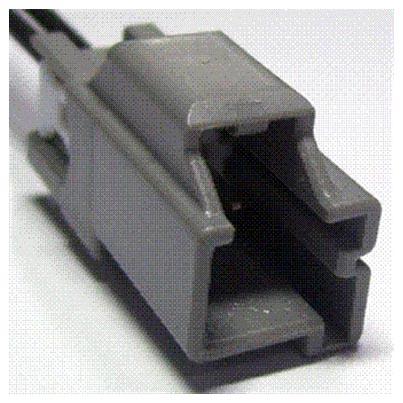

Available Pigtail Kits
Pigtail Kit Part Number WPT-1078	Service Part Number: 3U2Z-14S411-LAB Gauge: 14 Pin material: Tin (greased) Cavities: 2 Vehicle Uses: Connector - Inline Element - Heated Seat Lamp - PRNDL Indicator Speaker - Front Switch - Seat Lumbar
