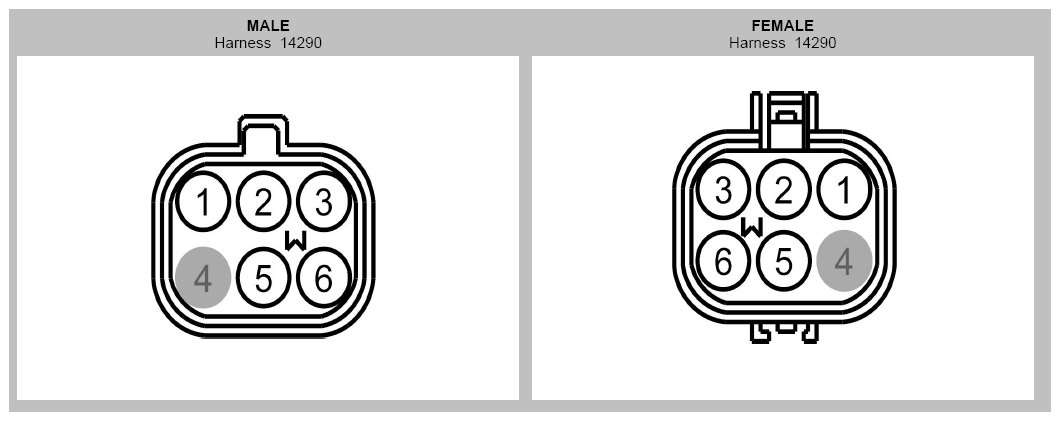

Inline Connector End View (C126)
Courtesy of FORD MOTOR CO.
| Pin |
Circuit |
Gauge |
Qualifier |
| 1 |
30-CF6 (RD) |
16 |
|
| 2 |
15-CF6 (GN-YE) |
20 |
|
| 3 |
4-EC7 (GY-RD) |
20 |
|
| 4 |
* |
* |
14290 |
| 4 |
91-CF29 (BK-WH) |
10 |
14290 |
| 5 |
30-CF13 (RD) |
10 |
|
| 6 |
5-EC7 (BU-RD) |
20 |
|
