In-Dash Computer Junction Box Connector End View (C2364A)

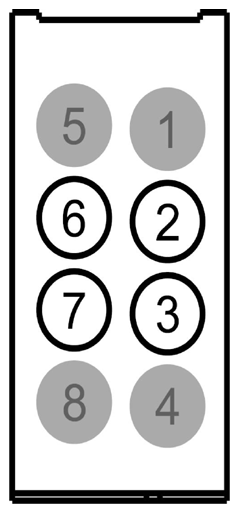

Fig 1: Identifying In-Dash Computer Junction Box Connector (C2364A)
Courtesy of FORD MOTOR CO.
Pin
Circuit
Gauge
Circuit Function
Qualifier
1
*
*
Not Used
2
8-MD17 (WH-RD)
14
RIGHT FRONT ~SPEAKER +
3
8-MD10 (WH-BK)
14
LEFT FRONT ~SPEAKER +
4
*
*
Not Used
5
*
*
Not Used
6
10-MD17 (GY-RD)
14
RIGHT FRONT ~SPEAKER -
7
10-MD10 (GY-BK)
14
LEFT FRONT ~SPEAKER -
8
*
*
Not Used
