Removal and Installation
- If a new HSWM is being installed, connect the scan tool and upload the module configuration information from the HSWM. For additional information on configuration, refer to PMI in MODULE CONFIGURATION SYSTEM .

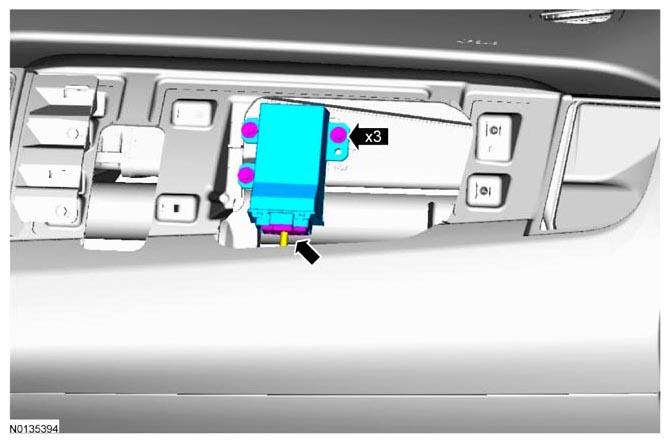

- Remove the RH instrument panel finish panel. Refer to INSTRUMENT PANEL AND CONSOLE .
- To install, reverse the removal procedure.
- If a new HSWM was installed, it must be configured (using vehicle as-built data or module configuration information retrieved earlier in this procedure). For additional information on configuration, refer to PMI in MODULE CONFIGURATION SYSTEM .
