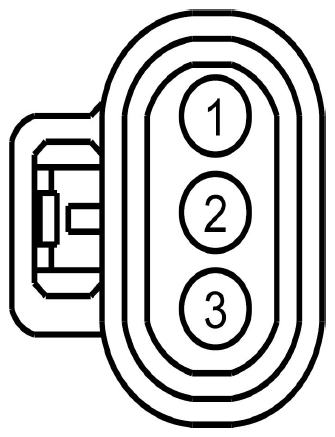

Battery Current Sensor Connector And View (C1646)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | LDC59 (BU-WH) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + | 2.0L |
| 1 | LDC59 (WH-BU) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR + | 3.5L/3.7L |
| 2 | RDC59 (GY-BN) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM SENSOR - | |
| 3 | SDC57 (OG-BU) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR | 3.5L/3.7L |
| 3 | SDC57 (BU-OG) | 20 | CTRL MOD. - BATTERY MONITORING SYSTEM MONITOR | 2.0L |
| Available Pigtail Kits | |

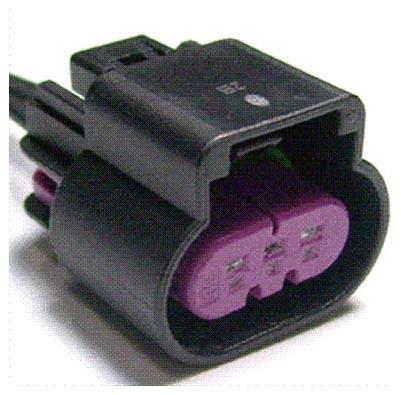

| Pigtail Kit Part Number WPT-1144 | Service Part Number: BU2Z-14S411-EA Gauge: 16 Pin material: Tin (greased) Cavities: 3 Vehicle Uses
|
