Electrical Short Within The Harness

Splice tape removed

  1. Intermittent short

    Splice covered

  2. Wire strand
  3. Splice tape
  4. Harness tape

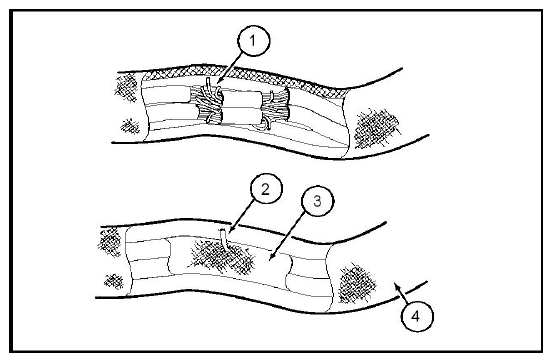

    Fig 1: Identifying Electrical Short Within Harness
    G09128676Courtesy of FORD MOTOR CO.
