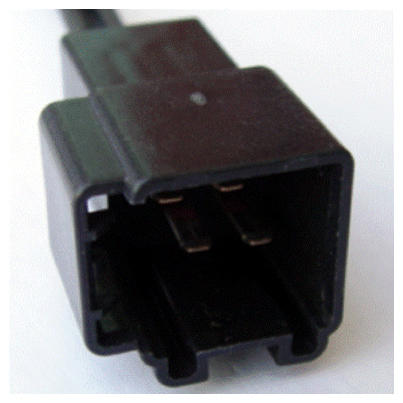

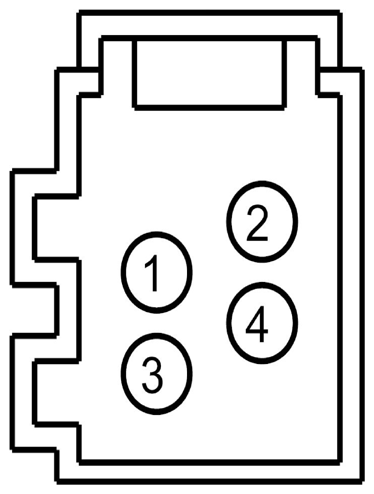

Subwoofer, Left Front Connector End View (C536)
| Pin | Circuit | Gauge | Circuit Function | Qualifier |
|---|---|---|---|---|
| 1 | VME74 (BN) | 18 | SUBWOOFER AMPLIFIER AUDIO OUT, LEFT FRONT + | |
| 2 | RME74 (BU-BN) | 18 | SUBWOOFER AMPLIFIER AUDIO OUT, LEFT FRONT - | |
| 3 | VME75 (GY-YE) | 18 | SUBWOOFER AMPLIFIER AUDIO OUT, LEFT FRONT + | |
| 4 | RME75 (VT-WH) | 18 | SUBWOOFER AMPLIFIER AUDIO OUT, LEFT FRONT - |
| Available Pigtail Kits | |
| Pigtail Kit Part Number WPT-542 | Service Part Number: 3U2Z-14S411-UMA Gauge: 14 Pin material: Tin Cavities: 4 Vehicle Uses
|
