Repair procedures: Inspection

WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the back up lamp switch connector (A).

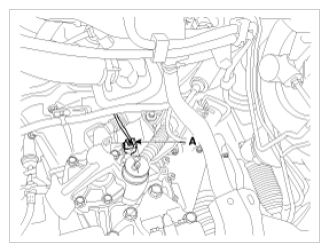

Fig 1: Identifying Back Up Lamp Switch Connector
Courtesy of HYUNDAI MOTOR AMERICA
Check the continuity between no. 1 and 2 terminals of backup lamp switch. When the shift lever is in reverse, there should be continuity.

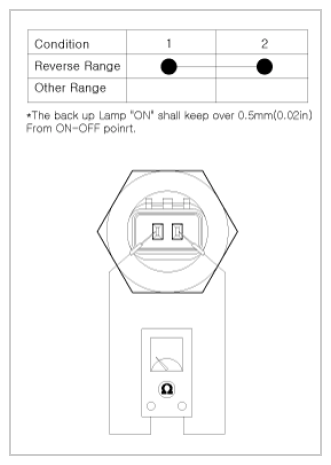

Fig 2: Checking Continuity Between No. 1 And 2 Terminals Of Backup Lamp Switch
Courtesy of HYUNDAI MOTOR AMERICA
