Removal and Installation
WARNING: This page is about a different car, the 2014 Hyundai Elantra GT and 2013 Hyundai Elantra GT. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the battery negative terminal.
- Remove the drive belt.
(Refer to "DRIVE BELT ")

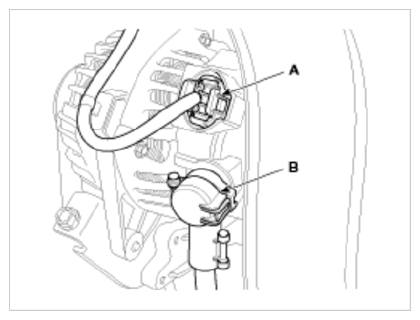

- Disconnect the alternator connector (A) and the cable (B) from alternator "B" terminal.
Tightening torque:
9.8 ~ 14.7 N.m (1.0 ~ 1.5 kgf.m, 7.2 ~ 10.8 lb-ft)

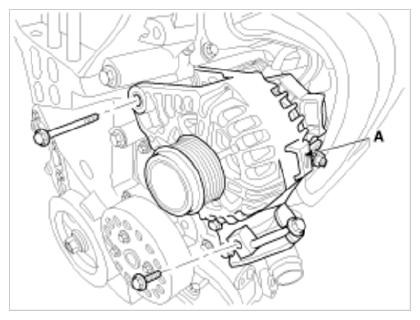

- Pull out the through bolt and then remove the alternator (A).
Tightening torque
M10 bolt:
29.4 ~ 41.2 N.m (3.0 ~ 4.2 kgf.m, 21.7 ~ 30.4 lb-ft)
M10 bolt:
21.6 ~ 32.4 N.m (2.2 ~ 3.3 kgf.m, 15.9 ~ 23.9 lb-ft)
- Install in the reverse order of removal.
