Condenser HVAC: Service and Repair

Condenser - 2.5L Duratec (125kW/170PS)

Removal

NOTE: Removal steps in this procedure may contain installation details.

1. WARNING: Before beginning any service procedure. Failure to follow this instruction may result in serious personal injury.

Refer to: Climate Control System Health and Safety Precautions. Service Precautions

2. Refer to: Air Conditioning (A/C) System Recovery, Evacuation and Charging. Service and Repair
3. Refer to: Jacking and Lifting - Overview. Service and Repair

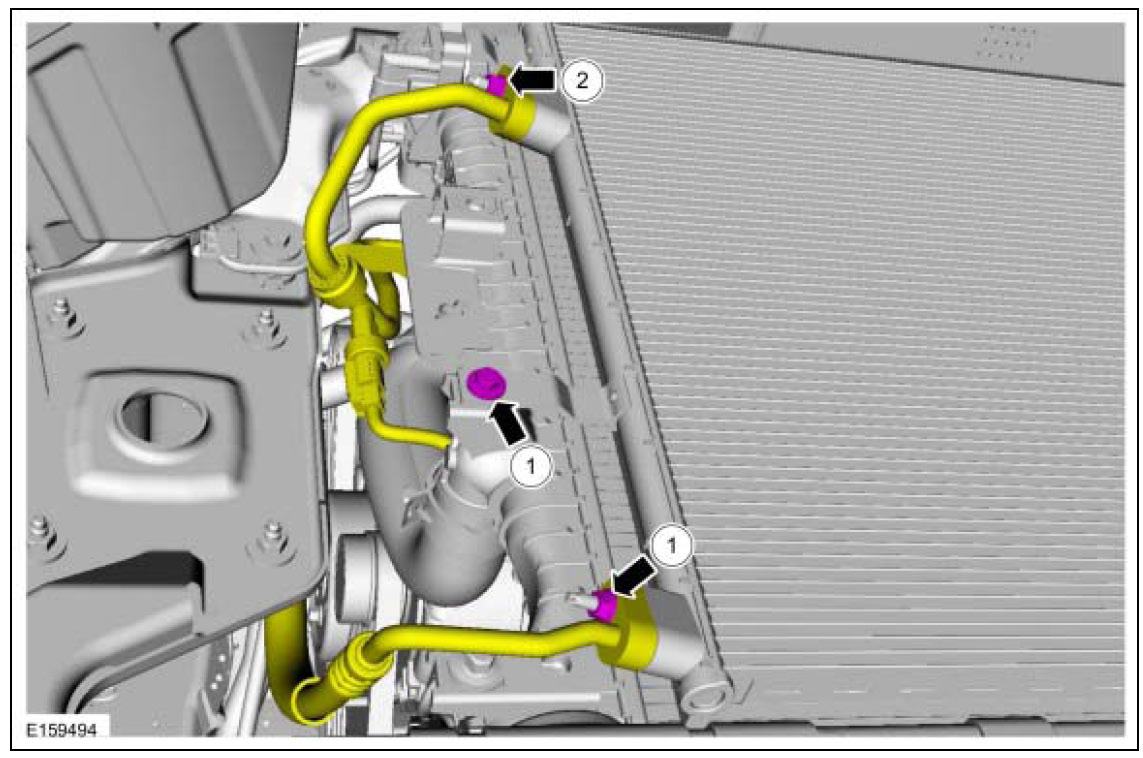

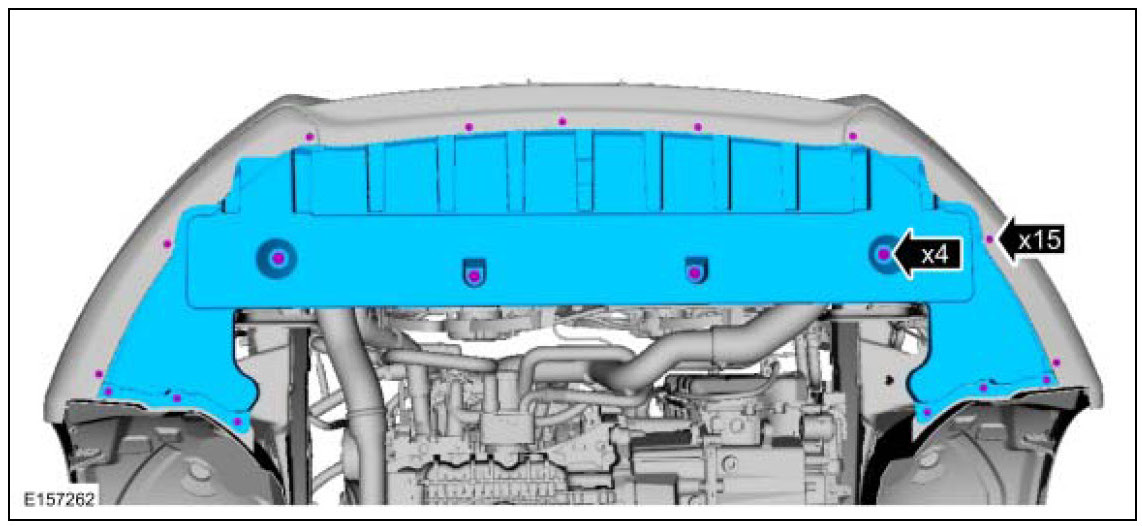

4.

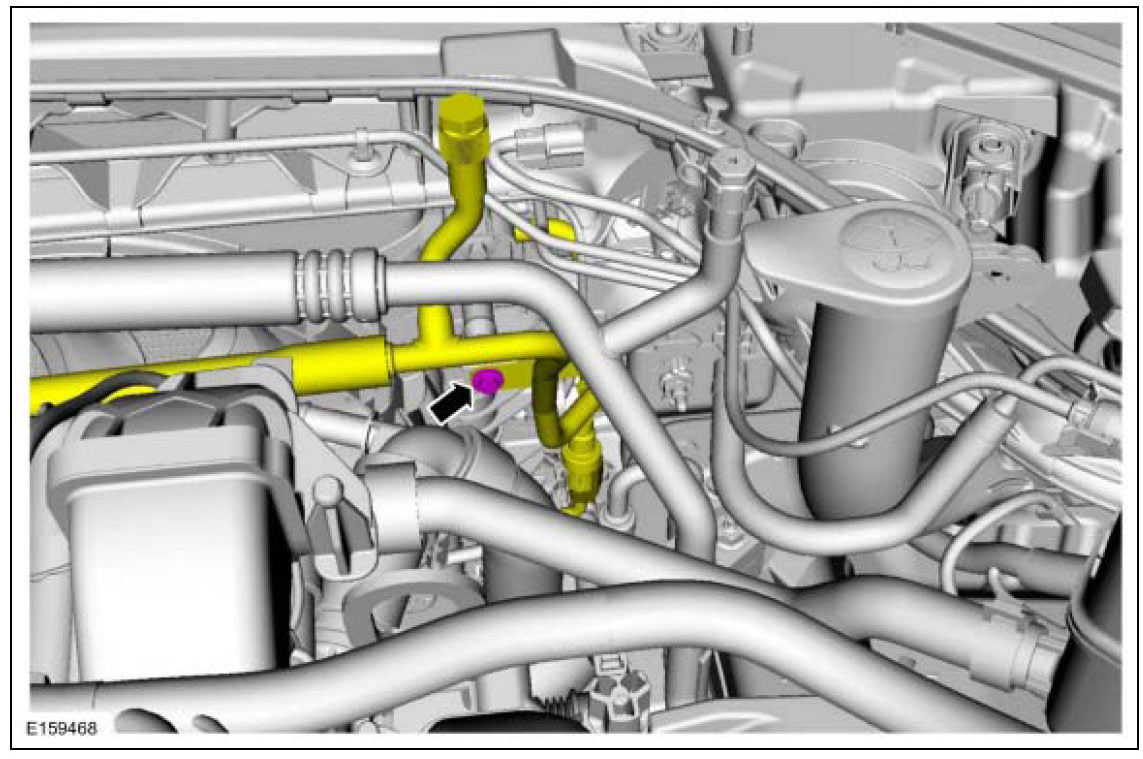

5.
6. Torque: 8 Nm

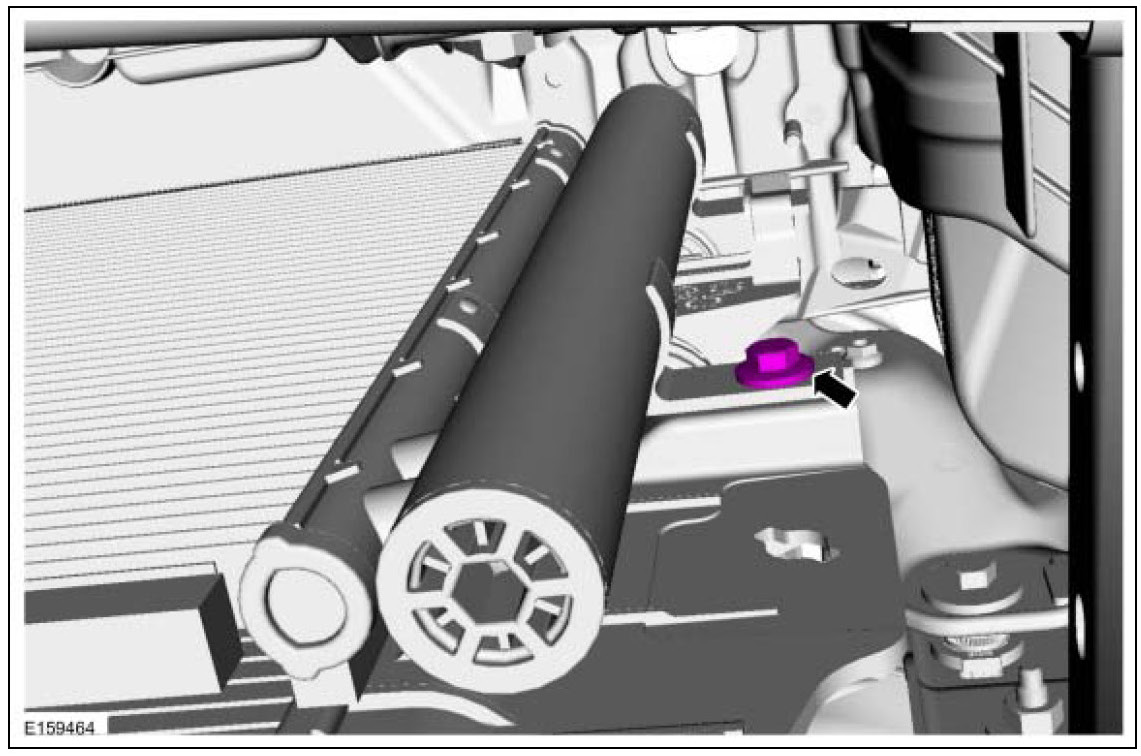

7. Torque:
1. 8 Nm
2. 15 Nm

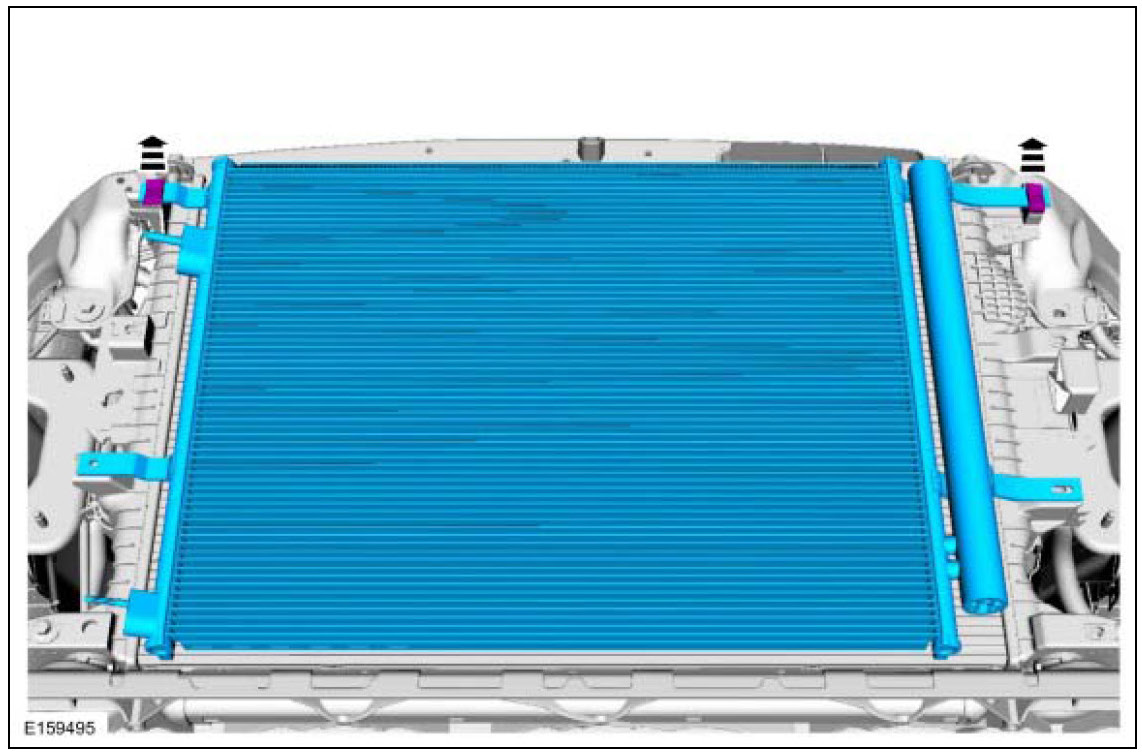

8. Torque: 8 Nm

Installation

1. To install reverse the removal procedure.
2. Refer to: Refrigerant Oil Adding.
