Gearshift Lever: Installation

Install the gearshift lever and the 4 gearshift lever nuts.
- Tighten to 9 Nm (80 lb-in).
Fig 1: Locating Gearshift Lever Nuts
Courtesy of FORD MOTOR CO.
Connect the RCM electrical connector.

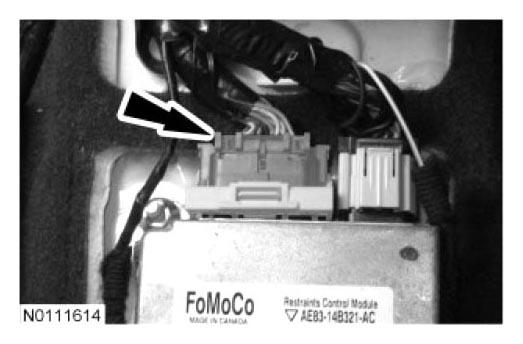

Fig 2: Locating RCM Electrical Connector
Courtesy of FORD MOTOR CO.
Install the wiring harness to the gearshift lever base.

Fig 3: Locating Wiring Harness Of Gearshift Lever Base
Courtesy of FORD MOTOR CO.
Install the gearshift cables.

Fig 4: Locating Gearshift Cables
Courtesy of FORD MOTOR CO.
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Repower the Supplemental Restraint System (SRS). For additional information, refer to SUPPLEMENTAL RESTRAINT SYSTEM .
Adjust the gearshift mechanism. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
