Gearshift Cables: Installation

NOTE: Heater core and evaporator core housing not shown in illustration.

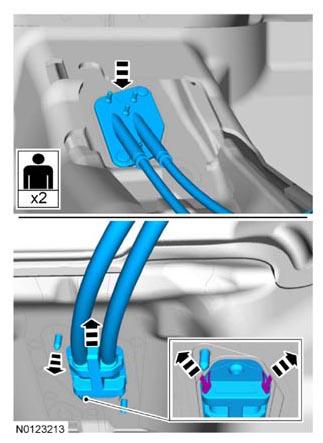

Fig 1: Positioning Gearshift Cables And Gearshift Cables Grommet

Courtesy of FORD MOTOR CO.

Position the gearshift cables and gearshift cables grommet in place.
Install the 2 gearshift cables grommet nuts.
- Tighten to 9 Nm (80 lb-in).

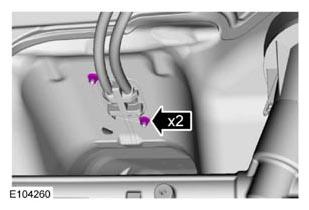

Fig 2: Locating Gearshift Cables Grommet Nuts
Courtesy of FORD MOTOR CO.
Install the exhaust heat shield.
Connect the exhaust hangers.

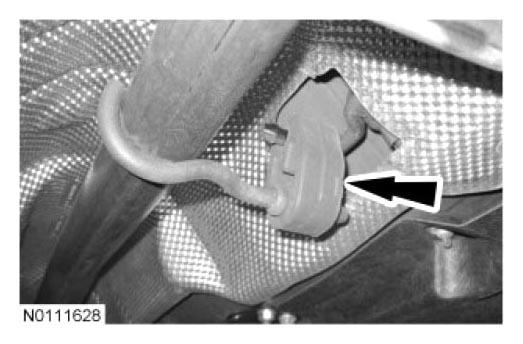

Fig 3: Locating Exhaust Hangers (1 Of 2)
Courtesy of FORD MOTOR CO.

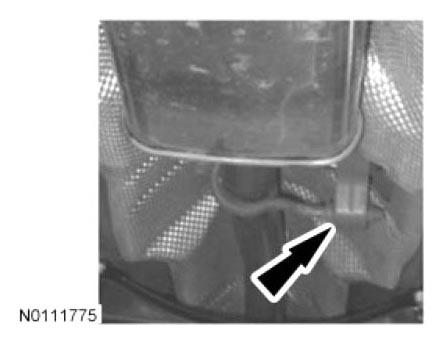

Fig 4: Locating Exhaust Hangers (2 Of 2)
Courtesy of FORD MOTOR CO.
Install the 6 exhaust heat shield fasteners (5 shown in illustration).

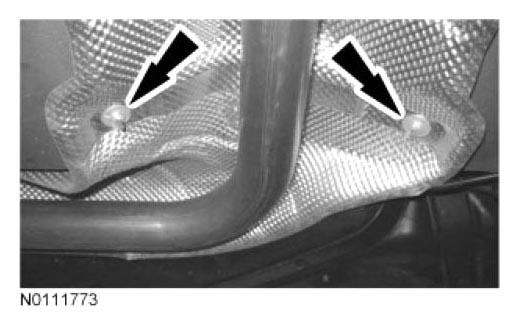

Fig 5: Locating Exhaust Heat Shield Fastener (1 Of 3)
Courtesy of FORD MOTOR CO.

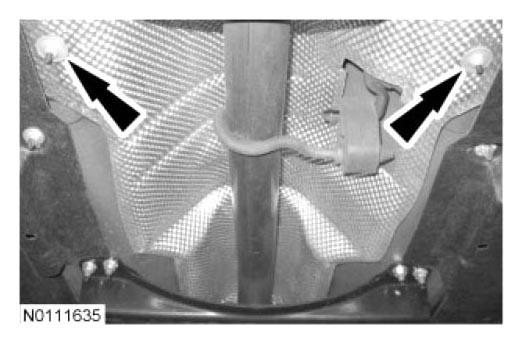

Fig 6: Locating Exhaust Heat Shield Fastener (2 Of 3)
Courtesy of FORD MOTOR CO.

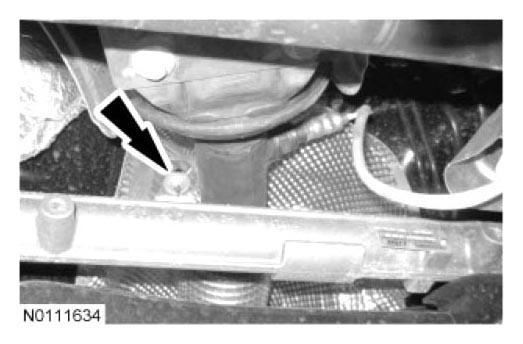

Fig 7: Locating Exhaust Heat Shield Fastener (3 Of 3)
Courtesy of FORD MOTOR CO.
Install the cross brace and the 4 cross brace nuts.
- Tighten to 40 Nm (30 lb-ft).

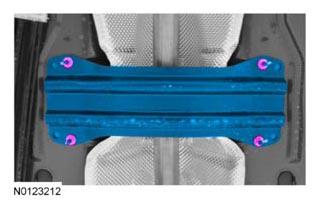

Fig 8: Identifying Cross Brace Nuts
Courtesy of FORD MOTOR CO.
Using a new exhaust flange gasket and 2 new exhaust flange nuts, connect the exhaust flange.
- Tighten to 47 Nm (35 lb-ft).

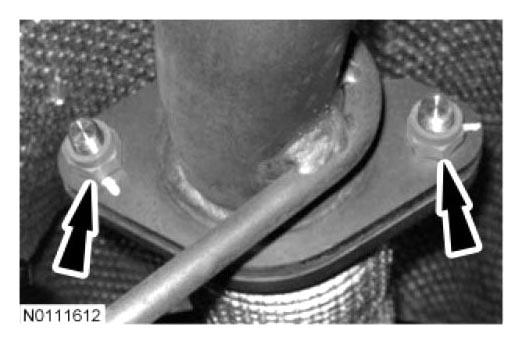

Fig 9: Locating Exhaust Flange Nuts And Exhaust Flange Gasket
Courtesy of FORD MOTOR CO.
Install the gearshift cables.
- Install the gearshift cables by pulling the lower part of the abutment down and installing the gearshift cables onto the gearshift cables bracket.
- Push the gearshift cables onto the transaxle shift control levers.
Fig 10: Locating Gearshift Cables
Courtesy of FORD MOTOR CO.

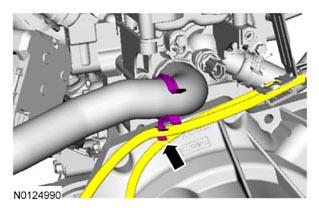

Install the gearshift cable on the gearshift cable clip.

Fig 11: Locating Gearshift Cable Of Gearshift Cable Clip
Courtesy of FORD MOTOR CO.
Install the gearshift cables on the gearshift cables bracket.

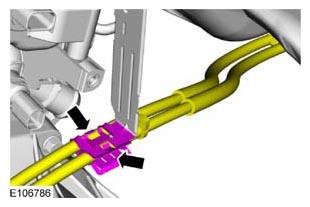

Fig 12: Locating Gearshift Cables Of Gearshift Cables Bracket
Courtesy of FORD MOTOR CO.
Attach the gearshift cables to the gearshift lever.

Fig 13: Locating Gearshift Cables
Courtesy of FORD MOTOR CO.
Install the floor console. For additional information, refer to INSTRUMENT PANEL AND CONSOLE .
Install the Air Cleaner (ACL) assembly. For additional information, refer to INTAKE AIR DISTRIBUTION & FILTERING
Install the battery tray. For additional information, refer to BATTERY, MOUNTING AND CABLES
Adjust the shift and selector cables. For additional information, refer to MANUAL TRANSAXLE/TRANSMISSION AND CLUTCH - GENERAL INFORMATION .
