Transmission Fluid Level Check

MATERIAL SPECIFICATIONS

Item	Specification
Motorcraft® Dual Clutch Transmission Fluid XT-11-QDC	WSS-M2C200-D2

With the vehicle in NEUTRAL, position it on a hoist. For additional information, refer to JACKING & LIFTING .
NOTE: Prior to removal, clean the area around the fill plug.

Remove the fill plug.

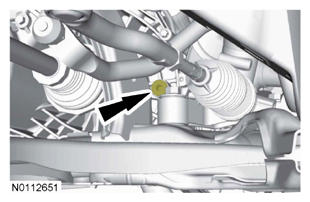

Fig 1: Locating Fill Plug
Courtesy of FORD MOTOR CO.
NOTE: Do not overfill the transaxle. This causes transmission fluid to be forced out of the case.

Using a suitable oil suction gun, fill the transaxle to the correct level with the specified fluid. Add transmission fluid until the oil runs out of the fill port in a continuous stream. The transaxle is full when the oil flow from the fill port has slowed to a broken stream or dripping.

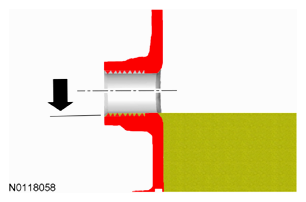

Fig 2: Identifying Transaxle Fluid Level
Courtesy of FORD MOTOR CO.
NOTE: Use a ball head hex socket to tighten the transaxle fill plug.

Install the fill plug.
- Tighten to 43 Nm (32 lb-ft).

  Fig 3: Locating Fill Plug
  Courtesy of FORD MOTOR CO.
