Input Shaft - Inner: Assembly

Inspect the inner input shaft for wear or damage, replace as needed.
Using the special tools and a press, install the inner input shaft radial bearing.

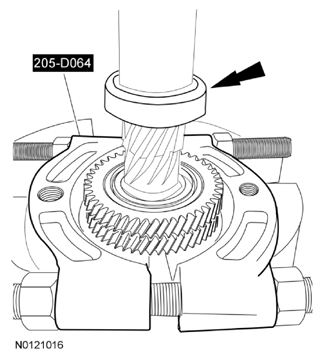

Fig 1: Installing Inner Input Shaft Radial Bearing Using Special Tools And Press
Courtesy of FORD MOTOR CO.
Install the inner input shaft roller bearing.
Install the inner input shaft needle bearing.
Install the inner input shaft needle bearing.
