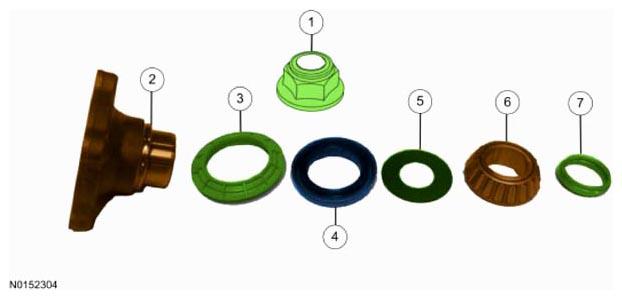

Exploded View
Courtesy of FORD MOTOR CO.
Item
Part Number
Description
1
7275
Pinion flange nut (part of 7275 kit)
2
7B214
Output pinion flange
3
7B214
Pinion flange dust deflector (part of 7B214)
4
7275
Output shaft seal (part of 7275 kit)
5
7H421
Oil slinger
6
7H451
Outer Pinion bearing
7
7275
Collapsible spacer (part of 7275 kit)
