Broken Wire Strands In Harness

  1. Wiring harness tape
  2. Wiring strand
  3. Broken strands intermittent signal
  4. Circuit insulation

Remove the tape and flex/feel each circuit for a reduction in diameter at break.

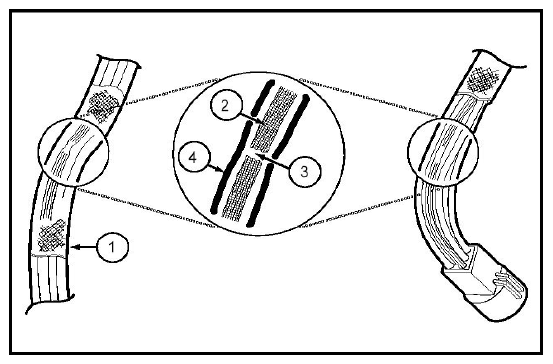

Fig 1: Identifying Broken Wire Strands In Harness
G08748262Courtesy of FORD MOTOR CO.
